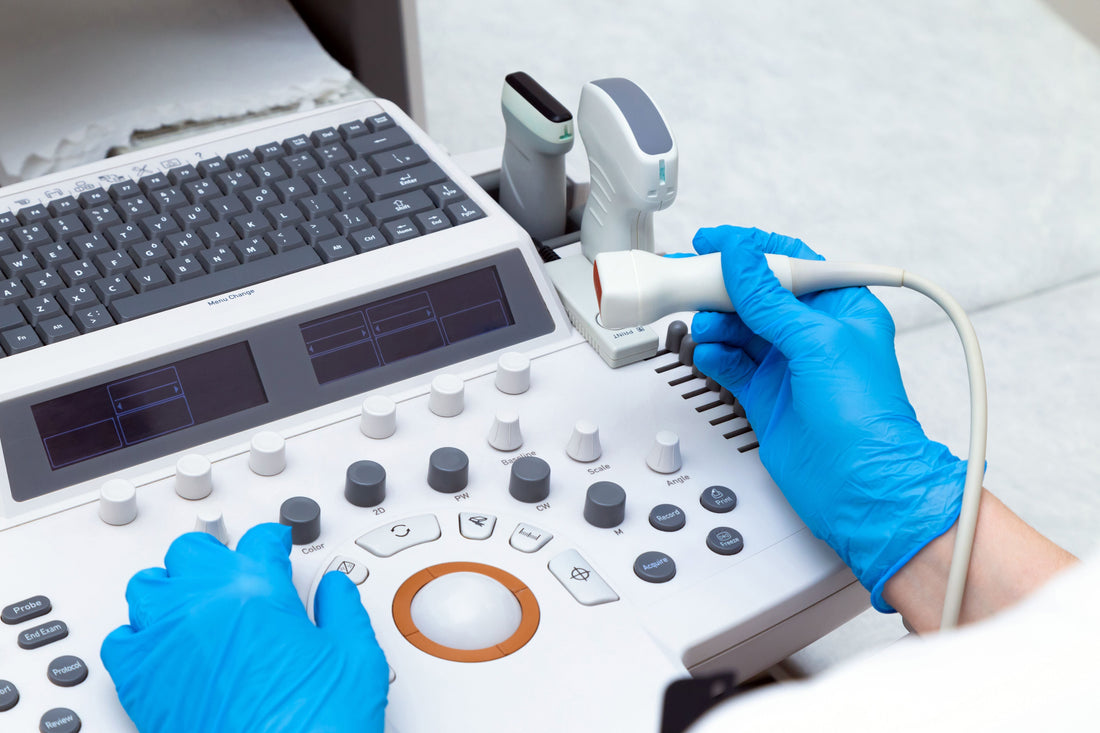

How Does an Ultrasound Machine Work?

Ultrasonography is a non-invasive medical imaging technology that provides real-time images of internal organs required for various diagnostic purposes. High-frequency sound waves bounce off internal structures and generate an imaging model on the screen.

Ultrasound machines can generate 2D, 3D, doppler, or contrast-enhanced images based on the type of the machine you’re using. Here, you will learn about the basic components, the exact working process of Philips Epiq 7C, and the major differences among common ultrasound machines.

Basic Components of an Ultrasound Machine

Transducer

The transducer, also known as the probe, is the basic component of any ultrasound machine. It converts electrical energy into high-frequency sound waves that penetrate the body and reflect as echoes. There are three different types of transducers as linear, curvilinear, and phased array probes.

Linear probes use flat, rectangular-shaped crystals for imaging superficial structures like blood vessels, thyroid, and muscles. However, curvilinear probes use curved arrays of crystals and provide a wide image in contrast to linear probes. These probes are ideal for abdomen and pelvic region ultrasound.

Meanwhile, phased probes are usually flat and use flat crystals just like linear ones. But send focused, directional beams that penetrate deeper inside the body and are ideal for imaging confined cavity spaces live chest cavity.

Pulse generator

The pulse generator facilitates the working of a transducer by creating electrical pulses. These electrical pulses are converted into high-frequency sound waves by transducers that bounce off internal organs and create imaging models. The pulse generator also controls the intensity and frequency of the ultrasound signals.

Scanner

The scanner controls the movement of a transducer. It ensures the transducer is positioned correctly with the right angle. Also, a scanner uses electronic beams to scan different angles and create a full view thus providing the best quality examination.

Processor

The processor collects electrical signals from the transducer and converts them into digital images. The monitor displays the images and allows the examiner to change the position of the transducer accordingly. Thus, it improves the resolution and the clarity of an ultrasound image.

Monitor

Monitor displays the digitally produced images and helps clinicians assess the internal structures of the body. Modern monitors assist in real-time diagnosis and treatment planning by displaying clear, detailed images.

Working Process of Philips Epiq 7C Ultrasound Machine

Philips Epiq 7C is an advanced ultrasound machine designed for high-end imaging and diagnostic purposes. Medical lab technologists use it to diagnose or monitor various medical conditions related to the pregnancy, abdomen, and heart. Here’s the exact step-by-step working process of Philips Epiq 7C.

Transmission

The pulse generator produces high-frequency electrical pulses and sends them to the transducer. The PureWave transducer of Philips Epiq 7C is well-known for its image quality and penetration rate even for complex patients. It converts electrical pulses into sound waves that penetrate deep into the body.

Reflection

The sound waves bounce back after hitting the lining of the internal organs or body cavity. The transducer receives those reflected sound waves as echoes and converts them into electrical signals.

Processing

The transducer sends those electrical signals to the processor. The nSight imaging technology of the processor uses contrast and spatial resolution to analyze the received electrical signals and create high-quality images.

Image Display

The monitor displays high-quality images created by the processor so the examiner can propose the best diagnostic or treatment plan based on the real-time view.

The Shear Wave Elastography (SWE) of Philips Epiq 7C measures tissue stiffness, however, the Anatomical intelligence (AI) facilitates automated image analysis and annotation. Along with the color and spectral Doppler features, the contrast-enhanced technology uses contrast agents to enhance the image quality.

Comparison of Some Ultrasound Machines

Let’s compare GE Logiq E9 R6 2.0, Philips Epiq 7C, GE Vivid T9, and Philips Epiq CVx for better understanding.

Feature	GE Logiq E9 R6 2.0	Philips Epiq 7C	GE Vivid T9	Philips Epiq CVx
Purpose	Radiology and general imaging	Cardiovascular and general imaging	Cardiovascular imaging	Advanced Cardiovascular imaging
Imaging Modes	2D, 3D/4D, doppler, elastography	2D, 3D, 4D, doppler, elastography	2D, doppler, strain imaging	2D, 3D/4D, doppler, strain imaging
Display Technology	High-resolution LCD monitor	High-resolution OLED display	LED monitor	OLED PureWave technology
Transducer Options	Wide range, including convex, linear, and 4D	Variety of PureWave transducers	Specialized for cardiac transducers	Specialized transducers for cardiac imaging
Key Technology	XDclear imaging, volume navigation	PureWave crystal technology, nSIGHT imaging	cSound beamforming	AI-enhanced imaging for cardiac diagnosis
Portability	Compact with a cart-based system	Cart-based system	Portable	Cart-based system
Advanced Features	Fusion imaging, ShearWave elastography	Anatomical intelligence for deeper insight	Speckle reduction imaging, AutoEF	AI-based anatomical modeling
User Interface	Touchscreen and keyboard	Touchscreen and intuitive interface	User-friendly with quick access controls	Advanced AI interface for precision
Ideal For	General radiology, OB/GYN, and shared services	Versatile applications, especially in cardiac imaging	Cardiology-focused imaging	High-end cardiac imaging, and diagnosis

Conclusion

Ultrasound machines process electrical signals through a series of pathways to generate images. With excellent and innovative features, high-quality images help clinicians to proceed with a better medical plan. Ultrasonography with future developments in ultrasound technology  has an important role in medical treatment.
