How Does a Handheld Doppler Work?
It’s a straightforward device. The main purpose of use is to have a portable, hand-carry tool for accurate and timely check-ups. It can check your heart rate and blood flow rate. And to check that, it uses sound waves.
When you place it on skin and turn it on, it sends out high-frequency sound waves. These waves travel through the skin tissues to reach the blood vessels or the heart. The sound waves hit the moving blood cells or the beating heart and bounce back to the device, much like an echo. The Doppler then measures the sound waves that return.
The waves change as they bounce back, giving the device information about how fast the blood is flowing or how fast the heart is beating. This information is also converted into sounds that doctors can hear. For example, you might hear a little ‘whoosh-whoosh’ sound when monitoring a fetal heartbeat.
It has a small screen that shows the heart rate or blood flow speed in numbers, making it even easier to read results. In short, the Hand held Doppler uses sound waves to listen to what’s happening inside the body, with quick and accurate results, which makes it a doctor's favorite.
Types of Handheld Dopplers
Basically, there are two main types of Handheld medical doppler:
Continuous Wave (CW) Doppler
This type of Doppler sends sound waves all the time without stopping. They’re great for checking fast-moving blood, like flow in your heart or big arteries. Doctors often use them to see how well blood is moving through your heart. If not, it can help detect blockage or clots.
Pulsed Wave (PW) Doppler
These Dopplers send sound waves in short pulses. They focus on a more specific spot inside the body. Docs use it to see how the blood is moving in that exact area. They’re best for checking blood flow in your arms, legs, or when monitoring a fetal heartbeat.
Key Features of Portable Doppler
Here’s what makes this tool a must-have in every medical setting:
- Compact Design: It’s small enough to fit right into your hands
- Portable: You can carry it anywhere in the hospital, from one department to another.
- Highly Sensitive: The Doppler can catch even the faintest sounds of heartbeats or blood flow, so you won’t miss a thing.
- Clear Sound: It gives crisp and clear audio, making it easy to hear exactly what’s happening inside the body.

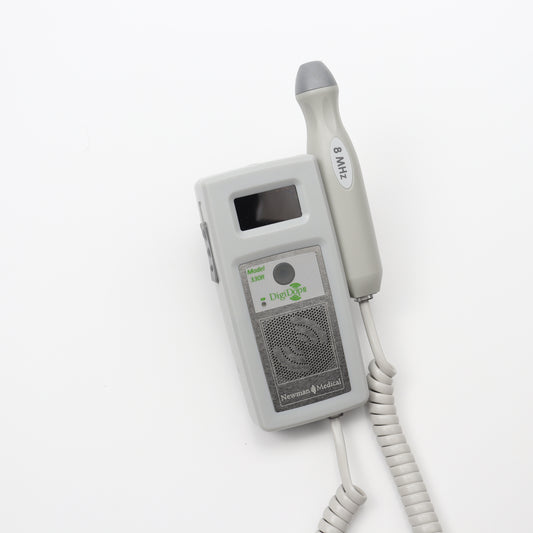

- Simple Display: Comes with a screen on top that shows the results in clear numbers (as can be seen in the picture above).
- Quick Results: It provides feedback right away, helping you make decisions when it really counts.
- Long Battery Life: You’d never have to worry about dying batteries again thanks to its long-lasting power.
- Easy to Use: The controls are straightforward, so anyone can pick it up and use it without needing a lot of training.
- On-spot Accuracy: Gives quick and accurate results, so doctors can make timely calls.
Specifications
The Handheld Doppler machine comes with the following specs:
Dimensions and Weight
- Height: 140 mm (5.5”)
Width: 75 mm (3.0”) - Depth: 33 mm (1.2”)
- Weight: 310 gms (11oz) (including one probe and battery)
Frequency Range
- 2 MHz to 10 MHz (depending on probe used)
Battery life:
- Up to 14-20 hours of continuous use on full charge
Charging time:
- Typically takes 2-4 hours to charge fully
Auto shut-off:
- 3 minutes - standby
- 10 minutes - unconditional
SD card slot:

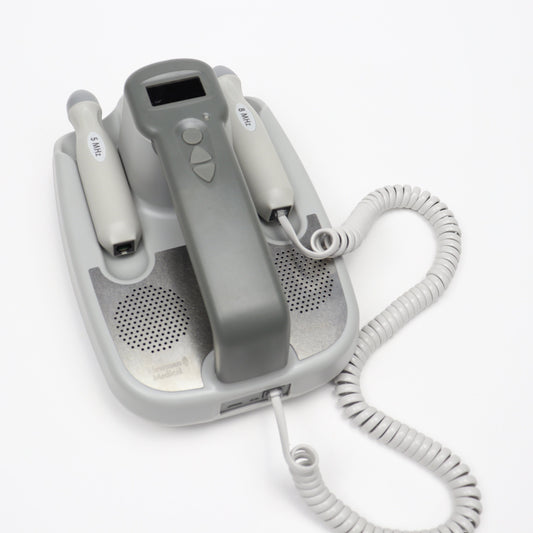

Probe type:
- Interchangeable
- Vascular probe
- Obstetrics probe
FHR performance:
- Standard mode
- Smoothed mode
- Manual mode
Water resistance:
- Some models may have water-resistant probes
- Best for use in general ward (routine check-ups)
Data Output:
Operating Temperature
- Generally operates within 50°F to 104°F (10°C to 40°C).
Storage Temperature
- Can be stored safely in temperatures ranging from -4°F to 140°F (-20°C to 60°C).
Where are Handheld Dopplers used?
Hand held Dopplers are incredibly useful devices that play a key role in two main medical departments. Here’s how:
Hand Held Doppler Vascular Applications
- It provides real-time, ongoing feedback on blood flow, especially in high-velocity areas.
- For example: the heart and large arteries.
- Ideal for detecting fast-moving blood. Helps to identify issues such as blockages or clots easily.
- Continuous wave allows for straightforward operation without needing to focus on a specific depth or area.
- Mostly used in cardiology departments.
Fetal Monitoring Applications
- It helps to focus on a specific area within the body.
- Best for precise monitoring of blood flow in particular vessels or regions.
- Easily gives accurate results for fetal monitoring.
- It can also be used in checking blood flow in arms and legs.
- Mostly used in OB/GYN departments, general wards, and at clinics for routine check-ups.
Case Study
A busy urban medical care center needed a reliable and portable device to monitor fetal heart rates in their obstetrics department. The staff had been using older Doppler models that were bulky and sometimes (most times) inaccurate—leading to delays in results and patient care.
Challenge
The hospital faced several issues with their existing Dopplers. There were frequent maintenance problems, unclear audio output, and thanks to the size of the machines, the mobility was limited. This wasn’t just stressful for the patients, but the staff too, especially during emergency situations.
Solution
The hospital decided to switch to the new Hand Held Doppler, with better sensitivity and clear sound quality. This new device was lightweight and portable, so mobility wasn’t an issue anymore. It could be used in various locations within the hospital, from the ER to the maternity ward.
Results
Just by changing one device, the hospital improved the following:
- Accuracy: The new Doppler gave clear and accurate heart rate readings, which helped the doctors make faster decisions during labor.
- Efficiency: With its long battery life and easy-to-use design, nurses could monitor patients more effectively without worrying about device downtime.
- Patient care: Patients now felt more at ease knowing their health was being closely monitored with the latest technology.
FAQs
Where can I buy Doppler Monitor?
You can buy a Doppler monitor from Heart Medical. We offer a range of suitable options for your needs.
What is surgical Doppler?
It’s a type of Doppler used during surgery to monitor blood flow in real-time, helping surgeons ensure that blood is flowing properly to tissues.
Are handheld fetal Dopplers safe?
Yes, they’re generally considered safe. They are designed to monitor a baby’s heartbeat during pregnancy but they should be used according to the instructions to ensure safety.
How can I use the Hand held Doppler?
First, turn it on and place the probe on the area you want to check. Adjust the position until you hear the heartbeat or blood flow. Follow the user manual for specific instructions.
What is the difference between a handheld doppler and ultrasound?
A doppler focuses on detecting and listening to blood flow or heartbeat using sound waves. While an ultrasound creates detailed images of internal organs and structures using the same sound waves.
