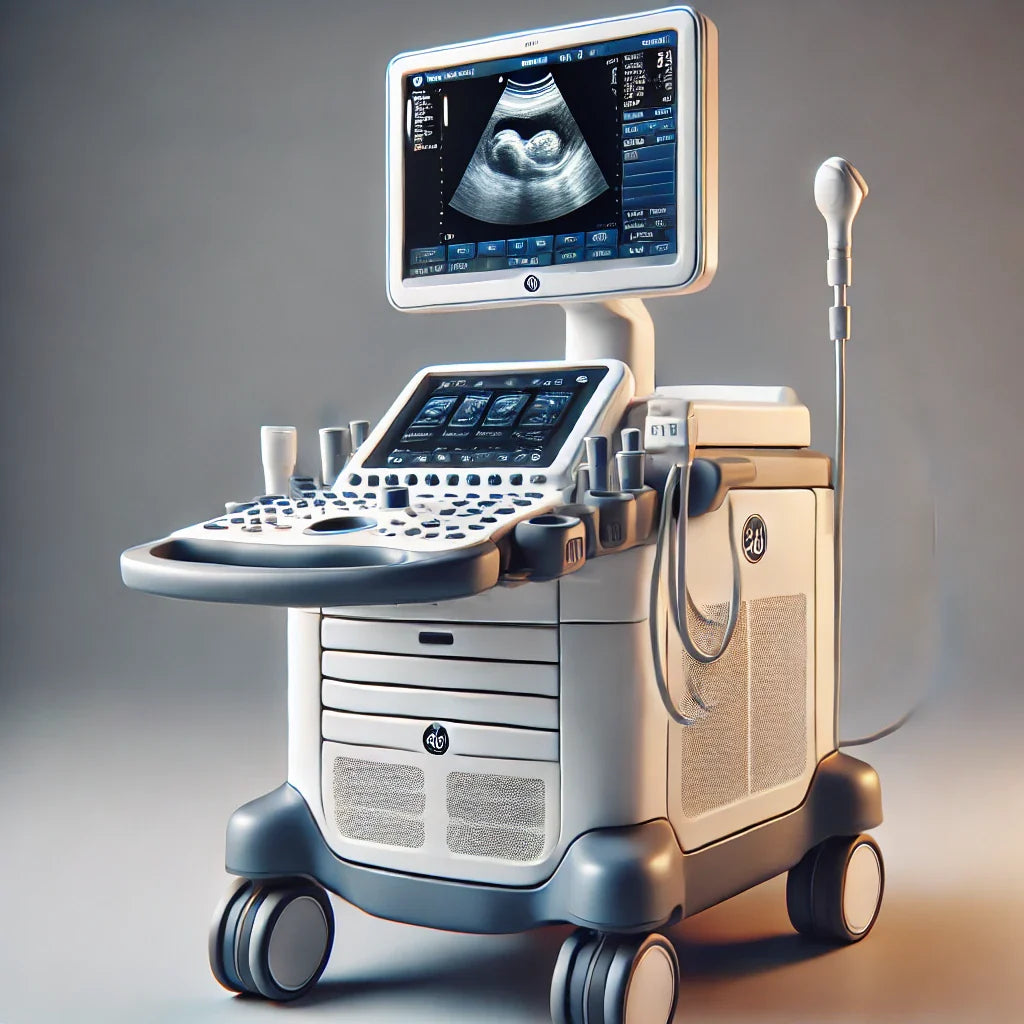

Step-by-Step Guide of GE Logiq E9 Ultrasound Machine

The GE Logiq E9 is an advanced ultrasound machine designed to provide clear images and accurate results. It features XDClear technology for better image quality, an ergonomic design for ease of use, and versatile functions for many medical fields like cardiology, OB/GYN, and musculoskeletal care. Its customizable settings and regular updates make it a reliable choice for quick and precise diagnostics.

This guide offers simple, step-by-step instructions to help you set up and use the GE Logiq E9 safely and effectively. Following these steps will ensure the machine works at its best.

Technical Specifications Table

Feature	Details
Display	23" LED touchscreen display
Monitor Translation	350mm (13.7 in.) horizontal; 120mm (4.7 in.) vertical; 90-degree swivel
Dimensions	53" x 29" x 51"
Touchscreen	10.4"
Hard Disk	500 GB
Active Probes	4
Export Options	AVI, DICOM, JPG, RAW, USB, WMV
Weight	135 kg (297 lb)
PEG, WMV, & AVI	Yes
USB	Yes
Imaging Modes	2D, 3D/4D
USB Ports	4
Power (USA)	100-240V, 50/60 Hz

Setting Up the GE Logiq E9

Learn how to prepare and assemble the GE Logiq E9 ultrasound machine step by step to ensure it works efficiently and fits your clinical needs.

1. Unpacking and Initial Inspection

• Unpack the Device: Carefully remove all components from the packaging. Inspect each component for visible signs of damage during transit.
• Save Packaging: Retain all packing materials in case they are needed for future transport or storage.

2. Preparing the Setup Location

• Environmental Conditions:
• Store the device in a temperature-controlled environment as outlined in the manual.
• Maintain stable conditions to avoid operational issues.
• Space Requirements:
• Place the unit on a stable, flat surface with adequate clearance for ventilation to prevent overheating.

3. Assembling the Unit

• Keyboard and Console Setup:
• Adjust the floating keyboard and LCD monitor to a comfortable working height.
• Lock all adjustments securely before use.
• Probe Attachment:
• Inspect probes for dust or damage before attaching them securely.
• Follow the instructions for the locking mechanism to avoid damaging the connectors.

4. Electrical Setup

• Voltage Settings:
• Confirm that the voltage requirements of the unit match the power source to prevent electrical damage.
• Power Connection:
• Use a hospital-grade outlet and connect the provided power cable.
• Turn the main circuit breaker on the rear panel to the "ON" position.

5. Functional Checks

• System Power-On:
• Press the power button on the operator panel and wait for the system to boot up.
• Probe Functionality:
• Verify that all attached probes are recognized and fully operational.
• Monitor Adjustment:
• Adjust the LCD monitor for optimal viewing during operation.
• Calibration Checks:
• Perform basic calibration using pre-installed test routines to verify accuracy and image quality.

Using the GE Logiq E9 Ultrasound Machine

Discover how to operate the GE Logiq E9 R6 2.0 with ease, from configuring settings to performing advanced imaging and saving results.

1. System Configuration

• User Preferences:
• Set up user accounts and preferences using the menu path Utility > Admin > Users.
• Software Activation:
• Activate necessary software options by entering the software option key in Utility > Admin > System Admin.

2. Imaging Procedures

• Select Imaging Mode:
• Navigate through the touch panel to select the desired imaging mode, such as B-Mode or Color Doppler, based on clinical needs.
• Adjust Imaging Settings:
• Optimize parameters like gain, depth, and TGC (Time Gain Compensation) using the control panel.
• Advanced Features:
• Use advanced imaging modes such as 3D/4D imaging and Volume Navigation for specialized diagnostics.
• Save Images:
• Capture and save images or cine loops using the appropriate buttons or touch panel options. Add annotations if required.

3. Shutdown Procedure

• Safe Power-Down:
• Use the shutdown option on the operator panel to initiate a safe system shutdown.
• Wait for the system to display "Shutdown in Progress" and ensure the process completes before switching off the main circuit breaker.

Maintenance Tips

Daily Full Shutdown

• Perform a complete system shutdown at least once every 24 hours to maintain performance and stability.

Regular Cleaning

• Clean transducers and machine surfaces regularly using approved disinfectants to ensure hygiene and functionality.

Preventive Maintenance

• Inspect and clean air filters to prevent overheating.
• Check the trackball, function keys, and control panel for wear and ensure smooth operation.

Conclusion

The GE Logiq E9 ultrasound machine is a powerful tool designed to deliver accurate and efficient imaging for a wide range of medical applications.

Following the setup and usage steps carefully, healthcare professionals can ensure optimal performance and reliable diagnostics.

Regular maintenance, proper handling of probes, and adherence to safety guidelines will keep the machine functioning at its best for years to come. With its advanced features and user-friendly design, the GE Logiq E9 remains a trusted choice for improving patient care and outcomes.
