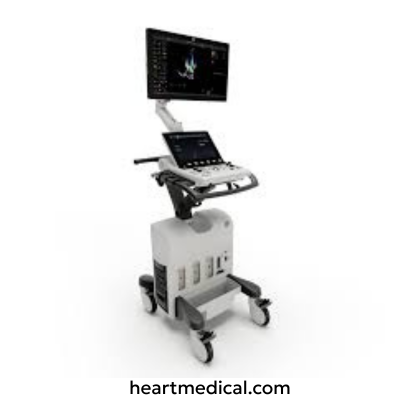

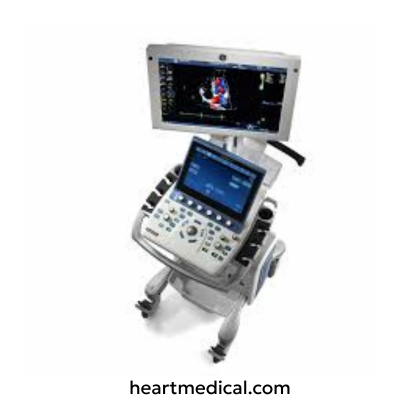

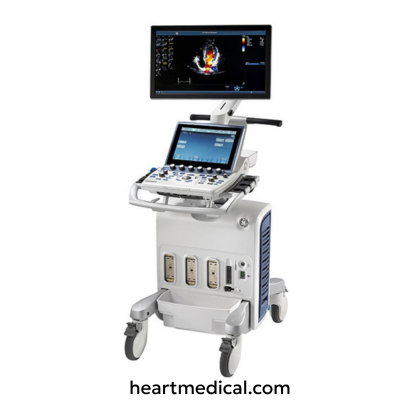

GE Vivid S70N Ultrasound Machine - FR091521 REV1

Description

Advanced cardiovascular imaging with compact performance and cSound technology

The GE Vivid S70N is a sophisticated cardiovascular ultrasound system built for clinicians who demand high-quality imaging in a compact, affordable platform. Equipped with GE’s cSound architecture and advanced imaging capabilities, the Vivid S70N delivers clear, consistent visuals across a wide range of cardiac and vascular applications. It also supports limited shared-service use, including abdominal, small parts, and stress echo imaging.

At the core of the Vivid S70N lies the cSound architecture, GE’s powerful software-based beamforming platform typically found in higher-end E-series Vivid systems. Combined with single-crystal transducer technology, this enables enhanced image resolution, deeper penetration, and improved frame rates, even in complex diagnostic scenarios.

Designed with workflow efficiency in mind, the Vivid S70N features a 19-inch HD LCD monitor and a 12-inch wide touch panel for quick access to imaging controls. Its compact footprint, ergonomic design, and optional battery backup make it an ideal solution for mobile imaging services or space-limited environments.

Vivid S70N includes comprehensive software packages such as Q-Analysis, Strain and Strain Rate Imaging, IMT, and B-flow for detailed vascular and cardiac analysis. The system also supports 4D Mitral Valve assessment and Z-score analysis for pediatric applications.

GE’s EchoPAC™ integration ensures seamless post-processing and reporting, while the Insite™ Express Connection enables remote service and training. Whether used in hospitals, clinics, or specialty cardiology practices, the Vivid S70N strikes a balance between power and portability.

Key Features

1. Imaging & Performance

• cSound Architecture – Delivers high processing power and uniform image acquisition for consistent, reproducible imaging.
• Single-Crystal Probe Compatibility – Enhances resolution and penetration, even in technically difficult patients.
• 4D TEE & 4D Mitral Valve Assessment – Enables advanced cardiac visualization (mitral assessment on stored data only).
• Strain & Strain Rate Imaging – Assesses myocardial function and deformation for accurate clinical evaluations.
• Tissue Synchronization Imaging (TSI) – Synchronizes tissue motion for advanced cardiac functional analysis.
• Multiple Imaging Modes – Includes 2D, CW/PW Doppler, M-Mode, B-Flow, Tissue Doppler, and IMT measurements.

2. User Interface & Ergonomics

• 19" High-Definition Monitor – Wide HD LCD screen provides crystal-clear visualization and wide viewing angles.
• 12” Multi-Touch Touchscreen – High-resolution control panel for streamlined navigation and customization.
• Compact & Lightweight Design – Ideal for mobile use with integrated battery backup for uninterrupted operation.
• Modern Ergonomics – Adjustable touchscreen, alphanumeric keyboard, and user-friendly controls reduce operator fatigue.

3. Advanced Automation & AI Tools

• Auto EF (Automated Ejection Fraction) – Rapid EF measurements using speckle-tracking technology.
• Automated Function Imaging (AFI) – Quantifies global and regional myocardial strain.
• Advanced Q-Analysis Package – Enables detailed analysis of tissue velocities, deformation, and contrast studies.
• Z-Scores – Pediatric and adult echocardiographic measurements standardized to normal ranges.
• Smart Workflow – Reduces keystrokes and enhances efficiency through intelligent automation.

4. Connectivity & Data Management

• EchoPAC™ Compatibility – Facilitates offline post-processing, quantification, and reporting.
• Onboard Archive & Patient Management – Stores images, loops, measurements, and full reports for easy recall.
• DICOM® Connectivity – Supports DICOM-SR, PACS integration, and secure information exchange.
• Insite™ Express Connection (ExC) – Enables remote service, diagnostics, and training in real time.

5. Design & Portability

• Battery Backup – Allows quick relocation without shutting down the system.
• Compact Footprint – Saves space while offering full-featured performance.
• Built for Durability – Engineered to withstand demanding clinical environments for long-term reliability.

Technical Specifications

1. System Architecture & Processing

• Operating System: Windows® 10
• Image Processing Technology: cSound™ Beamformer, True Scan Raw Data
• Digital Beamformer: Up to 1,000,000 digital channels
• Dynamic Range Adjustment: Continuous dynamic receive focus and aperture
• Acoustic Frame Rate: Adjustable frame rate exceeding 1,500 fps (probe dependent)
• Processing Power: AI-powered cSound™ for optimized image quality and precision


2. Dimensions & Weight

• Width: 533 mm (21.0 in)
• Depth: 762 mm (30.0 in)
• Height: 1524 mm (60.0 in)
• Weight: 73 kg (161 lbs)


3. Power & Electrical Specifications

• Input Voltage: 100-240V AC, 50/60 Hz
• Power Consumption: 300 VA maximum (with peripherals connected)
• Cooling System: Integrated airflow with removable air filters


4. Display & Imaging Interface

• Monitor: 19" Widescreen High-Definition LCD, 1680x1050 resolution
• Monitor Adjustments: +25° to -90° vertical tilt, 325 mm horizontal movement, 150 mm vertical height adjustment
• Touchscreen Control: 12" ultra-high-resolution multi-touch LCD

 5. User Interface & Control

• Keyboard: Ergonomic design with full-size alphanumeric layout
• Trackball & Touch Controls: Enables precise annotation, image navigation, and measurement adjustments
• TGC Controls: Six TGC (Time Gain Compensation) pods for real-time image tuning
• Interactive Backlighting: Illuminated control panel for low-light operation




6. Connectivity & Storage

• Onboard Storage: 500 GB HDD
• External Storage: USB memory stick, optional 1 TB USB hard drive, optional CD-RW/DVD-RW
• Networking & Data Transfer: Ethernet (RJ45) – 100BASE-TX, DICOM Structured Reporting (Cardiac, Vascular, Abdominal exams)
• Remote Access: GE’s Insite™ ExC for real-time troubleshooting and software updates
• Export Options: AVI, DICOM, JPG, MPEG, RAW, USB


7. Input & Output Ports

• USB Ports: 5 (three rear, two under keyboard)
• VGA Output: Supports 1080p resolution
• Composite & S-Video Output: Available via adapter


8. Safety & Compliance

• CE Marked: Compliant with Council Directive 93/42/EEC on Medical Devices
• Electrical Safety Standards:
• IEC 60601-1 (Medical Electrical Equipment – General Requirements)
• IEC 60601-1-2 (Electromagnetic Compatibility)
• IEC 60601-2-37 (Ultrasonic Medical Diagnostic & Monitoring Equipment)




9. Biological & Usability Standards:

• ISO 10993-1 (Biological Evaluation of Medical Devices)
• EN 62366 (Usability Engineering for Medical Devices)
• Virus Protection: Restricted open ports and security patches for third-party software

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

These probes are designed for cardiac, pediatric, and abdominal imaging, providing high penetration and real-time imaging capabilities.

• 3Sc-RS (1.3 – 4.0 MHz) – Used for cardiac, pediatric, abdominal, fetal, and adult cephalic imaging. Compatible with LVO contrast imaging (optional).
• 6S-RS (2.0 – 7.0 MHz) – Optimized for pediatric, fetal, neonatal cephalic, and abdominal imaging.
• 12S-RS (4.5 – 12.0 MHz) – Ideal for pediatric and neonatal cephalic imaging, delivering high-resolution images.

2. Transesophageal (TEE) Probes (Cardiac & Contrast Imaging)

TEE probes offer detailed cardiac imaging through the esophagus, enhancing visualization of heart structures.

• 6Tc-RS (3.0 – 8.0 MHz) – Designed for cardiac imaging, also supports LVO contrast applications (optional).
• 9T-RS (4.0 – 10.0 MHz) – Pediatric-focused transesophageal imaging with high-frequency detail.

3. Convex Array Probes (Abdominal & OB/GYN Imaging)

Convex probes provide a wide field-of-view, making them ideal for abdominal, OB/GYN, and neonatal applications.

• 4C-RS (1.5 – 5.0 MHz) – Used for abdominal, OB/GYN, fetal, neonatal cephalic, pediatrics, and urology.
• C1-5-RS (1.5 – 5.0 MHz) – Supports general abdominal, OB/GYN, and pediatric applications.
• 8C-RS (3.5 – 10.0 MHz) – Provides detailed pediatric, neonatal cephalic, and peripheral vascular imaging.

4. Endocavitary & Specialty Probes (Transvaginal, Urological, Intraoperative)

These probes are designed for high-resolution internal imaging, including transvaginal, transrectal, and intraoperative applications.

• E8Cs-RS (3.5 – 10.0 MHz) – Used for GYN, transvaginal, fetal/obstetrics, urological, and transrectal imaging.
• E8C-RS (3.5 – 11.0 MHz) – Supports fetal echo, follicle tracking, OB, GYN, and prostate imaging.

5. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

Linear probes are ideal for high-frequency imaging of vascular structures, small parts, and musculoskeletal applications.

• 9L-RS (3.0 – 10.0 MHz) – Used for peripheral vascular, abdominal, pediatric, small organs, and musculoskeletal imaging.
• 12L-RS (4.0 – 13.0 MHz) – Supports vascular, small parts, and neonatal cephalic imaging.
• L6-12-RS (4.0 – 13.0 MHz) – Optimized for vascular, small organs, musculoskeletal, and neonatal cephalic imaging.
• L8-18i-RS (4.5 – 18.0 MHz) – High-frequency probe for small organs, intraoperative, musculoskeletal, and vascular imaging.

6. Pencil (CW Doppler) Probes (Cardiac Doppler)

Continuous Wave (CW) Doppler probes are designed for high-velocity blood flow assessment, commonly used in cardiac exams.

• P2D (1.9 – 2.1 MHz) – Dedicated to continuous wave Doppler for cardiac applications.

7. Probe Accessories & Biopsy Guides

• Multi-angle Disposable Biopsy Guides – Available for convex and linear probes for guided procedures.
• Fixed-angle Disposable or Reusable Biopsy Guides – Compatible with endocavitary probes.
• LVO Contrast Support – Select TEE and phased array probes support left ventricular contrast imaging for enhanced cardiac assessments.

8. Additional Accessories

• Probe Stands: Available for easy probe positioning and manipulation during examinations.
• Cleaning and Disinfection Accessories: Ensure proper maintenance and hygiene for both the system and probes.
• Training and Support: On-site or online training services to optimize system use and clinical practice.
• Printer: Compatible printers available for instant printing of ultrasound images and reports.
• Data Storage and Transfer: External devices like USB drives or hard disks for data storage and transfer.
• Additional Software: Extended functionality through advanced analysis modules, automatic quantification tools, or enhanced reporting options.

Applications

1. Cardiovascular Imaging (Adult & Pediatric)

• Advanced 2D and Doppler cardiac imaging for both adult and pediatric patients.
• Stress Echocardiography for assessing cardiac performance under exertion.
• Automated Ejection Fraction (Auto EF) for rapid evaluation of left ventricular function.
• Tissue Doppler Imaging (TDI) for detailed myocardial motion analysis.
• Strain Imaging & Strain Rate Imaging for early detection of myocardial dysfunction.
• Transesophageal Echocardiography (TEE) for comprehensive evaluation of heart structures2. Vascular & Peripheral Imaging

• Color Doppler, Power Doppler, and Spectral Doppler for precise vascular assessment.
• Intima-Media Thickness (IMT) measurement for identifying early atherosclerotic changes.
• Evaluation of peripheral arteries and veins to diagnose DVT and other vascular conditions.
• Transcranial Doppler (TCD) for non-invasive evaluation of cerebrovascular blood flow.


2. Abdominal & Organ Imaging

• High-resolution imaging of the liver, kidney, spleen, and pancreas using B-mode and Doppler.
• Detailed assessment of the gallbladder and biliary system for abnormalities like stones and obstructions.
• Abdominal aorta and renal artery evaluation for detecting conditions like aneurysms and stenosis.

3. Obstetrics & Gynecology Imaging

• Comprehensive fetal imaging for growth monitoring and biometry.
• Early pregnancy imaging using transabdominal and transvaginal techniques.
• Monitoring amniotic fluid volume and placental health throughout pregnancy.
• Assessment of multiple gestations with advanced fetal tracking features.

4. Musculoskeletal & Small Parts Imaging

• Imaging of soft tissue structures such as muscles, tendons, and ligaments for injury and pathology evaluation.
• Small parts imaging for thyroid, breast, and testicular assessments.
• Characterization of soft tissue masses to distinguish benign from malignant lesions.



5. Urology & Renal Imaging

• Bladder volume measurement and assessment of urinary retention.
• Transrectal prostate imaging (TRUS) for detecting prostate enlargement and pathology.
• Renal Doppler studies for evaluating kidney perfusion and vascular integrity.



6. Intraoperative & Advanced Imaging

• Real-time imaging support for intraoperative guidance during surgical procedures.
• Needle guidance for biopsy and other interventional procedures.
• Contrast-enhanced ultrasound for detailed visualization of vascular and cardiac conditions.
• Elastography for evaluating liver stiffness and tissue characterization in liver disease diagnosis.

Frequently Asked Questions

1. What type of probes are compatible with the GE Vivid S70N?

The system supports various probe types, including phased array probes for cardiac imaging, convex array probes for abdominal and OB/GYN imaging, linear probes for musculoskeletal and vascular imaging, and specialized probes for transesophageal and intraoperative imaging.

2. Can the GE Vivid S70N be used for stress echocardiography?

Yes, the GE Vivid S70N supports stress echocardiography, allowing for the evaluation of cardiac function under stress conditions. This is essential for assessing heart function during exercise or pharmacological stress testing.

3. Is Doppler imaging available on the GE Vivid S70N?

Yes, the GE Vivid S70N includes advanced Doppler imaging capabilities, including Color Doppler, Power Doppler, and Spectral Doppler, which are used for detailed vascular and cardiac flow assessments.

4. Does the GE Vivid S70N have 3D/4D imaging capabilities for fetal assessments?

Yes, the GE Vivid S70N is equipped with 3D/4D imaging capabilities for fetal assessments, providing enhanced visualization for fetal growth, biometry, and well-being.

5. How does the GE Vivid S70N assist in vascular imaging?

The system provides advanced tools for vascular imaging, including Doppler capabilities for assessing blood flow in arteries and veins, as well as measurements like Intima-Media Thickness (IMT) to detect early signs of atherosclerosis.

6. Does the GE Vivid S70N support contrast-enhanced ultrasound (CEUS)?

Yes, the GE Vivid S70N supports contrast-enhanced ultrasound (CEUS), allowing for detailed visualization of blood vessels and cardiac structures, which can enhance diagnostic accuracy in various applications.

7. Is training available for using the GE Vivid S70N ultrasound system?

Yes, GE Healthcare offers training and support services for users of the Vivid S70N system. This includes on-site and online training options to help users maximize the system's capabilities and optimize clinical practice.
