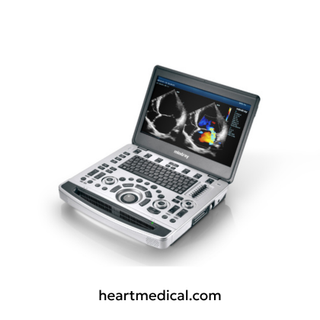

The Mindray M9 Premium is a compact powerhouse built for professionals who expect precision without compromise. It combines high-end imaging technology with portability, giving clinicians hospital-grade clarity in a system that fits anywhere.
Designed for busy environments, the M9 Premium transforms how you scan. Each element, from its fast boot-up to its intelligent presets, exists to reduce friction and speed decisions. You get sharper images, cleaner Doppler signals, and consistent diagnostic confidence across specialties.
This system serves cardiologists, vascular experts, OB-GYNs, and general practitioners who want a reliable ultrasound they can move easily without losing advanced capability. Over the next sections, we’ll break down its technologies, applications, and how it compares to leading systems in its class — so you can decide if the Mindray M9 Premium fits your practice.
Features and Specifications of M9 Premium
Image Quality Technologies
- 3T Transducer Technology with Single-Crystal elements: sharper images, stronger penetration in difficult-patient scanning.
- Tissue Harmonic Imaging (THI) & PSH™ (Phase Shift Harmonic Imaging): improve contrast resolution, reduce noise.
- iBeam™ (Spatial Compound Imaging) & iClear™ (Speckle Suppression): refine contrast and edge definition.
- Echo Boost™ Adaptive Signal Processing: amplifies weak echoes, suppresses clutter for clearer myocardium layers.
- HDR Flow (High Dynamic Range Flow) & HR Flow™ (High Resolution Flow): better Doppler display in vascular/cardiac.
- Raw data processing & multi-beam formation: enhance frame rate, deepen penetration, improve time resolution.
Workflow & Multi-Speciality Support
- iWorks™ Protocol Automation: standardises workflow, reduces keystrokes, speeds exams.
- Wide range of imaging modes: B-Mode/2D, M-Mode, Colour/Power Doppler, CW/PW Doppler, Tissue Doppler (TDI), Elastography, 3D/4D (optional).
- Broad transducer compatibility: curved, linear, phased array, pencil probes supported.
- Auto measurement packages: AutoIMT, SmartOB™, SmartNT™, Stress Echo, Tissue Tracking QA (TT QA).
Connectivity & Ergonomics
- 15.6-inch High-Resolution LED monitor (1920×1080) with wide viewing angle and adjustable tilt.
- Lightweight, portable chassis (~5 kg without battery, ~5.8 kg with battery).
- Built-in battery for mobile scanning; WiFi, USB, HDMI, DICOM support.
- Flexible probe port system: one active probe port plus pencil probe port simplifies multi-specialty use.
Specialty Enhancements
- Cardiology: Stress Echo, LVO (Left Ventricular Opacification for contrast), Tissue Tracking QA.
- Vascular/Small Parts: Elastography, IMT (Intima-Media Thickness) measurement, panoramic iScape™ view.
- OB/GYN: SmartOB™, SmartNT™, 3D/4D imaging (optional) for fetal/anatomy work.
Technical Specifications
Below are key system specifications for the M9 Premium. These capture form-factor, connectivity, and performance data.
| Specification | Detail |
|---|---|
| Monitor | 15.6-inch high-resolution LED, 1920 × 1080 resolution |
| System Dimensions (approx) | Width 390 mm × Depth 362 mm × Height 59 mm |
| Weight | ~5.0 kg (without battery/accessories); ~5.8 kg with battery |
| Battery | Lithium-Ion battery pack, 14.8 V, 5800 mAh (single battery) |
| Probe Ports | 1 active probe port + pencil probe port |
| Power Input | AC adapter: 100-240 V~, 50/60 Hz; Max power input 2.0 A |
| Operating Environment | Temperature: 0–40 °C; Humidity: 30%–85% (no condensation) |
| Storage/Transport Environment | Temperature: -20–55 °C; Humidity: 20%–95% (no condensation) |
| Standard Storage | 240 GB solid drive (in some configurations) |
Imaging Modes Supported:
- B-Mode/2D, THI, PSH™
- M-Mode, Anatomical M-Mode (FreeXros™)
- Colour Doppler, Power/Directional PDI, Pulsed Wave (PW) Doppler, Continuous Wave (CW) Doppler (optional)
- Tissue Doppler (TDI), Elastography, 3D/4D (optional)
Probe Compatibility of Mindray M9 Premium
| Probe Model | Type | Primary Applications |
|---|---|---|
| C5-1s | Curved Array | Abdominal, OB/GYN, General Imaging |
| C6-2Gs | Curved Array | Abdominal, Obstetrics, Gynecology, Urology |
| C11-3s | Micro-convex | Neonatal Abdomen, Pediatric Abdomen, Neonatal Cardiac, Vascular |
| SC6-1s | Micro-convex | Abdominal, Pediatric Abdomen, Interventional Procedures |
| L12-4s | Linear Array | Vascular, Small Parts, MSK, Superficial Structures |
| L14-6Ns | High-frequency Linear | Superficial MSK, Nerve Blocks, Small Parts |
| L10-3s | Linear Array | Vascular, Superficial Abdomen, Small Parts |
| P10-4s | Phased Array | Adult Cardiac, TTE, Stress Echo |
| P7-3s | Phased Array | Adult/Pediatric Cardiac, ICU/ER Cardiac Scans |
| P7-3Ts | TEE (Transesophageal) | Transesophageal Cardiac Imaging, OR, Critical Care |
| SP5-1s | Sector / Phased Array | Adult Cardiac, Deep Cardiac Views, Stress Echo |
| V11-3Ws | Endocavitary | OB/GYN, Early Pregnancy, Pelvic Exams |
| V11-3s | Endovaginal | Gynecology, Obstetrics, Fertility Workups |
| DE11-3s | Transrectal / Endocavitary | Prostate, Urology, Transrectal Exams |
| CW2s | Non-imaging CW | Cardiac Doppler, Valvular Assessment |
| CW5s | Non-imaging CW | High-velocity Cardiac Doppler, Valvular Disease |
Clinical Applications
The Mindray M9 Premium adapts across specialties. Its imaging precision, probe range, and automation tools make it a dependable choice for hospitals and private practices alike.
Cardiology
Built with a strong echo platform, the M9 Premium supports comprehensive cardiac assessment.
- Advanced Doppler and Tissue Doppler Imaging (TDI) capture subtle flow variations.
- Stress Echo and Tissue Tracking QA enhance functional evaluation.
- HR Flow™ and Echo Boost™ provide better visualization of myocardium and blood flow.
- Cardiologists can scan faster while maintaining diagnostic accuracy — even in complex cardiac conditions.
Vascular Imaging
For vascular labs, precision matters.
- Auto IMT and panoramic iScape™ simplify vessel wall and plaque analysis.
- High-frequency linear probes ensure clear visualization of small vessels.
- HDR Flow™ captures slow flow with superior clarity.
The result: consistent vascular assessments with fewer manual adjustments.
OB/GYN and Fetal Imaging
In obstetrics, clarity and safety define quality.
- SmartOB™ and SmartNT™ automate fetal measurements.
- 3D/4D imaging (optional) reveals detailed fetal anatomy.
- Elastography and THI modes enhance soft-tissue contrast.
OB/GYN specialists gain both precision and speed in prenatal exams.
Musculoskeletal and Small Parts
For MSK and superficial scans, detail and texture differentiation are vital.
- Linear probes (L12-4s, L14-6Ns) produce clean tendon and ligament imaging.
- iClear™ reduces speckle noise, improving contrast around muscle fibers.
- Portable size allows bedside or clinic-based procedures without image compromise.
General and Shared Services
The M9 Premium transitions easily across departments. Its auto-presets, multi-probe support, and full-day battery life make it suitable for emergency rooms, ICUs, and outpatient facilities where quick mobility and image reliability are essential.
Conclusion
The Mindray M9 Premium stands out as one of the most capable portable ultrasound systems in its class. It bridges the gap between high-end console performance and true mobility delivering crystal-clear imaging, advanced automation, and versatile probe support in a compact body.
For hospitals, clinics, and imaging centers handling multi-specialty workloads, the M9 Premium offers consistent reliability, fast workflow, and diagnostic confidence across every scan. Whether you focus on cardiology, OB/GYN, vascular, or general imaging, it’s built to match the pace and precision of modern healthcare.
Get the Mindray M9 Premium at Heart Medical
Heart Medical supplies Mindray M9 Premium ultrasound systems and compatible accessories nationwide. Every system is backed by professional warranty coverage, OEM-certified parts, and expert technical support.
We deliver across the U.S. with full installation, setup, and after-sales service options tailored for hospitals, clinics, and private practices.
Contact Heart Medical today to discuss configurations, probe compatibility, or upgrade options and bring high-performance imaging to your facility with confidence.
