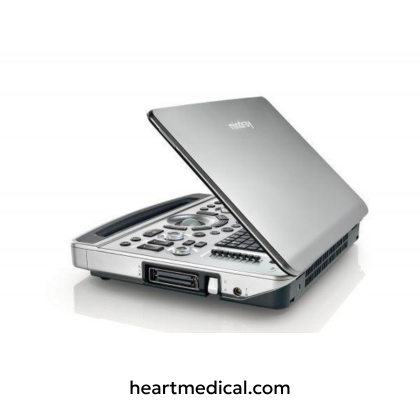

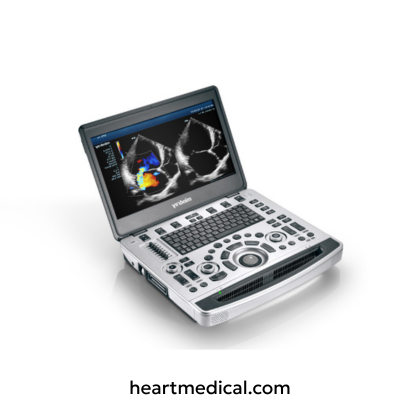

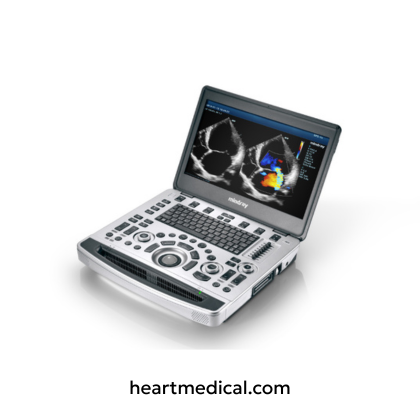

Mindray M9 Ultrasound Machine - MR-M9-US

Description

Advanced Portable Cardiovascular Imaging for Precise Diagnostics

The Mindray M9 is a top-tier portable ultrasound system that elevates your diagnostic capabilities with cutting-edge technology and superior imaging quality. Designed to meet the needs of various clinical settings, including emergency care, critical care, anesthesia, and vascular and cardiac applications, the M9 delivers exceptional performance in a compact, portable form.

Equipped with advanced signal transmission and single-crystal ultrasound transducers, the M9 offers remarkable resolution and deep penetration for accurate imaging, even in challenging cases. Featuring 3T ultrasound transducer technology, the M9 ensures sharp, clear images and dynamic color flow for optimal diagnostic confidence.

The M9 excels in cardiovascular imaging, with a full suite of cardiac features and measurement packages, including stress echo, needle visualization, and auto IMT. The system also supports compound imaging, speckle reduction imaging, and EchoBoost cardiac imaging optimization, ensuring enhanced clarity and precision. Its ergonomic design includes multi-function keys for seamless operation, while DICOM compatibility ensures easy integration with hospital networks.

At just 12.8 pounds, the M9 offers a lightweight, portable solution that doesn’t compromise performance. Whether in the hospital, clinic or on the go, the Mindray M9 is an invaluable tool for healthcare professionals seeking high-quality imaging and fast, reliable results.

Key Features

Imaging & Performance

• 3T Transducer Technology with Single Crystal – Provides sharper images with enhanced penetration and color dynamic flow, ideal for challenging patient scans.
• EchoBoost™ – Adaptive signal processing enhances weak echoes and suppresses surrounding noise, improving image brightness and myocardium visualization.
• Tissue Tracking with Quantitative Analysis (TT QA) – Non-invasive evaluation of left ventricular wall motion abnormalities, improving tracking accuracy with real-time bedside analysis.
• Phase Shift Harmonic Imaging (PSHI) – Purified harmonic imaging for better contrast resolution, clearer images, and reduced noise.
• Tissue Harmonic Imaging (THI) – Enhances contrast resolution and image quality, especially for technically difficult scans.
• Tissue Specific Imaging (TSI) – Optimizes imaging quality based on tissue type, offering modes for general, muscle, fluid, and fat.
• iBeam™ – Multi-angle scanning allows improved contrast resolution and superior visualization.
• iClear™ – Automatically detects and improves image quality for sharper, cleaner images.
• Multi-Beam Formation – Provides high frame rates with superior time resolution, enhancing diagnostic clarity and speed.
• Free Xros M™ – Enables precise anatomical observation with customizable sample line placement.
• Free Xros CM™ – Evaluates myocardial motion at various phases, providing accurate results with high frame rates.
• Auto EF – Automated calculation of ejection fraction using 2D echo clips, providing reliable results for diastole and systole frames.

User Interface & Ergonomics

• 15.6” LED HD Monitor – High-definition display with a slim design for superior image clarity and viewing comfort.
• Compact & Lightweight Design – Weighs just 12.8 pounds, making it highly portable for diverse clinical settings.
• Built-in Battery – Offers up to 90 minutes of scanning time, supporting mobile use in various environments.
• Customizable Trolley – Features an easy locking system with an integrated battery pack for over 3.5 hours of operation.
• iTouch™ – Instant auto-image optimization for B, Color, and PW modes at the touch of a button.
• iZoom™ – Provides a full-screen view with a simple swipe, enhancing user efficiency.
• iStation™ – Unique patient information management system for effective data integration, review, and archiving.

Advanced Automation & AI Tools

• AutoIMT – Automatically measures intima-media thickness (IMT) for accurate carotid artery assessments.
• TDI (Tissue Doppler Imaging) – Quantitative myocardial movement and function analysis, enabling rapid diagnosis.
• Stress Echo – Includes a complete package for pharmacological and exercise stress echo with flexible reporting options.
• Raw Data – Provides maximum flexibility for post-processing, allowing adjustments to parameters, adding measurements, and annotating images.
• iWorks™ – Smart tool that reduces patient scan time through standardized, user-defined capabilities.

Connectivity & Data Management

• DICOM Compatibility – Seamlessly integrates with DICOM systems for standardized reporting and image sharing.
• Multiple Export Options – Supports DICOM, JPEG, MPEG, AVI formats, and USB/CD/DVD storage for versatile image sharing.
• Cloud Integration – Securely share images and reports through cloud platforms, enhancing collaboration and efficiency.
• Wi-Fi & USB Connectivity – Enables fast data transfer and seamless integration with external devices for real-time access and remote support.

Design & Portability

• Ultra-Thin Magnesium-Alloy Body – Durable, lightweight frame ensuring mobility without compromising performance.
• Green Design – Features noiseless operation, automatic brightness adjustment, and RoHS-certified materials for eco-friendly use.
• Compact and Portable – Ideal for emergency care, critical care, anesthesia, vascular, and cardiac applications, providing premium performance on the go.

Technical Specifications

1. System Architecture & Processing

• Operating System – Windows® 10
• Image Processing Technology – EchoBoost cardiac image optimization, High Dynamic Range Color Flow Doppler, UWN + Contrast Imaging for LVO
• Digital Beamformer – Advanced signal processing for superior image quality
• Dynamic Range Adjustment – Automatic optimization for superior clarity
• Acoustic Frame Rate – High frame rate for rapid image capture and display (frame rate not specified)

2. Dimensions & Weight

• Width: 15.5" (394 mm)
• Depth: 14.25" (362 mm)
• Height: 2.3" (58 mm)
• Weight: 12.8 lbs (5.8 kg)

3. Power & Electrical Specifications

• Input Voltage – 100-240V AC, 50/60 Hz
• Power Consumption – Not specified
• Cooling System – Passive cooling design, efficient for mobile use
• Battery – Yes, supports mobility

4. Display & Imaging Interface

• Monitor – 15.6” High-Resolution LED, 1920x1080 resolution
• Monitor Adjustments – Tilt and rotate for optimal viewing
• Touchscreen Control – N/A (Trackball used for control)

5. User Interface & Control

• Keyboard – Not specified (Trackball used for control)
• Trackball & Touch Controls – Trackball for image navigation, measurement adjustments, and annotation
• TGC Controls – Not specified (Automatic optimization features)
• Interactive Backlighting – N/A (Features trackball control)

6. Connectivity & Storage

• Onboard Storage – 128 GB SSD
• External Storage:
• USB Memory Stick
• External CD/DVD-R
• Networking & Data Transfer:
• Ethernet (RJ45) – Yes
• DICOM (Optional) – Print, Store, Query/Retrieve, MPPS, Storage Commitment, Structured Reporting
• Remote Access – Wi-Fi network, VAcess for workstation connection for patient reporting

7. Input & Output Ports

• USB Ports – 2 USB ports for external devices
• Video and Output Options – Composite Video, Ethernet, USB, VGA, Audio, HDMI, S-Video, Wireless
• Audio Stereo Output – Yes, for external audio devices

8. Safety & Compliance

• CE Marked – Compliant with Medical Device Directives
• Electrical Safety Standards –IEC 60601-1 (Medical Electrical Equipment), IEC 60601-1-2 (Electromagnetic Compatibility), and IEC 60601-2-37 (Ultrasonic Medical Diagnostic Equipment)
• Biological & Usability Standards –ISO 10993-1 (Biological Evaluation of Medical Devices) and EN 62366 (Usability Engineering for Medical Devices)
• Virus Protection – Restricted open ports and security patches for third-party software

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

• Mindray SP5-1s Phased Array Probe – Used for cardiac imaging, offering high penetration and real-time imaging capabilities.
• Mindray P10-4s Phased Array Probe – Optimized for general cardiac and pediatric imaging.
• Mindray P7-3s Phased Array Probe – Designed for general cardiac and pediatric applications.

2. Transesophageal (TEE) Probes (Cardiac & Contrast Imaging)

• Mindray P7-3ts TEE Probe – Used for detailed cardiac imaging through the esophagus, enhancing visualization of heart structures.

3. Curved Array Probes (Abdominal & OB/GYN Imaging)

• Mindray C5-1s Curved Array Probe – Suitable for abdominal, OB/GYN, and pediatric applications.
• Mindray C11-3s Curved Array Probe – Optimized for abdominal, OB/GYN, and neonatal imaging.
• Mindray C6-2gs Curved Array Probe – Ideal for abdominal, OB/GYN, and pediatric imaging.

4. Endocavitary Probes (Transvaginal, Urological, Intraoperative)

• Mindray V11-3ws Endocavitary Probe – Designed for GYN, transvaginal, urological, and intraoperative imaging.

5. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

• Mindray L10-3s Linear Array Probe – Used for small parts, vascular, and musculoskeletal imaging.
• Mindray L14-6ns Linear Array Probe – Suitable for high-frequency imaging of small parts, vascular structures, and musculoskeletal applications.
• Mindray L12-4s Linear Array Probe – Optimized for vascular, small parts, and neonatal imaging.
• Mindray L14-6ws Linear Array Probe – Designed for vascular, small parts, and musculoskeletal applications.

6. Pencil (CW Doppler) Probes (Cardiac Doppler)

• Mindray CW2s CW Pencil Probe – Dedicated to continuous wave Doppler for cardiac applications.
• Mindray CW5s CW Pencil Probe – Used for high-velocity blood flow assessment in cardiac exams.

Applications

1. Cardiac Imaging (Adult & Pediatric)

• Comprehensive 2D and Doppler Cardiac Imaging for adult and pediatric patients.
• Stress Echo for evaluating cardiac function under stress conditions.
• Automated Ejection Fraction (Auto EF) for quick left ventricular function assessment.
• Tissue Doppler Imaging (TDI) for advanced myocardial assessments.
• Strain Imaging & Strain Rate Imaging (optional) for detecting early myocardial dysfunction.
• Transesophageal Echocardiography (TEE) for detailed heart structure evaluation.

2. Vascular Imaging (Peripheral & Cerebrovascular)

• Color Doppler, Power Doppler, and Spectral Doppler for assessing blood flow and vessel conditions.
• IMT (Intima-Media Thickness) Measurement for detecting early signs of atherosclerosis.
• Peripheral Artery and Vein Evaluation for deep vein thrombosis (DVT) and arterial disease.
• Transcranial Doppler (TCD) for cerebrovascular blood flow assessment.

3. Abdominal & General Imaging

• Liver, Kidney, Spleen, and Pancreas Imaging with high-resolution B-mode and Doppler capabilities.
• Gallbladder and Biliary System Assessment for stones and duct obstructions.
• Aorta and Renal Artery Evaluation for detecting aneurysms and stenosis.

4. OB/GYN & Fetal Imaging

• Detailed Fetal Biometry and Growth Monitoring with Advanced Measurements.
• Transvaginal and Transabdominal Imaging for early pregnancy assessments.
• Amniotic Fluid Index (AFI) and Placental Health Monitoring.
• Multi-gestational pregnancy Evaluation with fetal trending capabilities.

5. Small Parts & Musculoskeletal Imaging (MSK)

• Thyroid, Breast, and Testicular Imaging for detecting nodules, cysts, and tumors.
• Musculoskeletal Ultrasound for tendon, ligament, and joint evaluations.
• Soft Tissue Mass Characterization to differentiate between benign and malignant lesions.

6. Urological & Prostate Imaging

• Bladder Volume Assessment for urinary retention and voiding dysfunction.
• Transrectal Prostate Imaging (TRUS) for prostate size and lesion detection.
• Renal Doppler Studies for kidney perfusion assessment.

7. Intraoperative & Specialized Imaging

• Real-Time Intraoperative Guidance for surgical procedures.
• Biopsy Assistance with real-time needle visualization and guided biopsy tools.
• Contrast-enhanced ultrasound (LVO Contrast, optional) for vascular and cardiac imaging.

Frequently Asked Questions

1. What are the standout features of the Mindray M9 Ultrasound system?

The Mindray M9 Ultrasound boasts a 12-inch touchscreen, exceptional image quality, advanced Doppler capabilities, automated measurement tools, and compatibility with various ultrasound probes to cater to a range of clinical needs.

2. Is the Mindray M9 Ultrasound system portable?

Absolutely! The Mindray M9 Ultrasound is compact and lightweight, making it an excellent choice for mobile use in various environments such as emergency rooms, bedside diagnostics, and point-of-care applications.

3.  Which ultrasound probes work with the Mindray M9 Ultrasound?

The system is compatible with a broad selection of probes, including the Mindray C5-1s curved array, P7-3s phased array, L10-3s linear array, V11-3ws endocavitary probe, and CW pencil probes, making it adaptable for multiple imaging applications.

4. Does the Mindray M9 Ultrasound offer Doppler imaging functionality?

Yes, the Mindray M9 Ultrasound supports both color Doppler and spectral Doppler imaging, allowing for detailed vascular assessments, cardiac evaluations, and blood flow studies in peripheral arteries.

5. What is the display size of the Mindray M9 Ultrasound?

The Mindray M9 Ultrasound features a 12-inch high-resolution touchscreen display, ensuring clear and precise images for accurate diagnostics.
