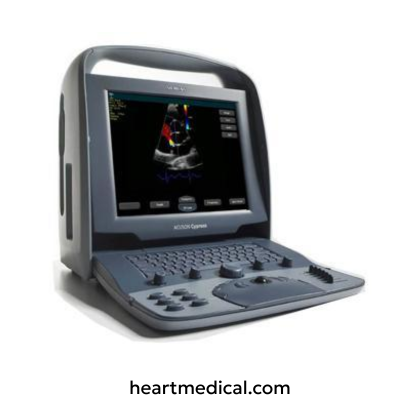

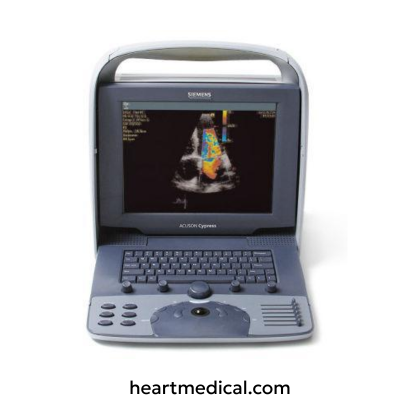

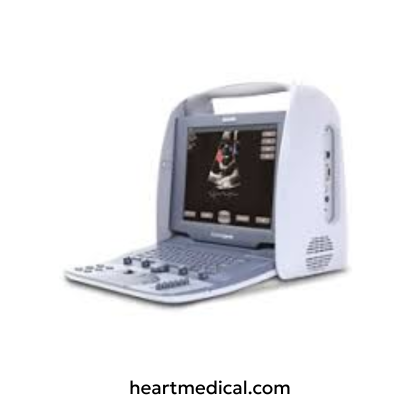

ACUSON Cypress™ PLUS Ultrasound System - SIEM-CYPRESS-PLUS-US

Description

Portable Cardiovascular Imaging with Advanced Ergonomics

The ACUSON Cypress™ PLUS is a fully digital, portable ultrasound system designed for comprehensive cardiovascular applications. Its compact design allows for easy transport, making it ideal for various clinical environments, including private offices, hospital echo labs, patient bedsides, emergency rooms, operating suites, and critical care units. The system offers a complete range of cardiovascular capabilities, including adult and pediatric transthoracic echocardiography (TTE), multiplane transesophageal echocardiography (TEE), intracardiac echocardiography (ICE) with ACUSON AcuNav™ ultrasound catheters, peripheral vascular imaging, and abdominal vascular imaging.

Key Features

• Comprehensive Cardiovascular Applications: Supports adult and pediatric TTE, multiplane TEE, ICE, peripheral vascular, and abdominal vascular imaging.
• Advanced Ergonomic Design: Features a home-base control layout for ease of use and a 12.1-inch flat-panel display with tilt adjustment for optimal viewing.
• Fully Digital System Architecture: Ensures high-quality imaging performance typically seen in high-end systems, providing uncompromised diagnostic confidence.
• Network Connectivity: Offers DICOM standard output to PACS and DICOM Modality Worklist for streamlined workflow and communication.
• Portable and Lightweight: Weighs approximately 19 pounds (8.6 kg), facilitating easy transport and use across various clinical settings.

Technical Specifications

• Dimensions:
  • Width: 15.58 inches (39.6 cm)
  • Height: 13.67 inches (34.7 cm)
  • Depth: 7.64 inches (19.4 cm) with keyboard up
• Display: 12.1-inch flat-panel active matrix display screen with 5 to 30-degree tilt adjustment
• Weight: Approximately 19 pounds (8.6 kg)
• Operating Modes:
  • 2D fundamental and harmonic imaging
  • Color Doppler Velocity
  • Color Doppler Energy
  • M-Mode
  • Pulsed Wave (PW) and Continuous Wave (CW) Doppler
  • Duplex Doppler (combined 2D and spectral Doppler display)
• Transducer Support: Compatible with a range of transducers, including phased array, linear array, and multiplane TEE probes
• Data Management: Digital dynamic exam acquisition, storage, database, review, and transfer capabilities

Probe Compatibility

• Curved Array Probes
  6C2: Abdomen, OB/GYN, Pediatrics, Peripheral Vascular, Renal
  7C2: Abdomen, OB/GYN, Pelvis, Renal
• Linear Array Probes
  9L4: Small Parts, Vascular, Musculoskeletal, Breast, Thyroid
  14L5: Small Parts, Vascular, Musculoskeletal, Breast, Thyroid
• Phased Array Probes
  4V1: Cardiac, Transcranial Doppler (TCD)
  4V1c: Cardiac, Transcranial Doppler (TCD)
• Endocavity Probes
  EC9-4: OB/GYN, Urology
  EV-8C4: OB/GYN, Urology
• Pencil Probes (CW Doppler)
  CW2: Cardiac, Peripheral Vascular
  CW5: Cardiac, Peripheral Vascular

Applications

• Adult and Pediatric Transthoracic Echocardiography (TTE)
• Multiplane Transesophageal Echocardiography (TEE)
• Intracardiac Echocardiography (ICE)
• Peripheral Vascular Imaging
• Abdominal Vascular Imaging

Frequently Asked Questions

How does the ACUSON Cypress™ PLUS enhance workflow efficiency?

Its advanced ergonomic design with a home-base control layout and network connectivity features, such as DICOM standard output, streamline workflow and communication in clinical environments.

Is the ACUSON Cypress™ PLUS suitable for various clinical settings?

Yes, its portable and lightweight design makes it ideal for use in private offices, hospital echo labs, patient bedsides, emergency rooms, operating suites, and critical care units.

What imaging modes are supported by the ACUSON Cypress™ PLUS?

The system supports 2D fundamental and harmonic imaging, Color Doppler Velocity, Color Doppler Energy, M-Mode, Pulsed Wave (PW) and Continuous Wave (CW) Doppler, and Duplex Doppler.

Can the ACUSON Cypress™ PLUS be integrated into existing network systems?

Yes, it offers DICOM standard output to PACS and DICOM Modality Worklist, facilitating seamless integration into existing network systems for streamlined workflow and communication.

What types of transducers are compatible with the ACUSON Cypress™ PLUS?

The system is compatible with a range of transducers, including phased array, linear array, and multiplane TEE probes, supporting various cardiovascular imaging applications.
