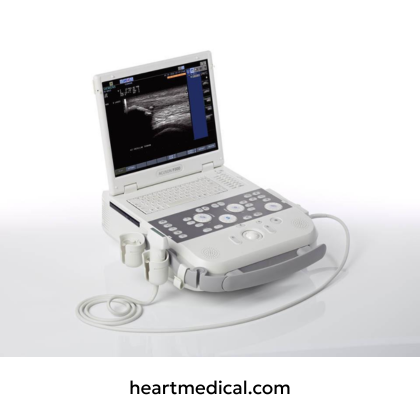

ACUSON P300™ Ultrasound System - SIEM-P300-US

Description

Comprehensive Portable Ultrasound Solution for Diverse Clinical Environments

The ACUSON P300™ is a compact, portable ultrasound system engineered to deliver high-performance imaging across various clinical settings. Its sleek design and advanced imaging technologies provide excellent image quality and workflow efficiencies, enabling clinicians to make confident diagnoses with high patient throughput. The system's portability and versatility make it an ideal solution for facilities requiring a flexible imaging platform

Key Features

• Advanced Imaging Technologies: Includes advanced spatial compounding to differentiate anatomy, speckle reduction for smooth tissue texture and enhanced edges, harmonic imaging to reduce artifacts, panoramic imaging for extended field of view, and 2D beam steering to improve needle visualization.
• Efficient Workflow: Offers multiple predefined and user-configurable presets for each clinical specialty and transducer, multi-tasking capability of scanning while copying/transferring data and patient files, customizable measurement and report packages, and single-button image optimization for 2D and Doppler to minimize keystrokes and save time.

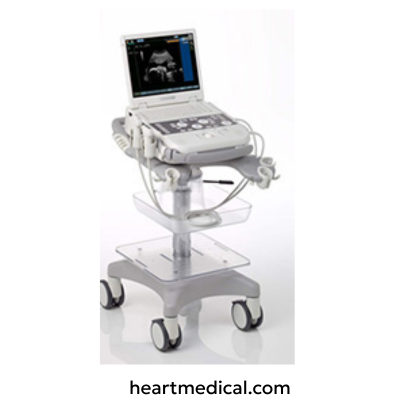

• Portable Solution: Features a small footprint that can fit into any clinical environment, height-adjustable cart for easy mobility, battery operation for up to 80 minutes, and a suite of 13 transducers for a wide range of clinical applications.

Technical Specifications

• Display: High-resolution monitor for detailed image visualization.
• Transducer Support: Supports a total of 13 transducers, including an 18 MHz linear transducer for high-detail resolution of superficial structures, and laparoscopic and intraoperative transducers for specialty applications.
• Imaging Modes: Supports 2D, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, and Continuous Wave Doppler imaging.
• Data Management: Integrated system with DICOM connectivity for seamless information sharing and storage.
• System Dimensions: Compact design with integrated power supply, battery operable, built-in DVD/RW drive, and three USB ports.

Probe Compatibility

• Curved Array Probes
  6C2: Abdomen, OB/GYN, Pediatrics, Peripheral Vascular, Renal
  7C2: Abdomen, OB/GYN, Pelvis, Renal
• Linear Array Probes
  9L4: Small Parts, Vascular, Musculoskeletal, Breast, Thyroid
  14L5: Small Parts, Vascular, Musculoskeletal, Breast, Thyroid
• Phased Array Probes
  4V1: Cardiac, Transcranial Doppler (TCD)
  4V1c: Cardiac, Transcranial Doppler (TCD)
• Endocavity Probes
  EC9-4: OB/GYN, Urology
  EV-8C4: OB/GYN, Urology
• Pencil Probes (CW Doppler)
  CW2: Cardiac, Peripheral Vascular


Applications

• General Imaging: Comprehensive assessments of abdominal organs and superficial structures.
• Cardiology: Routine echo, stress echo, and vascular exams for adult, pediatric, and neonatal patients.
• OB/GYN: Detailed fetal and gynecological evaluations with advanced imaging tools.
• Small Parts and Breast Imaging: Evaluation of small anatomical structures and breast tissue assessments.
• Vascular Imaging: Assessment of vascular structures and blood flow dynamics with enhanced clarity.
• Anesthesiology: Guidance for regional anesthesia and vascular access procedures.
• Musculoskeletal Imaging: Evaluation of musculoskeletal structures for injury and disease assessment.
• Interventional Radiology: Support for interventional procedures with enhanced needle visualization.

Frequently Asked Questions

How does the ACUSON P300™ enhance workflow efficiency?

It offers multiple predefined and user-configurable presets, multi-tasking capabilities, customizable measurement and report packages, and single-button image optimization, streamlining the imaging process and reducing examination time.

Is the ACUSON P300™ suitable for various clinical applications?

Yes, it provides excellent image quality in a small, portable package for any clinical environment, supporting a wide range of applications including general imaging, cardiology, OB/GYN, small parts, breast, vascular, anesthesiology, musculoskeletal, and interventional radiology.

How does the portable design benefit clinical settings?

Its small footprint allows it to fit into any clinical environment, and features like a height-adjustable cart and battery operation for up to 80 minutes facilitate easy mobility and flexibility in various clinical settings.

What transducer options are available with the ACUSON P300™?

It supports a total of 13 transducers, including an 18 MHz linear transducer for high-detail resolution of superficial structures, and laparoscopic and intraoperative transducers for specialty applications, covering a wide range of clinical needs.

Can the ACUSON P300™ be integrated into existing data management systems?

Yes, it features an integrated system with DICOM connectivity, enabling seamless information sharing and storage within existing data management systems.
