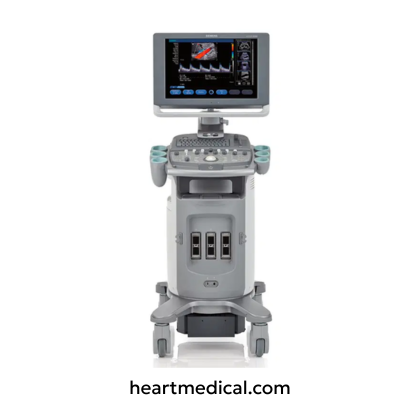

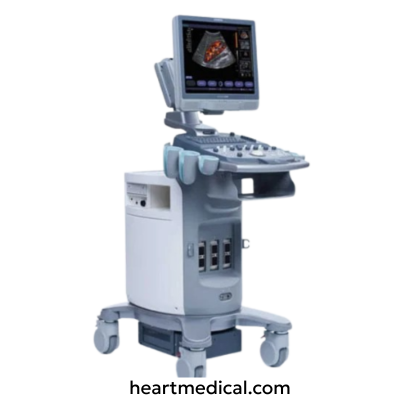

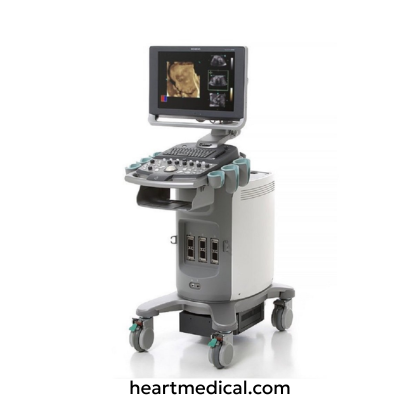

ACUSON X300™ Ultrasound System - SIEM-X300-US

Description

Versatile Imaging Solution for Diverse Clinical Applications

The ACUSON X300™ ultrasound system is a compact, portable imaging solution designed to deliver exceptional clinical performance across a wide variety of applications. This comprehensive, fully featured system incorporates high-end image optimization techniques and enhanced workflow features to meet the challenges of the most demanding care environments.

Key Features

• Advanced Imaging Technologies: Incorporates Dynamic TCE™ Tissue Contrast Enhancement technology, Clarify™ vascular enhancement (VE) technology, SieClear™ multi-view spatial compounding, and TGO™ Tissue Grayscale Optimization technology to provide superior image quality and diagnostic confidence.

• ErgoDynamic™ Imaging System Design: Features a fully adjustable, high-resolution, flat-panel display, integrated handle on the monitor, height-adjustable control panel, and lightweight, compact system architecture for enhanced mobility and user comfort.

• Customizable Workflow: Offers user-customizable control panels, flexible archiving options, and specialized reporting packages for various applications, streamlining clinical workflow and increasing efficiency.

• Advanced Cardiology Applications: Includes advanced cardiology quantification applications, one-button LVO contrast, TEE and 3D TEE using syngo® fourSight™ TEE View, and the ACUSON AcuNav™ catheter for Intracardiac Echocardiography.


Technical Specifications

• System Architecture: All-digital signal processing and multi-beam formation technology provide best-in-class imaging in all modes and enable seamless integration of features and options.

• Transducer Support: Compatible with a wide range of transducers, including the BP9-4 transducer for live dual bi-plane prostate imaging and the V5Ms transducer for adult transesophageal imaging.

• Imaging Modes: Supports 2D, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, and 3D/4D imaging.

• Data Management: Features flexible archiving options to CD/DVD, USB, or DICOM-enabled networks, and includes a user-definable physician summary utility for on-system report generation.


Probe Compatibility

Curved Array Probes

• CH5-2: Abdomen, OB/GYN, Urology, Emergency Medicine, Fetal Echo, Renal, Peripheral Vascular, Venous
• C6-2: Abdomen, Early OB, Vascular, Fetal Echo
• C7F2: Abdomen, Early OB, Fetal Echo, OB/GYN
• C8-5: Cerebrovascular, Neonatal Head, Pediatric Abdomen, Pediatric Echo

Linear Array Probes

• VF8-3: Breast, Cerebrovascular, Emergency Medicine, Musculoskeletal, Orthopedic, Peripheral Vascular, Testicle, Thyroid, Venous
• VF10-5: Breast, Cerebrovascular, Emergency Medicine, Musculoskeletal, Orthopedic, Peripheral Vascular, Testicle, Thyroid, Venous
• VF13-5SP: Breast, Cerebrovascular, Intraoperative, Musculoskeletal, Superficial Musculoskeletal, Superficial Vascular, Testicle, Thyroid, Venous
• VF13-5: Breast, Cerebrovascular, Digital, Emergency Medicine, Musculoskeletal, Superficial Musculoskeletal, Penile, Superficial Vascular, Testicle, Thyroid, Venous

Phased Array Probes

• P4-2: Abdomen, Adult Echo, Emergency Medicine, OB/GYN, Renal, Transcranial
• P5-1: Abdomen, Adult Echo, Emergency Medicine, Pediatric Echo, Transcranial
• P8-4: Abdomen, Neonatal Echo, Neonatal Head, Pediatric Abdomen, Pediatric Echo, Renal
• P9-4: Neonatal Echo, Neonatal Head, Pediatric Abdomen, Pediatric Echo

Endocavity Probes

• EV9-4: Early OB, Emergency Medicine, OB/GYN
• EV9F4: Early OB, OB/GYN
• EC9-4: Early OB, OB/GYN, Urology

Transesophageal Echocardiography (TEE) Probes

• V5Ms: Adult transesophageal echocardiography

Intraoperative Probes

• VF13-5SP: Intraoperative imaging applications

Pencil Probes (CW Doppler)

• CW2: Cardiac, Peripheral Vascular
• CW5: Cardiac, Peripheral Vascular

Applications

• General Imaging: Comprehensive assessments of abdominal organs and superficial structures.
• Cardiology: Routine echo, stress echo, and vascular exams for adult, pediatric, and neonatal patients.
• OB/GYN: Detailed fetal and gynecological evaluations with advanced imaging tools.
• Vascular Imaging: Assessment of vascular structures and blood flow dynamics with enhanced clarity.
• Urology: Evaluation of urological structures and functions.
• Endocrinology: Assessment of endocrine glands and related structures.
• Emergency Medicine: Rapid imaging assessments in emergency settings.

Frequently Asked Questions

How does the ACUSON X300™ enhance diagnostic confidence?

It integrates advanced imaging technologies such as Dynamic TCE™ Tissue Contrast Enhancement and Clarify™ vascular enhancement (VE) technology, providing superior image quality and diagnostic confidence.

Is the ACUSON X300™ suitable for various clinical applications?

Yes, it offers versatile capabilities covering general imaging, cardiology, OB/GYN, vascular imaging, urology, endocrinology, and emergency medicine.

How does the system's design support user efficiency?

Its ErgoDynamic™ imaging system design features a fully adjustable, high-resolution display, height-adjustable control panel, and lightweight architecture, enhancing mobility and user comfort.

Can the ACUSON X300™ be integrated into existing data management systems?

Yes, it features flexible archiving options to CD/DVD, USB, or DICOM-enabled networks, facilitating integration into existing data management systems.

What transducer configurations are available with the ACUSON X300™?

The system supports a wide range of transducers, including the BP9-4 transducer for live dual bi-plane prostate imaging and the V5Ms transducer for adult transesophageal imaging.
