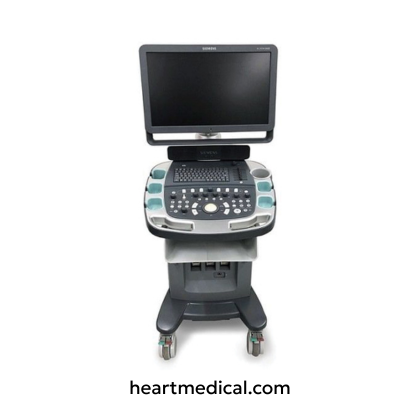

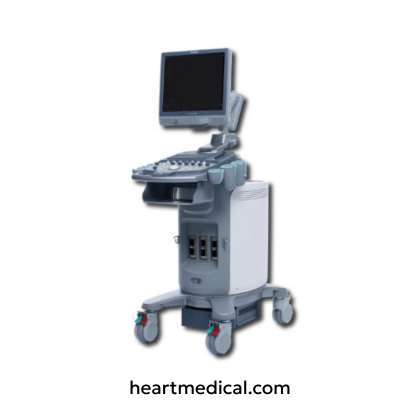

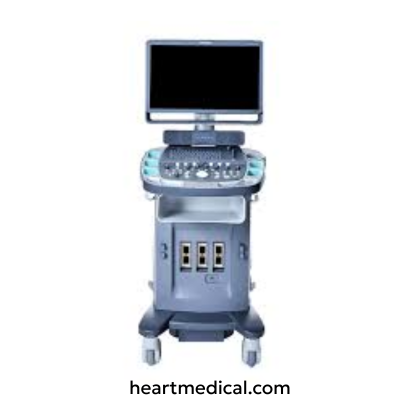

ACUSON X600™ Ultrasound System - SIEM-X600-US

Description

Advanced Imaging for Accurate Diagnostics

The ACUSON X600™ Ultrasound System is designed to deliver high-quality imaging for a variety of clinical applications. With a focus on workflow efficiency, this system integrates advanced imaging technologies to provide excellent diagnostic confidence. Its compact design and ergonomic features make it ideal for general imaging, cardiology, and obstetrics/gynecology.

Key Features

• TGO™ Tissue Grayscale Optimization: Automatically adjusts imaging parameters for optimal brightness and contrast.
• Ergonomic Design: 20-inch LED monitor with a fully articulating arm for user comfort.
• Advanced Imaging Engine: Provides uniform image quality and enhanced resolution across the field of view.
• Scalable Architecture: Offers software and hardware upgrade options to meet evolving clinical needs.
• Customizable Workflow: Features user-defined presets and reporting tools for specialized clinical applications.

Technical Specifications

• Monitor: 20-inch LED display with 180° articulation.
• Transducer Support: Compatible with linear, curved, and volume transducers, supporting 3D/4D imaging.
• Imaging Modes: 2D, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, and Continuous Wave Doppler.
• Data Management: DICOM compatibility for seamless network integration.
• System Weight: Lightweight and portable, ensuring ease of movement between rooms.

Probe Compatibility

Curved Array Probes

• CH5-2: Abdomen, OB/GYN, Urology, Emergency Medicine, Fetal Echo, Renal, Peripheral Vascular, Venous
• C6-2: Abdomen, OB/GYN, Pediatrics, Emergency Medicine, Fetal Echo, Renal, Peripheral Vascular
• C8F3: Abdomen, OB/GYN, Pelvic Floor, Early OB, Fetal Echo

Linear Array Probes

• VF10-5: Small Parts, Vascular, Musculoskeletal, Orthopedic, Breast, Thyroid, Testicle, Cerebrovascular
• VF12-4: Small Parts, Vascular, Musculoskeletal, Orthopedic, Breast, Thyroid, Testicle, Cerebrovascular

Phased Array Probes

• 4V1c: Cardiac, Abdomen, Emergency Medicine, Transcranial

Endocavity Probes

• EV9F3: OB/GYN, Early OB
• EC9-4w: OB/GYN, Urology, Early OB

Volume Probes

• C6F2: 3D/4D imaging for OB/GYN, Abdomen
• C8F3: 3D/4D imaging for OB/GYN, Pelvic Floor
• EV9F3: 3D/4D endovaginal imaging for OB/GYN

Pencil Probes (CW Doppler)

• CW2: Cardiac, Peripheral Vascular
• CW5: Cardiac, Peripheral Vascular

Applications

• General Imaging: Comprehensive abdominal, small parts, and musculoskeletal imaging.
• Cardiology: Adult and pediatric echocardiography.
• Obstetrics and Gynecology: Advanced fetal and gynecological assessments.
• Vascular Imaging: Accurate evaluation of blood flow and vascular structures.

Frequently Asked Questions

What makes the ACUSON X600™ unique?

The ACUSON X600™ combines advanced imaging technologies and ergonomic design to deliver exceptional performance in a compact form factor.

Is the system suitable for OB/GYN applications?

Yes, it supports detailed fetal and gynecological evaluations with advanced 3D/4D imaging.

Can the ACUSON X600™ be upgraded?

Yes, the system is scalable, allowing for future upgrades to meet changing clinical needs.

How does the TGO™ technology improve workflow?

TGO™ optimizes imaging parameters automatically, reducing manual adjustments and increasing efficiency.

Is the system portable?

Yes, its lightweight design and compact architecture make it easily portable for use in various clinical settings.
