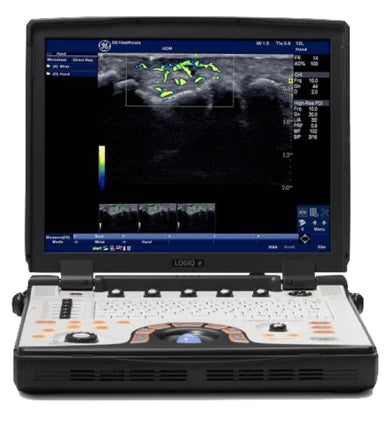

GE Logiq E R8 Laptop Ultrasound Machine System

Description

Portable Design, Powerful Diagnostics, & Better Healthcare

The GE Logiq E R8 is a portable, laptop-style ultrasound machine. It is part of GE’s Logiq line, known for its high-quality imaging capabilities for medical diagnostics. This machine is incredibly helpful in scanning clear and accurate images.

It uses a probe which emits sound waves. These sound waves penetrate into the skin and then bounce back to create detailed images on the screen. This helps the doctors accurately diagnose various conditions. Its portable laptop design allows it to be used in different medical settings, such as hospitals, clinics, and even bedside in patient rooms. This makes the Logiq E machine a versatile and practical tool for healthcare facilities.

Key Features

• It’s designed primarily for anesthesiology, with special software and tools to see needles clearly during procedures.
• The Coded Harmonic Imaging (CHI) provides better contrast and clearer images.
• It has two imaging modes that help detect tissues, nerves, and metal, making it easier to guide needles during injections.
• Easily connects to both wired and wireless networks for seamless data transfer. It is easy to carry and use in various medical settings.
• Enables quick and precise assessments, which improves patient care.Best for anesthesia, musculoskeletal, and rheumatology imaging.
• Features like CrossXBeam and Speckle Reduction Imaging (SRI-HD) give detailed and clear images.
• User interfaces can be customized to make the workflow easier and improve the user experience.
• The 15-inch color LCD screen provides bright and clear images for better diagnostics.

Technical Specifications

Display

• 15-inch high-resolution color LCD monitor

Dimensions and Weight

• Height: 61 mm (2.49 inches) console only.
• Width: 340 mm (13.88 inches).
• Depth: 287 mm (11.71 inches) console only.
• Weight: 4.6 kg (10.1 lbs).

Operating Modes

• B-Mode.M-Mode.
• Color Flow Mode (CFM).
• Power Doppler Imaging (PDI).
• Continuous Wave Doppler (optional).
• Pulse Wave Doppler (PWD).

Imaging Modes

• CrossXBeam for enhances spatial resolution.
• Speckle Reduction Imaging (SRI-HD) for clearer images.
• Coded Harmonic Imaging (CHI) for improved contrast.

Connectivity

• Wired and wireless network integration.

Ultrasound Probes and Transducers

• Wide range of new transducers and probes for various applications.

Portability

• Laptop-style design for easy transport and use in multiple settings.

User Interface

• Customizable user interface to streamline workflow.

Field of View

• Virtual Convex and Virtual Apex technology for expanded imaging views.

Power Supply

• Voltage: 100-240 V AC.
• Frequency: 50/60 Hz.
• Power: Max. 130 VA with Peripherals.

Storage

• Built-in storage for saving and retrieving images

Probe Compatibility

1. Linear Array Probes (Vascular, Small Parts, MSK, Anesthesia)

• 12L-RS (4.0–13.0 MHz): Linear array probe suitable for vascular, small parts, musculoskeletal, and anesthesia imaging.
• 9L-RS (4.0–10.0 MHz): Linear array probe designed for vascular, small parts, musculoskeletal, and anesthesia imaging.
• L10-22-RS (10.0–22.0 MHz): High-frequency linear array probe optimized for small parts, musculoskeletal, and vascular imaging.
• L8-18i-RS (6.7–18.0 MHz): High-frequency linear array probe tailored for small parts, musculoskeletal, and vascular imaging.
• L4-12t-RS (4.2–13.0 MHz): Linear array probe suitable for vascular, small parts, musculoskeletal, and anesthesia imaging.

2. Convex Array Probes (Abdominal, OB/GYN, Urology)

• C1-5-RS (1.5–5.0 MHz): Convex array probe designed for abdominal, obstetrics, gynecology, and urology imaging.
• 4C-RS (2.0–5.5 MHz): Convex array probe optimized for abdominal, obstetrics, gynecology, and urology imaging.

3. Phased Array Probes (Cardiac, Transcranial, Pediatric)

• 3Sc-RS (1.3–4.0 MHz): Phased array probe suitable for adult cardiac, pediatric, abdominal, and transcranial imaging.
• 6S-RS (2.5–7.0 MHz): Phased array probe designed for pediatric cardiac, vascular, and transcranial imaging.
• 6Tc-RS (3.3–6.0 MHz): Transesophageal echocardiography (TEE) probe tailored for adult cardiac imaging.

4. Endocavitary & Specialty Probes (OB/GYN, Urology, Intraoperative)

• E8C-RS (4.0–10.0 MHz): Endocavitary probe suitable for obstetrics, gynecology, urology, transvaginal, and transrectal imaging.
• 8C-RS (4.0–10.0 MHz): Micro-convex probe designed for pediatric abdominal, neonatal head, and intraoperative imaging.

5. Pencil (CW Doppler) Probes (Cardiac Doppler)

• P2D-RS (2.0 MHz): Continuous wave Doppler probe dedicated to cardiac applications.

If you require further details on specific probes or additional information, feel free to ask.

Applications

1. Anesthesiology Department: The Logiq E machine is best for providing clear visualization for accurate needle placement during complex procedures.
2. Musculoskeletal Imaging: It is perfect for muscles, tendons, ligaments, and joint injuries diagnosis and treatment.
3. Rheumatology: Helps in diagnosing conditions such as arthritis with detailed joint and soft tissue images.
4. Vascular Scanning: The  high-resolution imaging allows detailed examination of blood vessels, detecting blockage, and clots.
5. Emergency Medicine: It offers immediate imaging for trauma assessments and detecting internal bleeding.
6. OB/GYN: Used in monitoring pregnancies and diagnosing gynecological conditions with detailed fetal and reproductive organ images.
7. Frequently Asked Questions

Does the GE Logiq E R8 support both linear and convex probes?

Yes, it supports a wide range of transducers, including linear and convex probes, to accommodate various imaging needs and applications.

What makes the GE Logiq E R8 suitable for emergency settings?

Its portability, quick setup, and reliable imaging capabilities make it ideal for emergency settings where rapid diagnostics and immediate decision-making are crucial.

How portable is the GE Logiq E R8?

It features a laptop-style design, making it very easy to transport and use in various medical settings.
