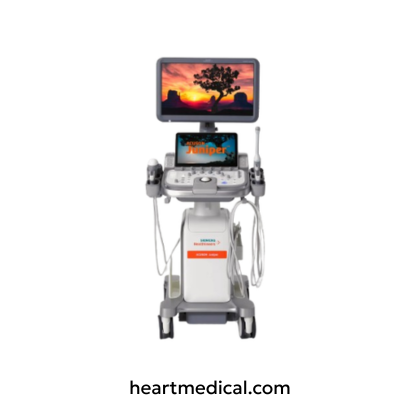

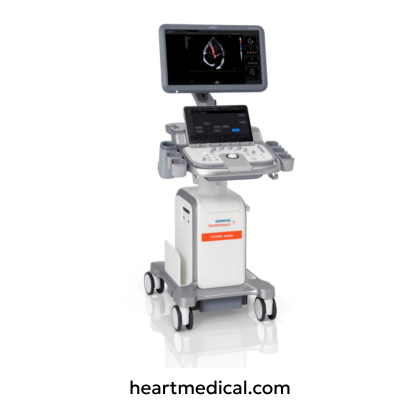

ACUSON Juniper Ultrasound System, CV Edition - SIEM-JUNIPER-CV-US

Description

Compact and Powerful Cardiovascular Imaging for Comprehensive Care

The ACUSON Juniper Ultrasound System, CV Edition, combines portability and performance to deliver exceptional cardiovascular imaging. Designed for diverse clinical environments, it integrates advanced technologies and AI-driven tools to support detailed cardiac and vascular assessments. Its compact design ensures mobility without compromising on diagnostic capabilities.

Key Features

• Velocity Vector Imaging (VVI): Enables detailed evaluation of myocardial motion and mechanics, including global longitudinal strain.
• Stress Echo Application: Features ECG-triggered acquisition and advanced wall motion scoring for dynamic stress echo examinations.
• AI-Driven Tools: Includes eSie Measure and eSie Left Heart for automated detection and measurement of cardiac structures.
• Enhanced Transducer Support: Compatible with a wide range of transducers, including CW transducers for advanced cardiovascular imaging.
• Lightweight and Compact Design: Portable and adaptable for use in various clinical settings.

Technical Specifications

• Imaging Modes: 2D, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, and 3D imaging.
• Transducer Ports: Five active transducer ports and one CW port, supporting 19 transducers.

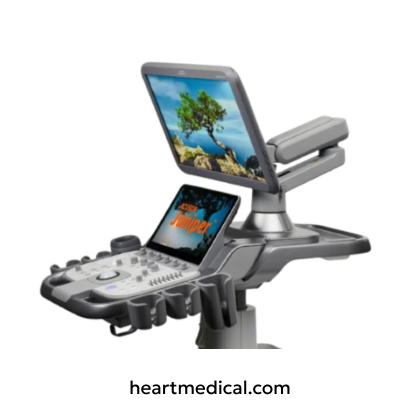

• Display: 13.3-inch high-resolution touch display with intuitive user interface.
• Data Management: DICOM-enabled for seamless data sharing and storage.
• Weight and Dimensions: Lightweight at 27% less than comparable systems, designed for easy mobility.

Probe Compatibility

Curved Array Probes

• 5C1: Abdomen, OB/GYN, Urology
• 7C2: Abdomen, OB/GYN, Pediatrics
• 8VC3: Abdomen, OB/GYN, Urology

Linear Array Probes

• 11L4: Small Parts, Vascular, Musculoskeletal
• 12L3: Small Parts, Vascular, Musculoskeletal
• 13L4: Small Parts, Vascular, Musculoskeletal
• 16L4: Small Parts, Vascular, Musculoskeletal
• 18H5: Small Parts, Vascular, Musculoskeletal

Microconvex Array Probes

• 11M3: Abdomen, Pediatrics

Phased Array Probes

• 5P1: Cardiac, Transcranial Doppler (TCD)

Vector Array Probes

• 8V4: Cardiac, Vascular
• 10V4: Cardiac, Vascular
• 5VT: Cardiac, Vascular

Endocavity Probes

• 9VE3: OB/GYN, Urology
• 10MC3: OB/GYN, Urology
• 9MC3: OB/GYN, Urology

Pencil Probes (CW Doppler)

• CW2: Cardiac, Peripheral Vascular
• CW5: Cardiac, Peripheral Vascular
• CW8: Cardiac, Peripheral Vascular

Applications

• Adult Echocardiography: High-resolution imaging for cardiac function assessment.
• Pediatric Echocardiography: Specialized tools for evaluating pediatric cardiovascular health.
• Stress Echocardiography: Customizable protocols for precise stress echo exams.
• Vascular Imaging: Comprehensive imaging of vascular structures and blood flow.
• Interventional Cardiology: Real-time imaging for accurate guidance during procedures.

Frequently Asked Questions

What makes the ACUSON Juniper CV Edition unique?

Its combination of portability, advanced imaging technologies, and AI-driven tools ensures precise and efficient cardiovascular diagnostics.

Can the system perform stress echocardiography?

Yes, it features a complete stress echo package with advanced wall motion scoring and customizable protocols.

Is the system suitable for pediatric applications?

Yes, it includes specialized tools and transducers for pediatric echocardiography.

Does the system support AI-driven measurements?

Yes, tools like eSie Measure and eSie Left Heart automate cardiac measurements, enhancing accuracy and consistency.

How portable is the ACUSON Juniper CV Edition?

Its compact, lightweight design makes it ideal for use in various clinical environments, including bedside and outpatient settings.
