Description
Advanced Imaging with Enhanced Workflow Efficiency

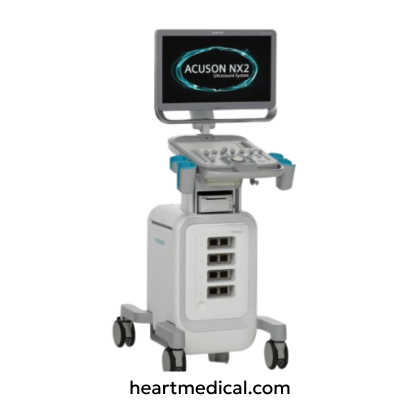

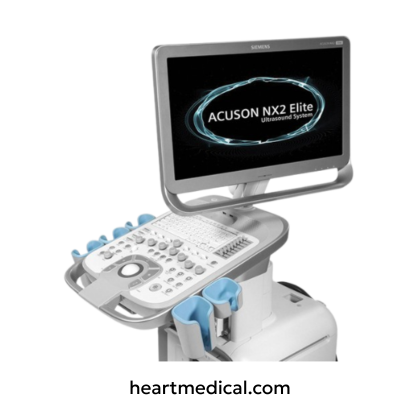

The ACUSON NX2 Elite is a premium addition to the NX Series, designed to deliver superior imaging performance across various clinical applications. It features a 21.5-inch, 1080p HD display, providing a 30% larger monitor with twice the pixel density for enhanced image detail resolution. The system integrates 16 advanced imaging technologies, including Advanced fourSight™ technology, DTI™ Doppler Tissue Imaging capability, and eSie Touch™ elasticity imaging, ensuring precise diagnostics and improved patient outcomes. Its user-centric design promotes efficiency, making it a reliable choice for healthcare professionals.
Key Features
-
High-Resolution Display: 21.5-inch, 1080p HD monitor offering enhanced image clarity.
-
Advanced Imaging Technologies: Includes Advanced fourSight™ technology, DTI™ Doppler Tissue Imaging, and eSie Touch™ elasticity imaging for comprehensive diagnostic capabilities.
-
Transducer Compatibility: Supports CW2 and CW5 pencil transducers, as well as the 10MC3 endocavity transducer, accommodating a wide range of clinical needs.
-
User-Programmable Keys: Three times more programmable keys, reducing tactile keystrokes by up to 20%, streamlining workflow.
-
Ergonomic Design: Simplified control panel designed to enhance operator efficiency and comfort.
Technical Specifications
-
Display: 21.5-inch, 1080p HD monitor.
-
Transducer Support: Compatible with a comprehensive portfolio of transducers, including CW2, CW5, and 10MC3 endocavity transducers.
-
Imaging Technologies: Features 16 advanced imaging technologies for diverse clinical applications.
-
Control Panel: Simplified design with user-programmable keys to enhance workflow efficiency.
-
System Architecture: Built for dependable and unsurpassed imaging performance across clinical applications.
Probe Compatibility
Curved Array Probes
CH5-2: Obstetrics, Early Obstetrics, Abdomen, Renal, Pelvis, Emergency Medicine
C5-2v: Obstetrics, Early Obstetrics, Abdomen, Renal, Pelvis, Emergency Medicine, Musculoskeletal, Vascular, Lung
C8F3: Abdomen, Early Obstetrics, Fetal Echo, Gynecology, Obstetrics, Pelvic Floor
Linear Array Probes
L10-5v: Breast, Cerebrovascular, Emergency Medicine, Musculoskeletal, Orthopedic, Peripheral Vascular, Testicle, Thyroid, Venous
VF10-5: Breast, Cerebrovascular, Emergency Medicine, Musculoskeletal, Orthopedic, Peripheral Vascular, Testicle, Thyroid, Venous
Phased Array Probes
P4-2: Obstetrics, Abdomen, Cardiac, Emergency Medicine (Cardiac)
Endocavity Probes
EC9-4: Obstetrics, Early Obstetrics, Gynecology, Emergency Medicine, Prostate
10MC3: Early Obstetrics, Gynecology, Obstetrics, Urology
Pencil Probes (CW Doppler)
CW2: Adult Echo, Pediatric Echo
CW5: Cerebrovascular, Pediatric Echo
Applications
-
General Imaging: Abdominal, renal, pelvic, and emergency medicine assessments.
-
Obstetrics and Gynecology: Early obstetrics and pelvic imaging.
-
Musculoskeletal: Evaluation of muscles, tendons, and joints.
-
Vascular Imaging: Assessment of vascular structures and blood flow dynamics.
-
Lung Imaging: Lung assessments for various clinical indications.
Frequently Asked Questions
How does the ACUSON NX2 Elite enhance workflow efficiency?
The system features user-programmable keys and a simplified control panel, reducing operator effort and accelerating routine workflows.
Is the ACUSON NX2 Elite suitable for a variety of clinical applications?
Yes, it offers versatile capabilities covering a wide range of clinical applications and is compatible with a comprehensive portfolio of transducers.
Can the ACUSON NX2 Elite be upgraded to meet evolving clinical needs?
Yes, it is a scalable and upgradeable system, allowing for cost-effective operation and adaptability to changing clinical requirements.
What imaging technologies are integrated into the ACUSON NX2 Elite?
The system features 16 imaging technologies, including Advanced fourSight™ technology, DTI™ Doppler Tissue Imaging capability, and eSie Touch™ elasticity imaging.
How does the ACUSON NX2 Elite ensure consistent clinical outcomes?
It delivers high image quality for precise diagnostics, providing reliable imaging for consistent clinical outcomes.
