ACUSON Origin Cardiovascular Ultrasound System -11668590

Description

Revolutionizing Cardiac Care with AI-Powered Precision

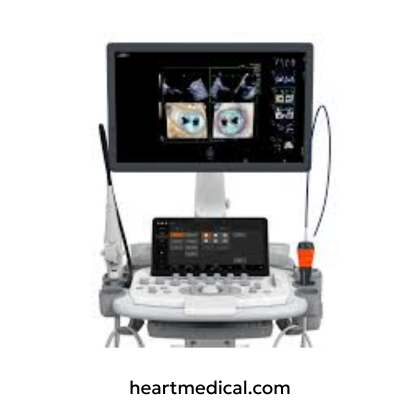

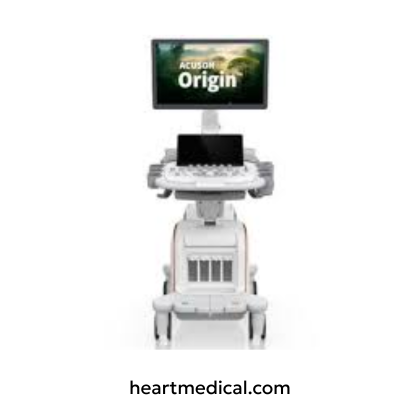

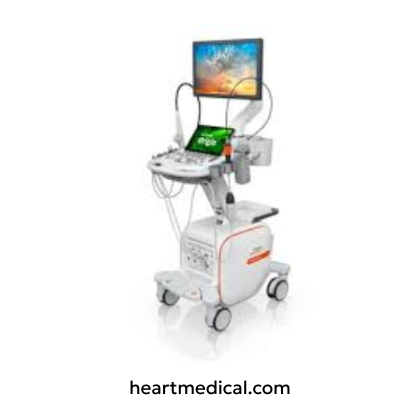

The ACUSON Origin™ is a state-of-the-art cardiovascular ultrasound system designed to meet the increasing demands of complex cardiac cases. It integrates advanced artificial intelligence (AI) technology to enhance workflow efficiency and diagnostic accuracy. The system offers over 5,600 AI-powered measurements, utilizing a vast database of 2 billion images across multiple modalities. This extensive AI integration enables automated view recognition and precise quantification of cardiac parameters, facilitating consistent and reproducible results. The ergonomic design ensures user comfort, reducing strain during prolonged procedures.

Key Features

• AI-Powered Measurements: Provides over 5,600 automated measurements for enhanced diagnostic precision.
• 2D HeartAI: Automatically estimates left ventricular volumes and global longitudinal strain (GLS) with a 98% correlation coefficient.
• 4D HeartAI: Delivers real-time quantification of all four cardiac chambers with 96% accuracy compared to expert assessments.
• AI Assist: Recognizes cardiac structures upon transducer contact, facilitating accurate Doppler placement.
• Ergonomic Design: Features an intuitive interface and control layout to minimize user fatigue.

Technical Specifications

• Display: High-resolution monitor for detailed cardiac imaging.
• Transducer Support: Compatible with a comprehensive range of transducers for various cardiovascular applications.
• Imaging Modes: Supports 2D, 3D/4D, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, and Continuous Wave Doppler.
• Data Management: Integrated system with DICOM connectivity for seamless information sharing and storage.
• System Architecture: Built for dependable and unsurpassed imaging performance across clinical applications.

Probe Compatibility

Curved Array Probes
9C2: Adult abdominal, OB/GYN, pediatric, and peripheral vascular imaging.
5C1: Abdominal, OB/GYN, pediatric, and peripheral vascular imaging.
DAX: Deep abdominal imaging, suitable for adult and pediatric applications.

Linear Array Probes
14L5: Small parts, vascular, musculoskeletal, breast, and thyroid imaging.
7L2: Superficial structures, including small parts and musculoskeletal imaging.
10L4: High-resolution imaging for small parts and superficial structures.
HLX: High-frequency imaging for detailed visualization of superficial structures.

Phased Array Probes
4V1: Cardiac imaging, including transthoracic echocardiography (TTE) and transcranial Doppler (TCD).
4V1c: Cardiac imaging with enhanced capabilities for contrast-enhanced studies.
8V3: Advanced cardiac imaging, including stress echocardiography.
10V4: High-frequency cardiac imaging for detailed structural assessment.

Endocavity Probes
Z6T: Transesophageal echocardiography (TEE) for detailed visualization of cardiac structures.
5Z1: Advanced TEE imaging with a wide field of view for comprehensive cardiac assessment.
5V1: TEE imaging with enhanced resolution for detailed cardiac evaluation.

Pencil Probes (CW Doppler)
CW2: Cardiac and peripheral vascular imaging, suitable for continuous wave Doppler studies.
CW5: High-frequency continuous wave Doppler imaging for detailed vascular assessments.

Intracardiac Echocardiography (ICE) Catheters
AcuNav Crystal 2D: Intracardiac imaging for real-time visualization during electrophysiological procedures.
SOUNDSTAR 9F: Advanced ICE catheter for detailed intracardiac structural assessment

Applications

• Diagnostic Echocardiography: Comprehensive cardiac assessments, including transthoracic and transesophageal echocardiograms.
• Structural Heart Procedures: Guidance for interventions such as valve repairs and replacements.
• Electrophysiology: Assists in mapping and ablation procedures for arrhythmia management.
• Pediatric Cardiology: Specialized imaging tailored for pediatric cardiac evaluations.

Frequently Asked Questions

How does the ACUSON Origin™ enhance diagnostic accuracy?

Its AI-powered features, including 2D and 4D HeartAI, provide automated and precise measurements, reducing variability and improving diagnostic confidence.

Is the system suitable for various cardiovascular applications?

Yes, it is designed to address the entire continuum of cardiovascular care, from diagnostics to interventional procedures.

What ergonomic features does the ACUSON Origin™ offer?

The system includes an intuitive interface and control layout, reducing repetitive motions and minimizing user fatigue during extended use.

How does AI Assist improve workflow efficiency?

AI Assist recognizes cardiac structures upon transducer contact, enabling accurate and swift Doppler placement, thereby streamlining the imaging process.

Can the system integrate with existing data management platforms?

Yes, it offers DICOM connectivity, allowing seamless integration with PACS and EMR systems for efficient data management.
