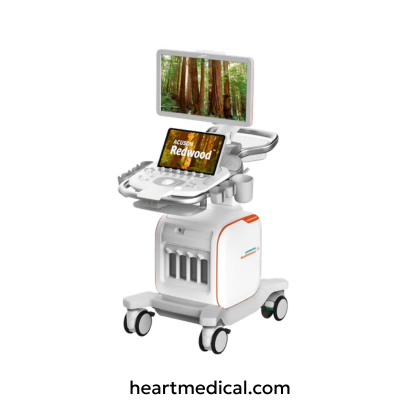

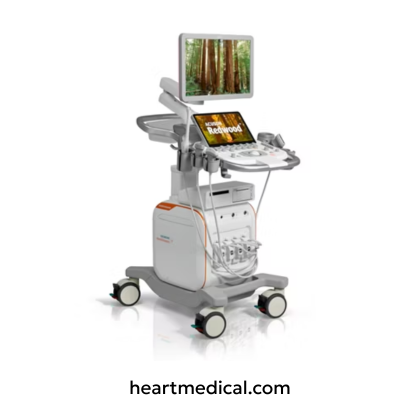

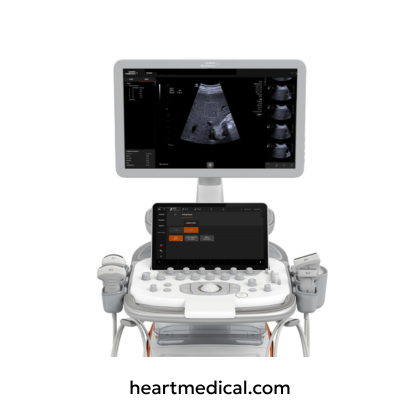

ACUSON Redwood Ultrasound System, CV Edition - SIEM-REDWOOD-CV-US

Description

Comprehensive Cardiovascular Imaging with Advanced AI-Driven Technology

The ACUSON Redwood Ultrasound System, CV Edition, is a high-performance cardiovascular imaging solution tailored for precision and efficiency. Designed to address the specific needs of cardiology, it integrates advanced technologies, including AI-powered tools, for consistent and accurate diagnostics. Its lightweight, compact design ensures mobility and adaptability across clinical settings.

Key Features

• Coherent Image Formation (CIF): Produces high-resolution images by leveraging phase and amplitude data for improved alignment and clarity.
• UltraArt Universal Image Processing: Provides real-time image adjustments, enhancing contrast resolution and consistency across users.
• AI-Powered Measurement Tools: Includes features like eSie Measure and eSie Left Heart, automating critical measurements with precision.
• Stress Echo Package: Offers customizable stress echo protocols with advanced wall motion scoring.
• Ergonomic Design: Lightweight and compact with a user-friendly interface to improve workflow and reduce operator fatigue.

Technical Specifications

• Imaging Modes: 2D, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, and 3D/4D imaging.
• Transducer Compatibility: Supports a range of transducers for adult and pediatric echocardiography and vascular imaging.
• Display: High-resolution monitor with intuitive touch interface.
• Data Management: Fully DICOM-compatible for seamless integration with existing data systems.
• Weight and Portability: 27% lighter and 36% smaller than many systems in its class, facilitating ease of movement.

Probe Compatibility

Curved Array Probes

• 5C1: Abdomen, OB/GYN, Pediatrics
• 9C3: Abdomen, OB/GYN, Pediatrics

Linear Array Probes

• 10L4: Small Parts, Vascular, Musculoskeletal
• 14L5: Small Parts, Vascular, Musculoskeletal
• 18L6: Small Parts, Vascular, Musculoskeletal
• 18H6: Small Parts, Vascular, Musculoskeletal

Endocavity Probes

• 9EC4: OB/GYN, Urology
• 9VE4: OB/GYN, Urology

Vector Array Probes

• 10V4: Cardiac, Vascular

Phased Array Probes

• 4V1: Cardiac

Transesophageal Echocardiography (TEE) Probes

• V5Ms: Adult transesophageal echocardiography

Pencil Probes (CW Doppler)

• CW2: Cardiac, Peripheral Vascular
• CW5: Cardiac, Peripheral Vascular

Applications

• Adult Echocardiography: Comprehensive imaging for cardiac function assessment.
• Pediatric Echocardiography: Specialized transducers and imaging modes for pediatric heart evaluations.
• Stress Echocardiography: Advanced tools for dynamic cardiac stress testing.
• Vascular Imaging: Detailed imaging of vascular structures and blood flow dynamics.
• Interventional Cardiology: Precision imaging for real-time guidance during interventions.

Frequently Asked Questions

What are the unique features of the ACUSON Redwood, CV Edition?

The system combines Coherent Image Formation, AI-driven measurement tools, and UltraArt Universal Image Processing to deliver superior cardiovascular imaging.

Can it support stress echocardiography?

Yes, it includes a comprehensive stress echo package with customizable protocols.

Is the ACUSON Redwood CV Edition portable?

Yes, its lightweight and compact design make it easy to transport and adapt to various clinical environments.

Does it integrate with existing hospital data systems?

Yes, the system is fully DICOM-compatible, enabling seamless data sharing and storage.

What types of transducers are supported?

It supports a wide range of transducers for adult and pediatric echocardiography, as well as vascular imaging.
