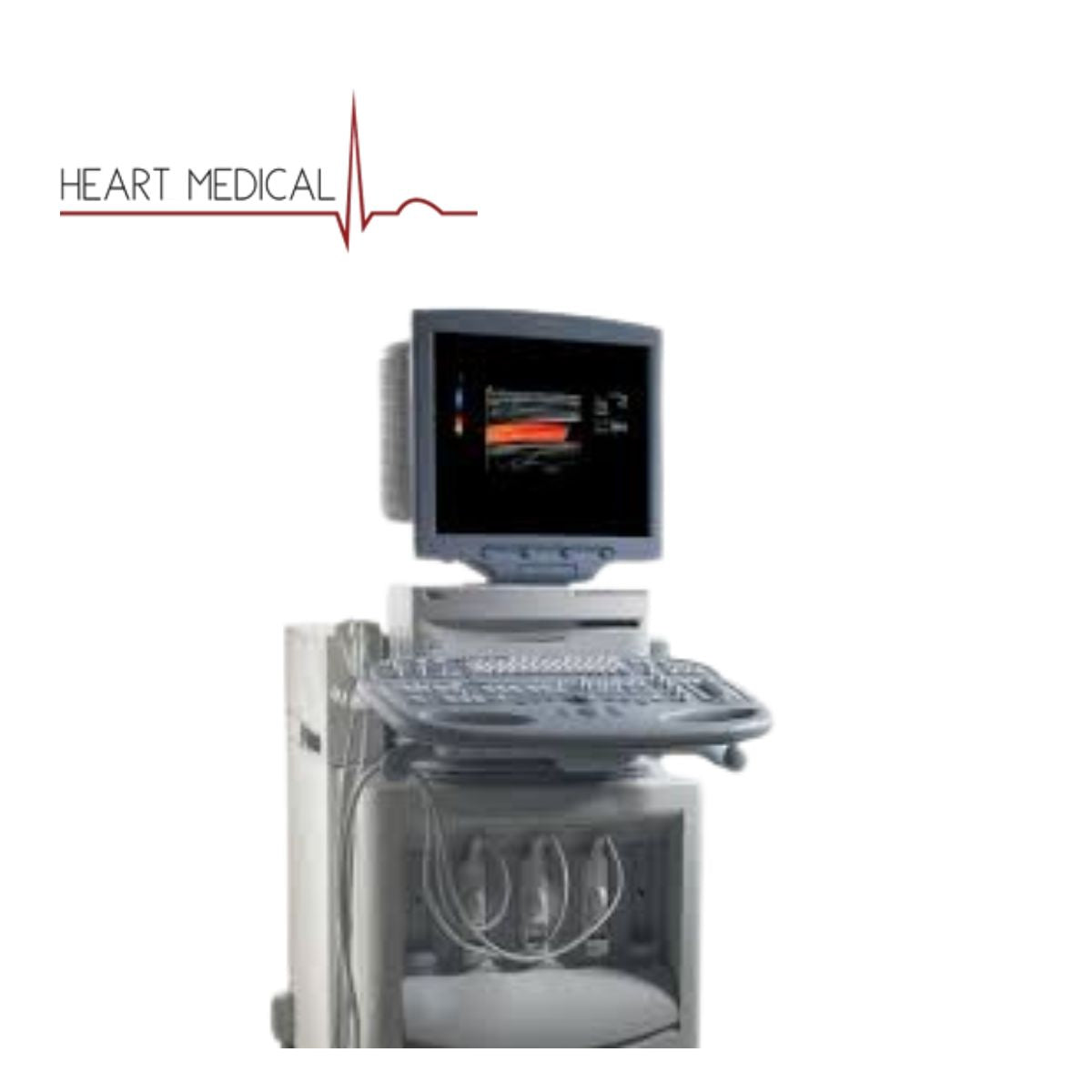

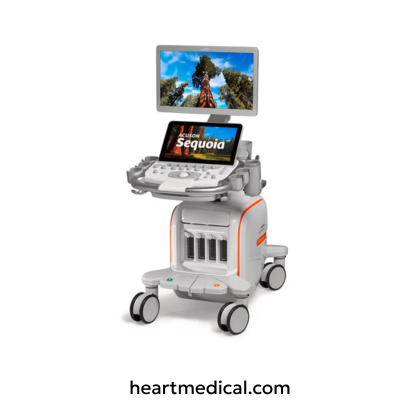

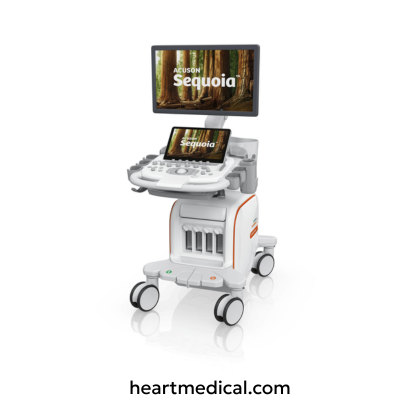

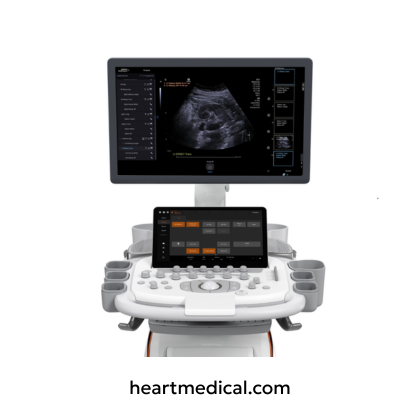

ACUSON Sequoia C256 Ultrasound System - SIEM-SEQUOIA-C256-US

Description

Advanced Cardiovascular Imaging with User-Friendly Design

The ACUSON Sequoia C256 is a high-performance ultrasound system engineered to deliver exceptional cardiovascular imaging. Despite its earlier introduction, it remains a reliable and valuable tool in clinical practice, offering advanced features that facilitate comprehensive cardiac assessments.

Key Features

• Advanced Cardiovascular Capabilities: Performs cardiac calculations, echocardiograms, tissue harmonics, and more, supporting a wide range of cardiac imaging needs.
• User-Friendly Interface: Designed with an intuitive interface to streamline workflow and reduce examination time.
• TEE Compatibility: Supports Transesophageal Echocardiography (TEE), enhancing diagnostic capabilities for detailed cardiac evaluations.
• Comprehensive Imaging Modes: Offers B-mode, M-mode, Color Doppler, Pulsed Wave Doppler, and Continuous Wave Doppler imaging.
• Native TEQ Dynamic Technology: Automatically optimizes 2D images by adjusting brightness and gain, ensuring consistent image quality.


Technical Specifications

• Display: 15-inch color CRT display providing clear and detailed images.
• Transducer Support: Compatible with a variety of transducers, including 3V2c, 5V2c, and 7V3c, covering a broad spectrum of cardiac imaging applications.

• Imaging Modes: Supports 2D, M-Mode, Color Doppler, Pulsed Wave Doppler, and Continuous Wave Doppler imaging.
• Data Management: Equipped with DIMAQ integrated workstation for efficient data management and storage.
• Dimensions: Height: 148 cm; Length: 66 cm; Width: 123 cm; Weight: approximately 4.06 lbs.


Probe Compatibility

Phased Array Probes

• 4V1c: Transthoracic adult and pediatric echocardiography, contrast agent studies, coronary artery imaging, stress echo, transcranial applications.
• 4V1: General and deep abdominal vascular imaging.
• 5V2c: Adult echocardiography, transcranial Doppler.
• 7V3c: Pediatric and fetal echocardiography.
• 8V3c: Pediatric and fetal echocardiography.
• 10V4c: Neonatal and pediatric echocardiography.

Curved Array Probes

• 4C1: Abdominal vascular imaging, fetal heart assessments, imaging in technically challenging patients.
• 6C2: Abdominal vascular imaging, fetal heart assessments.
• C6F2: 3D/4D imaging for OB/GYN, abdomen.
• C8F3: 3D/4D imaging for OB/GYN, pelvic floor.

Linear Array Probes

• 6L3: Medium and deep arterial and venous studies, peripheral vascular imaging.
• 8L5: Extracranial vascular imaging, medium-depth arterial and venous studies, peripheral vascular imaging.
• 9L4: Cerebrovascular imaging, contrast agent imaging, peripheral vascular, superficial vascular imaging.
• 15L8w: Superficial vascular imaging.
• 17L5 HD: Contrast agent imaging, superficial vascular imaging.

Endocavitary Probes

• EC9-4: Endocavitary imaging for OB/GYN and urology applications.
• EV9F3: 3D/4D endovaginal imaging for OB/GYN.
• EV9F4: Endovaginal imaging for OB/GYN applications.

Transesophageal Echocardiography (TEE) Probes

• V5Ms: Adult transesophageal multiplane echocardiography.
• V7M: Pediatric and adult transesophageal mini-multiplane echocardiography.

Intraoperative Probes

• VF13-5SP: Intraoperative imaging applications.

Specialty Probes

• AcuNav 8F: Adult intracardiac echocardiography.
• Aux CW: Non-imaging, transthoracic adult and pediatric continuous wave spectral Doppler echocardiography.

Applications

• Cardiology: Comprehensive cardiac assessments, including adult and pediatric echocardiography.
• Vascular Imaging: Evaluation of vascular structures and blood flow dynamics.
• Abdominal Imaging: Assessment of abdominal organs with high-resolution imaging.
• Small Parts Imaging: Detailed imaging of small anatomical structures.

Frequently Asked Questions

How does the ACUSON Sequoia C256 enhance diagnostic confidence?

Its advanced cardiovascular capabilities, including tissue harmonics and comprehensive imaging modes, provide detailed and accurate assessments, enhancing diagnostic confidence.

Is the ACUSON Sequoia C256 suitable for various clinical applications?

Yes, it offers versatile capabilities covering cardiology, vascular imaging, abdominal imaging, and small parts imaging.

How does the system's design support user efficiency?

Its user-friendly interface and Native TEQ Dynamic Technology streamline workflow and reduce examination time, supporting user efficiency.

Can the ACUSON Sequoia C256 be integrated into existing data management systems?

Yes, it features the DIMAQ integrated workstation for efficient data management and storage, facilitating integration into existing systems.

What transducer configurations are available with the ACUSON Sequoia C256?

The system supports a variety of transducers, including 3V2c, 5V2c, and 7V3c, covering a broad spectrum of imaging applications.
