Baxter ELI 250c EKG Machine

Description

The next-generation monitor that provides a lightweight and compact solution for comprehensive functionality.

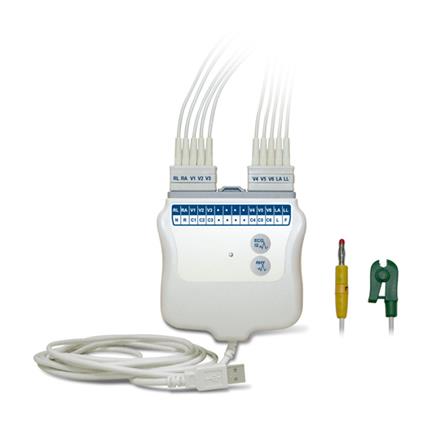

The Baxter ELI 250c EKG Machine is a 12-Lead Electrocardiograph that features both standard PDF reporting and enhanced bi-directional EMR connectivity for streamlined data management. It comes equipped with a wired USB module, with an optional wireless module available for added flexibility.

The Baxter ELI 250c EKG Machine is engineered for precision, ease of use, and adaptability, catering to the needs of modern healthcare environments with its comprehensive features and connectivity options.

Features

• The best feature, which selects the optimal 10 seconds of ECG data, reducing the need for repeat tests.
• Vivid color displays for enhanced visibility of waveforms, supporting 3, 6, 8, or 12-lead data presentations.
• Advanced data capture at 1,000 samples per second per channel for comprehensive ECG signal analysis, alongside 40,000 samples per second per channel specifically for unmatched pacemaker spike detection.
• Digital integration facilitated through a standard LAN connection, with an optional WiFi connection for wireless communication.
• The device captures all 12 leads simultaneously and displays them on a backlit, quarter VGA color LCD screen for clear, easy-to-read waveforms.
• It adheres to or surpasses ANSI/AAMI EC11 and ES1 standards for input impedance, dynamic range, common mode rejection, and patient leakage current.
• Optional Veritas resting ECG interpretation algorithm incorporates age and gender-specific criteria to aid in accurate diagnostics.
• Printing capabilities include a computer-controlled dot array thermal printer, supporting various speeds and report formats for flexible documentation needs.
• The system offers high fidelity with a frequency response range from 0.05 to 300 Hz and includes multiple filtering options to ensure signal clarity.
• Designed for safety, it meets Class I, Type CF defibrillation-proof standards.
• ECG data can be stored internally up to 40 records, witah an option to expand storage up to 200 ECGs.
• Operates on a universal AC power supply or an internal rechargeable battery, ensuring reliability and convenience in any clinical environment.

Specifications

Lightweight at 11.25 lbs. (5.1 kg) and compact with dimensions of 15.5 x 17 x 4 inches, making it portable and easy to accommodate in various settings.
Note: Formally known as Burdick ELI 250c ECG Machine
