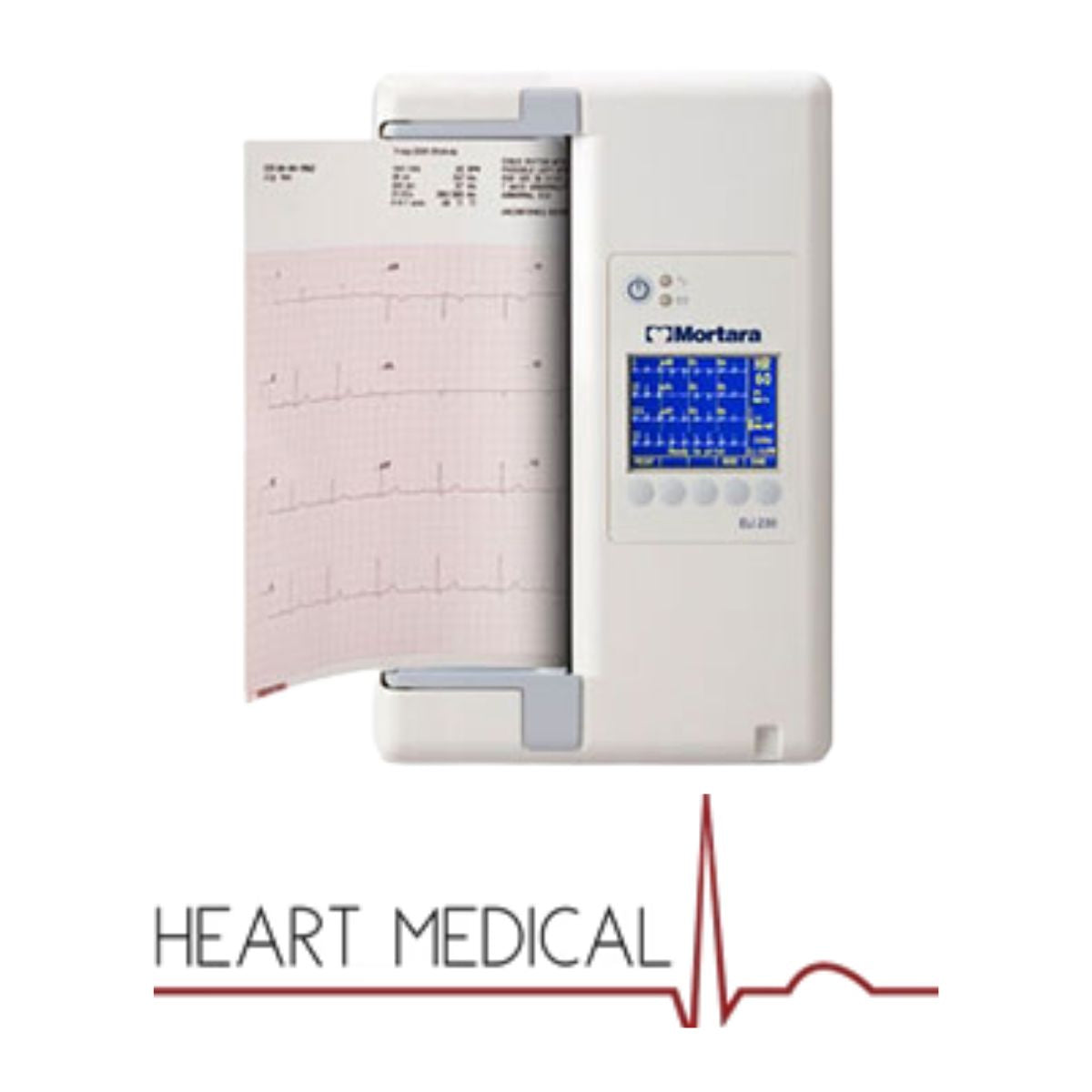

Burdick ELI 230 EKG Machine - BUR-ELI230-US

Description

High-Performance Resting Electrocardiography Machine

The ELI 230 electrocardiography machine is a top-of-the-line ECG machine designed for high performance and accuracy in cardiac monitoring. This device can have modern and rich features to record the heart's electrical activity while the patient rests.

ELI 230 EKG machine features advanced algorithms for precise interpretation, customizable reports, and seamless data management. It has the best and most updated technology, which features the automatic selection of ECG signals. Burdick also provides accurate ECG interpretations for both pediatric and adult that can be easily transferred to a system through USB.

Key Features

• High-Resolution Color Display: ELI 230's high-resolution color display previews 3,8 or 12 lead ECG data.
• Real-Time Preview: A real-time preview of the 12-lead ECG and post-acquisition review is provided.
• Mortara Veritas Interpretation Algorithm: An optional feature that uses gender and age criteria to provide alternative opinions for resting ECG interpretation.
• 10-Seconds of ECG Data: Extracts the optimal 10 seconds of ECG data from memory, reducing the need for repeated ECGs.
• WEM Wireless Acquisition or the AM12 Acquisition Module: Choose between the WEM or AM12 Module; both improve work flexibility and feature a lead fail indicator, replaceable wired lead, and remote control buttons for ECG acquisition and printing.
• Efficient Sampling Rate: The device's sampling rate is 40,000 samples per second per channel, sufficient to produce a high-quality diagnostic result.

Technical Specifications

• Weight: 5.8 lbs (2.63 kgs) with battery
• Dimensions: 11.25 x 7.5 x 2.75”
• Power: Universal AC power supply 110 VA
• Resolutions: 1.875 microvolt LSB
• Connectivity: review or print from ELI Link V4.xx
• Frequency Response: 0.05 to 300Hz
• Device Classification: Class I, Type CF defibrillation-proof applied parts
• Gain Settings: 5, 10, or 20 mm/mv
• ECG Storage: Internal storage of up to 20 ECGs, external storage to USB memory stick
• Instrument Type: 12-lead electrocardiograph
• Input Channels: Simultaneous acquisition of all 12 leads
• A/D Conversion: 20 bits (1.17 microvolt LSB)
• Memory Capacity: Up to 20 ECGs
• Digital Sampling Rate: 40,000 s/sec/channel used for pacemaker detection; 1000 s/sec/channel used for recording and analysis
• Standard Leads Acquired: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
• Filters: High-performance baseline filter; AC interference filter 50/60 Hz; low-pass filters 40 Hz, 150 Hz, or 300 Hz

Applications

• Cardiac Assessment: Effectively diagnose heart diseases such as arrhythmias and ischemia.
• Routine Heart Monitoring: Suitable for regular and efficient ECG check-ups in clinics and hospitals.
• Pre-operative Assessment: Evaluate heart function before surgeries to identify potential risks.
• Emergency Care: Portable and lightweight design makes them suitable for emergencies and mobile clinics.
• Patient Monitoring: Useful heart health tracking over time with stored ECG data for ongoing assessment.
• Electrocardiographic Analysis: Utilizes an auto interpretation feature for quick and accurate analysis of ECG results.

Frequently Asked Questions

Is the Burdick ELI 230 portable?

Yes, the ELI 230 is compact and lightweight, making it easy to transport and use in different settings.

Can I perform a 12-lead ECG with this machine?

The ELI 230 offers comprehensive 12-lead ECG readings for accurate evaluation and assessment.

Is this device suitable for pediatric patients as well?

Yes, the Burdick ELI 230 has advanced algorithms that can provide accurate ECG interpretations for both adult and pediatric patients.
