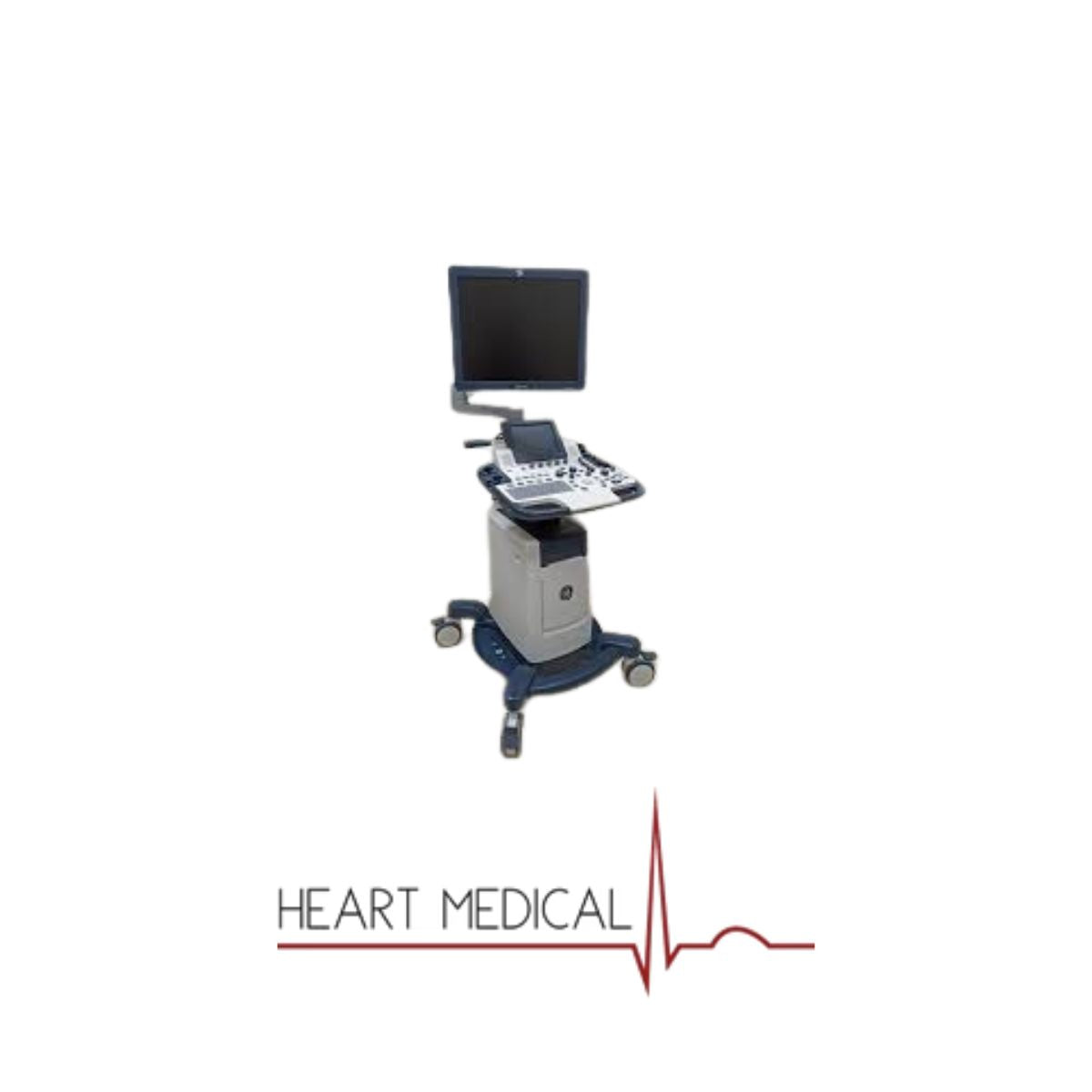

GE Logiq F8 Ultrasound Machine - GELOGIQF8

Description

High-quality Imaging for 3D Constriction Examination

The GE Logiq F8 Ultrasound provides reliable and superior diagnostic imaging in many clinical contexts. Medical professionals find it easy to use for efficient patient care. Its automatic modes and extra probe holding capacity increase its flexibility for accurate three-dimensional constriction examination.

GE Logiq F8 Urology Ultrasound integrates high performance and ergonomic design to provide patient comfort during extended scanning sessions. Its built-in technology and features enhance the efficacy of clinical workflow and disease examination.

Key Features

• Logiq View: Allows panoramic imaging and offers detailed visibility of sizable anatomical regions in just one image.
• Auto IMT: Automatically gauges the carotid artery's intima-media thickness, which is vital information for determining cardiac risk factors.
• Anatomical M-Mode: Improves cardiac diagnostics by offering accurate measurements from structures that move by capturing data at various anatomical angles.
• Easy 3D simplifies obtaining and examining three-dimensional photographs, which facilitates evaluating intricate constructions.
• Static 3D or Real Time 4D: Combines static three-dimensional and real-time four-dimensional images to provide increased visualization for gynecological, obstetric, and various other clinical applications.
• Extra Probe Holder:  Offers flexibility in managing several transducers throughout procedures by including an extra probe holder.

Technical Specifications

• Dimensions: 58.9  inches (height)  x 19.7 inches (width) x 31.9 inches (Maximum depth).
• Weight: 58 kg.
• Display: High-Resolution LCD 19’’(482.6 mm).
• Resolution: 1280 x 1024 pixels.
• Power Supply Voltage: 100-240 V AC.
• Frequency: 50/60 Hz.
• Design: Laptop Style Integrated with 4068 HDD.
• Connection: Wireless LAN Support (DCOM AND USB).
• Operating Mode: B-Mode, PDI Mode, Color Flow Mode, M Mode, PW/CW Mode, LOGIQ view, and Virtual Convex.

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

• 3Sc-RS (1.3–4.0 MHz): Phased array probe suitable for adult cardiac, pediatric, abdominal, fetal, and adult cephalic imaging.
• 6S-RS (2.5–7.0 MHz): Phased array probe designed for pediatric cardiac, vascular, pediatric, transcranial, and interventional guidance imaging.

2. Convex Array Probes (Abdominal & OB/GYN Imaging)

• 4C-RS (1.3–4.0 MHz): Convex array probe suitable for abdominal, OB/GYN, vascular, urology, thoracic, pediatric, musculoskeletal, and interventional guidance imaging.
• RAB2-6-RS (2.0–6.0 MHz): Convex array probe designed for 3D/4D obstetric and gynecological imaging.
• 8C-RS (4.0–11.0 MHz): Micro-convex probe tailored for pediatric abdominal and neonatal head imaging.

3. Endocavitary & Specialty Probes (Transvaginal, Urological, Intraoperative)

• E8C-RS (3.5–11.0 MHz): Endocavitary probe used for obstetrics, gynecology, urology, transvaginal, and transrectal imaging.
• E8Cs-RS (3.0–10.0 MHz): Endocavitary probe designed for obstetrics, gynecology, and urology applications.
• BE9CS-RS: Biplane probe optimized for prostate imaging, providing an additional field of view.

4. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

• L6-12-RS (6.0–13.0 MHz): Linear array probe suitable for vascular, pediatric, small parts, musculoskeletal, thoracic, and interventional guidance imaging.
• L8-18i-RS (6.7–18.0 MHz): High-frequency linear array probe designed for small parts, musculoskeletal, and vascular imaging.

5. Probe Accessories & Biopsy Guides

• Multi-angle disposable biopsy guides: Available for convex and linear probes to assist in guided procedures.
• Fixed-angle disposable or reusable biopsy guides: Compatible with endocavitary probes for precise targeting.

If you require further details on specific probes or additional information, feel free to ask.

Applications

• Vascular Imaging: This ultrasound system's sophisticated Doppler imaging makes it ideal for assessing blood flow to detect vascular disorders.
• Gynecology & Obstetrics: The GE Logiq F8 Ultrasound ensures precise monitoring throughout the pregnancy by supporting comprehensive gynecological evaluations and offering good fetal imaging.
• Cardiac Imaging: The Doppler feature makes cardiac imaging more accurate and helps assess the heart's function and structure.
• General Imaging: The GE Logiq F8 ultrasound provides high-resolution imaging for general diagnostic purposes, such as abdominal, soft tissue, and pelvic tests.
• Urology: GE Logiq F8 Urology Ultrasound provides sharp imaging to evaluate diseases of the kidneys, bladder, & prostate, enabling precise diagnosis during urological treatments.
• Point-of-Care and Emergency: This system works well in fast-paced environments like mobile clinics and emergency rooms because of its portability & user-friendliness.
• Musculoskeletal Imaging: Orthopedics and sports medicine benefit greatly from the machine's ability to visualize Joints, muscles, and tendons.

Frequently Asked Questions

Can the GE Logiq F8 be used for vascular imaging?

Yes, the sophisticated Doppler imaging feature makes it ideal for assessing blood flow and detecting vascular disorders.

Is the GE Logiq F8 easy to use?

Yes, medical professionals find it user-friendly and efficient for patient care with its automatic modes and extra probe holding capacity.

Is the GE Logiq F8 suitable for emergency and point-of-care situations?

Yes, its portability and user-friendliness make it ideal for fast-paced environments like mobile clinics and emergency rooms.
