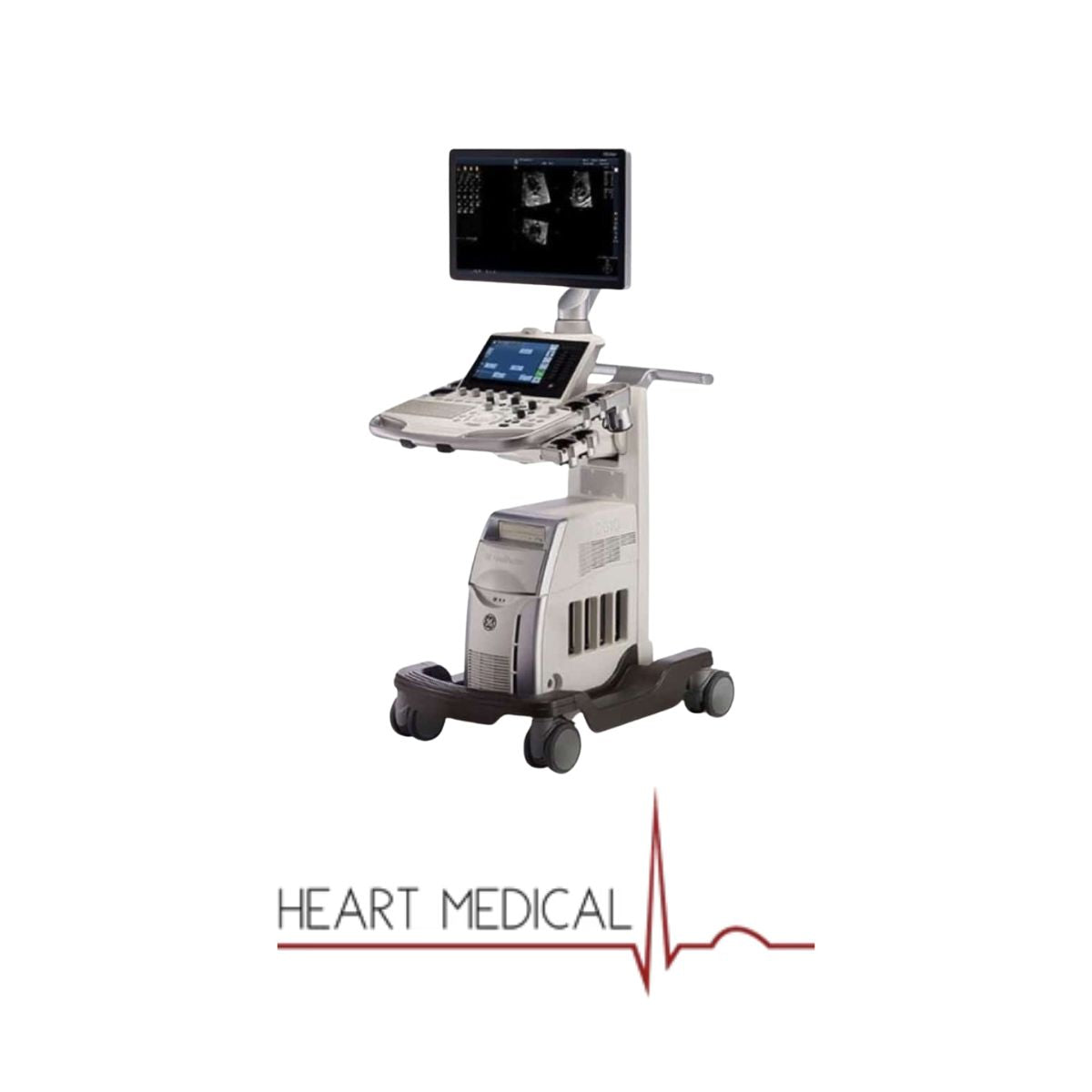

GE Logiq S7 Ultrasound Machine - GE-LOGIQS7-US

Description

Shared Service Mid-Range Imaging Technology

The GE Logiq S7 ultrasound is a superb mid-range ultrasound machine for shared service applications. It is significant in cardiac and general imaging to flour-dimensional OB/GYN scanning. This refurbished ultrasound machine is outstanding in functionality and design due to its compactness and lightweight.

This ultrasound machine has highly reliable GE ultrasound transducers and probes for precise and accurate diagnostic procedures. Its 7-inch touch screen and 19-inch LCD monitor make the ultrasound interface easy to use. Use this ultrasound machine for uninterrupted scanning and high-resolution images.

Key Features

• Elastography: The GE Logiq S7 ultrasound machine offers elastography for assessing tissue stiffness, liver fibrosis, and tumor characterization.
• Flow Quantification: This feature is crucial in enhancing the accuracy and precision of cardiac evaluations and vascular assessments.
• Contrast Imaging allows clear visualization of different body organs and blood flow using contrasting agents.
• Volume Imaging (3D/4D): It makes anatomical imaging and fetal assessments convenient through three- and four-dimensional imaging.
• Speckle Reduction Imaging: Offers improved clarity in the scans of abdominal and vascular regions by reducing image noise.
• CrossXBeam: This Logiq S7 ultrasound uses multiple ultrasounds to produce sharper, more detailed images for a high-resolution, accurate diagnosis.
• XDClear Transducer Technology: It optimizes patient examination performance due to the built-in technology of deliverance of high image penetration.
• Auto IMT (Intima-Media Thickness): Automatically measures arterial wall thickness to evaluate cardiovascular health and risk factors.

Technical Specifications

• Dimensions: 69 inches x 24 inches x31 inches
• Weight: 198 lbs
• Electrical power voltage: 100-120 V or 220-240 V
• Frequency: 50/60 Hz
• Storage: Hard Disk Drive (112 GB)
• Imaging Modes: 2D, 3D/4D
• Max Cine Memory: 384 MB
• Max Frame Rate: 800
• Max Depth: 33 cm
• Monitor: 19 inches LCD
• Monitor Resolution: 1280 X 1024
• Touchscreen: 7 inches
• Export Options: AVI, DICOM, JPG, USB, WMV

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

• 3Sc-RS (1.3–4.0 MHz): Phased array probe suitable for adult cardiac, pediatric, abdominal, fetal, and adult cephalic imaging.
• 6S-RS (2.5–7.0 MHz): Phased array probe designed for pediatric cardiac, vascular, pediatric, transcranial, and interventional guidance imaging.
• S4-10-D (3.0–9.0 MHz): Phased array probe tailored for pediatric cardiac and neonatal head imaging.
• S1-4-D (1.0–4.0 MHz): Phased array probe optimized for adult cardiac imaging.
• S2-5-D (1.0–5.0 MHz): Phased array probe suitable for adult cardiac and transcranial imaging.
• 3SP-D (1.0–5.0 MHz): Phased array probe designed for adult cardiac and transcranial imaging.

2. Transesophageal (TEE) Probes (Cardiac & Contrast Imaging)

• 6Tc-RS (3.0–8.0 MHz): TEE probe designed for adult cardiac imaging, supporting detailed transesophageal echocardiography.

3. Convex Array Probes (Abdominal & OB/GYN Imaging)

• C1-5-D (1.0–5.0 MHz): Convex array probe suitable for abdominal, OB/GYN, and urological imaging.
• C1-6-D (1.0–6.0 MHz): Convex array probe designed for abdominal, OB/GYN, and urological imaging.
• C3-10-D (2.0–11.0 MHz): Convex array probe tailored for pediatric abdominal and neonatal head imaging.
• RAB4-8-D (2.0–8.0 MHz): Convex array probe optimized for 3D/4D obstetric and gynecological imaging.

4. Micro-Convex Probes (Pediatric, Neonatal, Urological Imaging)

• 8C (4.0–11.0 MHz): Micro-convex probe designed for pediatric abdominal and neonatal head imaging.
• 10C-D (4.0–12.0 MHz): Micro-convex probe suitable for pediatric abdominal and neonatal head imaging.
• 3CRF-D (2.0–5.0 MHz): Micro-convex probe tailored for pediatric abdominal and neonatal head imaging.
• RIC5-9-D (5.0–9.0 MHz): Micro-convex probe optimized for obstetrics, gynecology, and urological imaging.
• IC5-9-D (4.0–9.0 MHz): Micro-convex probe designed for obstetrics, gynecology, and urological imaging.

5. Endocavitary Probes (Transvaginal, Urological, Intraoperative)

• E8C (3.5–11.5 MHz): Endocavitary probe used for obstetrics, gynecology, urology, transvaginal, and transrectal imaging.
• BE9CS (3.5–11.5 MHz): Endocavitary probe designed for obstetrics, gynecology, urology, transvaginal, and transrectal imaging.

6. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

• 9L-D (3.0–8.0 MHz): Linear array probe for vascular, small parts, and musculoskeletal imaging.
• 11L-D (3.0–11.0 MHz): Linear array probe optimized for vascular, small parts, and musculoskeletal imaging.
• L3-12-D (2.0–11.0 MHz): Linear array probe suitable for vascular, small parts, and musculoskeletal imaging.
• ML6-15-D (4.0–15.0 MHz): Matrix linear probe designed for vascular, small parts, and musculoskeletal imaging.
• L8-18i-D (4.0–15.0 MHz): High-frequency linear array probe for small parts, musculoskeletal, and vascular imaging.

7. Pencil (CW Doppler) Probes (Cardiac Doppler)

• P2D (2.0 MHz): Continuous wave Doppler probe dedicated to cardiac applications.
• P6D (6.3 MHz): Continuous wave Doppler probe designed for cardiac and vascular applications.
• P8D (8.0 MHz): Continuous wave Doppler probe suitable for cardiac and vascular applications.

8. Probe Accessories & Biopsy Guides

• Multi-angle disposable biopsy guides: Available for convex and linear probes to assist in guided procedures.
• Fixed-angle disposable or reusable biopsy guides: Compatible with endocavitary probes for precise targeting.

If you require further details on specific probes or additional information, feel free to ask.

Applications

• Tissue Stiffness Diagnosis: Utilized to diagnose liver diseases and tumors by non-invasively measuring tissue stiffness with elastography.
• Vascular and cardiac evaluation: Applied in assessing blood flow characteristics and cardiac function, which is crucial for diagnosing vascular conditions.
• Lesion and Tumor Detection: Enhances the detection of abnormal growths by improving blood flow and organ perfusion visibility using contrast agents.
• Fetal and Anatomical Imaging: This ultrasound is widely applicable in assessing fetal development and imaging complex anatomical structures.
• Deep Tissue Visualization: It is also a perfect ultrasound machine for capturing high-quality images of in-depth body tissues with better clarity and penetration.
• Image and Data Management: Facilitates easy sharing and long-term storage of diagnostic images and data through hospital networks.

Frequently Asked Questions

How much does the GE Logiq S7 ultrasound machine cost?

The cost of a new or refurbished GE Logiq S7 ultrasound machine varies depending on the seller and upgrades, but it typically starts from $17,500. However, refurbished models can be found at lower prices, starting from $6000.

What is the warranty period for a refurbished GE Logiq S7 ultrasound machine?

Most sellers offer a 1-year warranty for refurbished machines, but this may vary. It's always important to check with the seller before making a purchase.

Does this ultrasound machine have wireless connectivity?

The GE Logiq S7 has wireless connectivity capabilities for easy data transfer and sharing.

Can I use this ultrasound for all types of imaging?

Yes, the GE Logiq S7 is a shared-service ultrasound machine, meaning it can be used for various imaging applications, including cardiac, vascular, OB/GYN, abdominal, and more.
