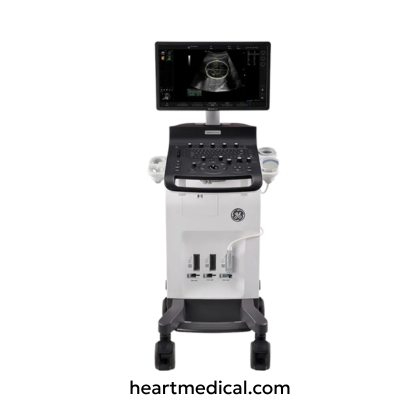

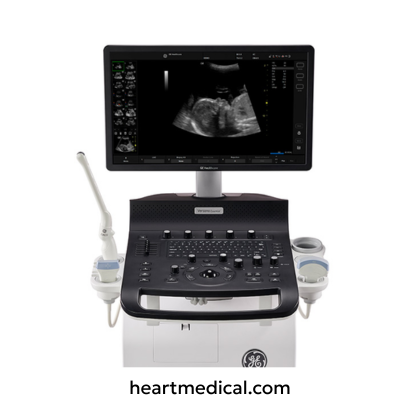

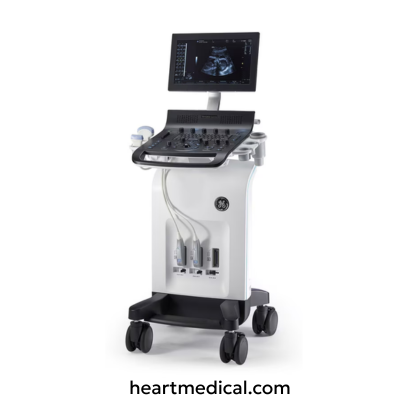

GE Versana Essential Ultrasound System - GE-VERSANA-ESS-US

Description

The GE Versana Essential™ is a user-friendly and efficient ultrasound system designed to meet the diverse needs of healthcare professionals in various clinical settings. Its advanced imaging capabilities are housed within a compact and lightweight design, making it an ideal choice for private clinics and general practitioner offices. The system supports a wide range of medical specialties, including abdominal, vascular, and musculoskeletal examinations.

Equipped with a 21.5-inch high-definition LCD monitor, the Versana Essential provides clear and detailed images to support accurate diagnostics. Features such as Whizz Dynamic Image Tuning allow for automatic image optimization with a single touch, enhancing workflow efficiency. The system also offers automated tools like Scan Assistant and a Follow-Up Tool to streamline procedures and facilitate consistent patient monitoring

Designed for ease of use, the Versana Essential includes front-facing probe connectors for quick access, a multi-probe holder, and optional battery support for enhanced mobility. Its small footprint and 360-degree directional wheels enable easy maneuverability within various clinical environments. Connectivity options such as VGA, HDMI, USB, Ethernet, wireless, and Bluetooth ensure seamless integration with existing systems and facilitate efficient data management.

Key Features

• Whizz Dynamic Imaging Tuning: Provides one-touch automatic image optimization during scanning, enhancing image clarity and diagnostic confidence.
• Whizz Color Flow and Whizz Spectral: Quickly optimizes color flow and spectral Doppler data to enable clear and precise diagnoses.
• Productivity Packages: Offers specialized packages for liver and thyroid exams, incorporating American College of Radiology (ACR) RADS for standardized reporting.
• SonoBiometry: Automated tool for rapid fetal measurements, including Biparietal Diameter (BPD), Head Circumference (HC), Femur Length (FL), and Humerus Length (HL).
• Scan Assistant: Allows creation of custom exam protocols and standardized workflows to streamline procedures and enhance efficiency.
• Scan Coach: Provides guidance on obtaining proper scan planes through 3D animations, anatomical illustrations, and reference ultrasound images.
• Auto IMT: Automatically measures the intima-media thickness of blood vessels, aiding in cardiovascular risk assessment.
• My Trainer: An on-boarding tool that supports users through system setup, operation, cleaning, and maintenance, facilitating quick mastery of the system.
• Workflow Enhancements: Features fast boot-up times, a highly responsive CPU, a large 21.5” LCD display, and new report templates to improve daily operations.

Technical Specifications

Dimensions and Weight:

• Height: 1395 mm (54.9 in)
• Width: 560 mm (22.0 in)
• Depth: 620 mm (24.4 in)
• Weight: Less than 45 kg

Electrical Power:

• Voltage: 100–240 VAC
• Frequency: 50/60 Hz
• Power Consumption: Maximum of 350 VA with peripherals

Display:

• Monitor: 21.5-inch high-resolution LED backlit LCD
• Resolution: 1920 x 1080
• Adjustable: Tilt (+25°/-90°) and rotate (-90°/+90°)

User Interface:

• Full alphanumeric keypad with washable protection film
• Six Time Gain Compensation (TGC) pods
• Integrated speakers
• Multiple probe ports (up to 3 active)

Imaging Modes:

• B-Mode
• Coded Harmonic Imaging
• M-Mode
• Color Flow Mode
• Power Doppler Imaging (PDI)
• Pulse Wave (PW) Doppler
• Continuous Wave (CW) Doppler
• 3D/4D Imaging

Connectivity:

• HDMI output
• Ethernet (RJ45)
• Multiple USB ports (USB-A and USB-C)
• Optional wireless and Bluetooth adapters

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

• 3Sc-RS (1.7–4.0 MHz): Phased array probe suitable for adult cardiac, abdominal, vascular, transcranial, thoracic, and interventional guidance imaging.
• 6S-RS (2.5–7.0 MHz): Phased array probe designed for pediatric cardiac, vascular, pediatric, transcranial, and interventional guidance imaging.

2. Convex Array Probes (Abdominal & OB/GYN Imaging)

• 4C-RS (2.0–5.0 MHz): Convex array probe suitable for abdominal, OB/GYN, vascular, urology, thoracic, pediatric, musculoskeletal, and interventional guidance imaging.
• RAB2-6-RS (2.0–6.0 MHz): Curved array probe designed for abdominal, OB, GYN, urology, and interventional guidance imaging.

3. Micro-Convex Probes (Pediatric, Neonatal, Urological Imaging)

• 8C-RS (4.2–10.0 MHz): Micro-convex probe designed for pediatric abdominal and neonatal head imaging.
• E8C-RS (4.2–10.0 MHz): Endocavitary probe used for obstetrics, gynecology, urology, transvaginal, transrectal, and interventional guidance imaging.
• E8Cs-RS (4.0–10.0 MHz): Endocavitary probe with a wide field of view, suitable for OB, GYN, urology, transvaginal, transrectal, and interventional guidance imaging.

4. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

• L6-12-RS (4.0–13.0 MHz): Linear array probe for vascular, pediatric, small parts, musculoskeletal, thoracic, and interventional guidance imaging.
• 12L-RS (4.2–13.0 MHz): Linear array probe optimized for vascular, pediatric, small parts, musculoskeletal, thoracic, and interventional guidance imaging.
• L8-18i-RS (4.5–18.0 MHz): High-frequency linear array probe for small organs, intraoperative, musculoskeletal, and vascular imaging.

5. Endocavitary & Specialty Probes (Transvaginal, Urological, Intraoperative)

• LK760-RS (3.5–10.0 MHz): Endorectal linear probe designed for musculoskeletal and interventional guidance imaging.

6. Volume & 4D Probes

• RAB2-6-RS (2.0–6.0 MHz): Curved array probe designed for abdominal, OB, GYN, urology, and interventional guidance imaging.

7. Probe Accessories & Biopsy Guides

• Multi-angle disposable biopsy guides: Available for convex and linear probes to assist in guided procedures.
• Fixed-angle disposable or reusable biopsy guides: Compatible with endocavitary probes for precise targeting.

If you require further details on specific probes or additional information, feel free to ask.

Applications

The Versana Essential is versatile and suitable for a wide range of clinical applications, including:

• Abdominal Imaging: Provides detailed visualization of abdominal organs for comprehensive assessments.
• Obstetrics and Gynecology: Offers advanced imaging capabilities for monitoring fetal development and evaluating gynecological conditions.
• Cardiology: Equipped with Doppler modes to assess cardiac function and blood flow dynamics.
• Vascular Imaging: Enables evaluation of blood vessels to detect abnormalities such as stenosis or aneurysms.
• Musculoskeletal Imaging: Assists in diagnosing soft tissue and joint disorders with high-resolution imaging.
• Urology: Facilitates the examination of urinary tract organs, aiding in the diagnosis of urological conditions.

Frequently Asked Questions

What types of probes are compatible with the Versana Essential?

The system supports a wide range of probes, including convex, linear, microconvex, sector phased array, and volume probes, to accommodate various clinical applications.

Does the Versana Essential offer 3D/4D imaging capabilities?

Yes, the system includes options for 3D/4D imaging, allowing for detailed visualization in applications such as obstetrics and gynecology.

Is there training available for new users of the Versana Essential?

Absolutely. The system features the "My Trainer" on-boarding tool, which provides guidance on system setup, operation, cleaning, and maintenance. Additionally, GE HealthCare offers various educational resources and support.

Can the Versana Essential be customized for specific clinical workflows?

Yes, with features like Scan Assistant, users can create custom exam protocols and standardized workflows tailored to their specific clinical needs.

What support options are available for the Versana Essential?

GE HealthCare provides comprehensive service and support, including access to documentation, clinical education, and a dedicated support network to ensure optimal system performance.
