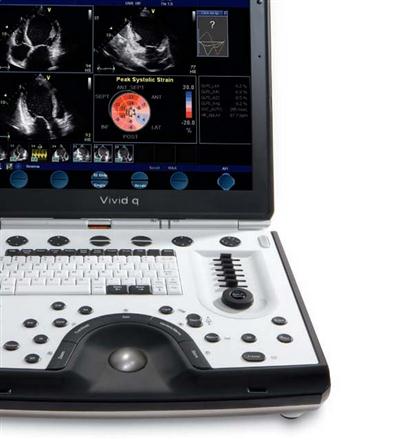

GE Vivid Q Portable Ultrasound Machine (Refurbished)

Description

Better Bedside care with Refurbished Ultrasound Technology

The GE Vivid Q Portable Ultrasound machine has transformed the ultrasound procedure in medical facilities for the better. Its compact design and advanced system make it an irreplaceable tool in any clinical setting.

GE Vivid Q is known for its exceptional image quality and simple interface. The best feature of this machine is its mobility. It can be easily transported anywhere, allowing healthcare providers to bring it directly to the patient’s bedside. This flexibility allows better patient care, especially in critical situations.

It's perfect for cardiology departments, vascular ultrasounds, and emergency medicine, providing quick and accurate results that aid in confident decision-making. All these reasons make Vivid Q portable ultrasound machines a necessity for every healthcare center.

Key Features

• Stress Echo Software: Provides comprehensive cardiac assessments and evaluation of heart function under stress conditions.
• Smart Depth and Coded Harmonic Imaging: Enhances image detail and clarity, making it easier to view and analyze complex structures.
• Advanced Imaging Features: Includes ATO/ASO, Live Anatomical M-Mode (AMM), and Tissue Spectral Doppler for detailed anatomical and functional insights.
• Battery Life: Up to 4 hours of operation (1 hour on device battery, 3 hours with optional cart).
• Cardiac Capabilities: Offers AFI/Strain and Dual Focus for precise cardiac applications.
• Broad Imaging Coverage: Equipped with Wide Aperture Linear and Curved Array Probes to cover a wide area, enhancing diagnosis.
• Hygienic Design: Closed, flat keyboard surface for easy cleaning
• Superior Image Quality: Utilizes Compound Imaging with Linear Probes and Ultra Definition Speckle Reduction Imaging (SRI) for high-quality images.
• Optimal Imaging Technologies: Features Ultra Definition Adaptive Reject and Coded Phase Inversion (CPI) for the best possible image quality.

Technical Specifications

General Specifications:

Dimensions:

• Depth: 313 mm (12.4 inches)
• Width: 358 mm (14.2 inches)
• Height: 59 mm (2.3 inches)
• Weight: Approximately 5 kg (11 lbs)
• Display: 15-inch high-resolution LCD

Imaging Modes and Applications:

Cardiac Imaging:

• M4S-RS Matrix Array sector technology for advanced cardiac imaging
• Automated Ejection Fraction calculation

OB/GYN:

• Real-time 3D/4D imaging capabilities
• Comprehensive fetal monitoring and assessment tools

Pediatrics:

• High-frequency transducers for detailed pediatric imaging
• Sensitive Doppler for evaluating blood flow in small vessels

Anesthesia/OR:

• Intraoperative imaging for guidance in anesthesia and surgical procedures
• Needle visualization features for regional anesthesia

Compatible Transducers:

Cardiac Probes:

• M4S-RS, 3Sc-RS, 6S-RS, 7S-RS

OB/GYN Probes:

• 4C-RS, 8C-RS

Pediatric Probes:

• 10S-RS, 12S-RS, 12L-RS

Anesthesia/OR Probes:

• 8L-RS, i12L-RS (Hockey Stick)

Specialty Probes:

• 6T-RS and 6Tc-RS (Adult TEE), 9T-RS (Pediatric TEE)
• ICE catheters for intracardiac echocardiography

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

• 3Sc-RS (1.3–4.0 MHz): Phased array probe suitable for adult cardiac, pediatric, abdominal, fetal, and adult cephalic imaging.
• 3S-RS (1.5–3.6 MHz): Phased array probe designed for adult cardiac and abdominal imaging.
• M4S-RS (1.5–3.6 MHz): Active matrix phased array probe ideal for adult cardiac imaging, including transthoracic echocardiography and stress echo.

2. Transesophageal (TEE) Probes (Cardiac & Contrast Imaging)

• 6Tc-RS (3.0–8.0 MHz): TEE probe designed for adult cardiac imaging, supporting detailed transesophageal echocardiography.
• 9T-RS (4.0–10.0 MHz): Pediatric-focused TEE probe offering high-frequency detail for pediatric cardiac imaging.

3. Convex Array Probes (Abdominal & OB/GYN Imaging)

• 4C-RS (1.3–4.0 MHz): Convex array probe suitable for abdominal, OB/GYN, and urological imaging.
• 8C-RS (4.0–11.0 MHz): Micro-convex probe designed for pediatric abdominal and neonatal head imaging.

4. Endocavitary & Specialty Probes (Transvaginal, Urological, Intraoperative)

• E8C-RS (4.0–11.0 MHz): Endocavitary probe used for obstetrics, gynecology, and urological imaging.

5. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

• 8L-RS (4.0–12.0 MHz): Linear array probe for vascular, small parts, and thyroid imaging.
• 9L-RS (3.5–10.0 MHz): Linear array probe suitable for vascular, small parts, and musculoskeletal imaging.
• 12L-RS (6.0–13.0 MHz): Linear array probe optimized for vascular, small parts, and thyroid imaging.
• L10-22-RS (10.0–22.0 MHz): Ultra-high-frequency linear array probe for superficial musculoskeletal and small parts imaging.
• L8-18i-RS (6.7–18.0 MHz): High-frequency linear array probe for small organs, intraoperative, musculoskeletal, and vascular imaging.
• L4-12t-RS (4.2–13.0 MHz): Linear array probe designed for vascular, small parts, and musculoskeletal imaging with a compact footprint.

6. Pencil (CW Doppler) Probes (Cardiac Doppler)

• P2D (2.0 MHz): Continuous wave Doppler probe dedicated to cardiac applications.
• P6D (6.0 MHz): High-frequency CW Doppler probe for detailed cardiac Doppler assessments.

7. Probe Accessories & Biopsy Guides

• Multi-angle disposable biopsy guides: Available for convex and linear probes to assist in guided procedures.
• Fixed-angle disposable or reusable biopsy guides: Compatible with endocavitary probes for precise targeting.
• LVO Contrast Support: Select TEE and phased array probes support left ventricular contrast imaging for enhanced cardiac assessments.

If you require further details on specific probes or additional information, feel free to ask.

Applications

• Cardiology: It helps in detailed heart evaluations, including assessing heart valves, blood flow, and diagnosing heart diseases.
• Pediatrics imaging: The Vivid iq refurbished is ideal for monitoring pregnancies and assessing fetal development like heartbeat and overall health.
• Pediatrics imaging: Provides high-resolution images of smaller and delicate structures in children.
• Vascular studies: Best for examining blood vessels for clots or blockage.
• Emergency/Anesthesia guidance: Helps in quick imaging in emergency situations and assists with procedures like placing nerve blocks.

Frequently Asked Questions

What is the difference between GE Vivid Q and Vivid I?

The GE Vivid Q is a compact, portable ultrasound machine with advanced imaging features for various medical purposes.

The GE Vivid Q is an older, more stationary model. It's great for cardiology imaging, but lacks the portability and advanced features of the Vivid Q.

How long does the battery of the GE Vivid Q last on a single charge?

The battery life typically ranges from 2 to 4 hours of continuous use, depending on the imaging modes and settings used.

What is included with the refurbished GE Vivid Q Portable Ultrasound machine?

Along with the portable ultrasound machine, the package includes a range of transducers, a battery charger, an AC adapter, and a protective carrying case.

Is the GE Vivid Q compatible with other imaging software or devices?

Yes, the GE Vivid Q is compatible with other software and devices. It can easily connect to wireless and wired networks for data transfer and remote access.

Can the GE Vivid Q be used for both adult and pediatrics patients?

Yes, it has specific modes and transducers designed for both adult and pediatrics imaging.
