GE Vivid T9 Ultrasound Machine

Description

Versatile cardiovascular ultrasound system with advanced AI features

The GE Vivid T9 is a high-performance cardiovascular and shared-service ultrasound system, designed for exceptional imaging, efficiency, and reliability. It seamlessly integrates cardiac, vascular, abdominal, OB/GYN, small parts, musculoskeletal, and transcranial ultrasound applications, making it a versatile choice for a wide range of clinical needs. With its advanced imaging capabilities, it delivers clear, detailed visuals that support accurate diagnoses.

Built with digital beamforming technology, the Vivid T9 ensures precise image acquisition, high spatial resolution, and deep penetration, even in difficult cases. The system runs on Windows 10, offering a stable and secure platform for fast operation and seamless integration with hospital networks and PACS systems.

Its ergonomic design enhances usability. The FlexFit keyboard adjusts for seated or standing use, while the 21.5-inch HD monitor and 10.1-inch touch screen provide an intuitive interface for streamlined workflow. With four active probe ports, users can quickly switch between probes without disrupting the imaging process.

GE’s True Scan Raw Data technology allows clinicians to adjust images after the exam, ensuring flexibility in analysis without compromising quality. Automation tools like Auto EF 2.0, Automated Function Imaging (AFI) 2.0, and Scan Assist Pro optimize workflow by reducing manual adjustments, improving efficiency, and enhancing diagnostic confidence.

Designed for hospitals, clinics, and mobile imaging services, the Vivid T9 combines powerful performance with user-friendly operation and a durable build. At Heart Medical, we are authorized resellers and provide nationwide delivery, ensuring easy access to this advanced ultrasound system. Contact Team

Key Features

1. Imaging & Performance

• Advanced Digital Beamforming – Ensures precise image acquisition, high spatial resolution, and deep tissue penetration.
• True Scan Raw Data Technology – Allows post-exam image adjustments without losing quality.
• High-Speed Imaging – Frame rate exceeds 1,000 fps (probe and setting-dependent), ensuring smooth image rendering.
• Coded Phase Inversion Harmonic Imaging – Improves contrast resolution and reduces noise for clearer images.
• Multi-Angle Compound Imaging – Enhances border definition and contrast resolution by combining images from different angles.
• Virtual Apex & Virtual Convex Imaging – Expands the field of view for phased and linear probes.
• Multiple Imaging Modes – Supports 2D, Color Flow, Doppler (PW, CW, HPRF), M-Mode, Strain Imaging, and Anatomical M-Mode.

2. User Interface & Ergonomics

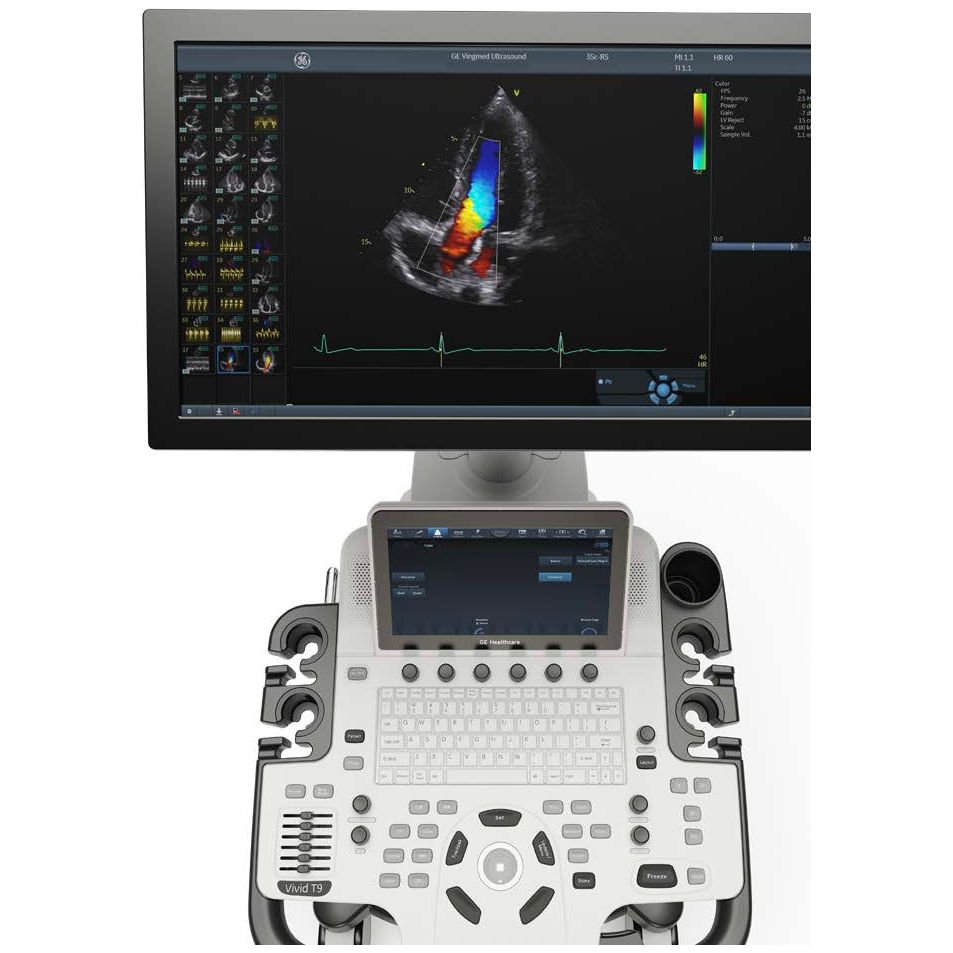

• FlexFit Keyboard – Adjustable left/right swivel and height adjustment for comfortable operation in seated or standing positions.
• 21.5" High-Definition LCD Monitor – Flicker-free display with 1920x1080 resolution, 170° viewing angle, and articulating arm for optimal positioning.
• 10.1" Multi-Touch LCD Panel – Ultra-high resolution touch screen with an interactive, user-configurable dynamic software menu.
• Four Active Probe Ports – Allows seamless multi-specialty scanning without changing connections.
• Integrated Gel & Probe Cable Holders – Organized setup with six probe holders (four standard, two optional) for convenience.

3. Advanced Automation & AI Tools

• Auto EF 2.0 (Automated Ejection Fraction) – Uses 2D speckle tracking for fast, automated EF calculation.
• Automated Function Imaging (AFI) 2.0 – Quantifies global and segmental strain for advanced cardiac assessments.
• Smart Stress Echo – Automates stress echo workflows, ensuring consistency in wall motion scoring and reporting.
• Scan Assist Pro – Guides users through predefined scanning protocols, reducing keystrokes and improving workflow.
• Q-Analysis Package – Provides detailed strain, tissue velocity, and contrast analysis for deeper insights.
• DICOM Structured Reporting & Connectivity – Supports DICOM-SR, PACS integration, and remote access via EchoPAC.

4. Connectivity & Data Management

• On-Board Patient Archive – Stores images, loops, measurements, and reports with retrieval capabilities.
• Multiple Export Options – Supports DICOM, JPEG, MPEG, AVI formats, and USB/CD/DVD storage.
• Ethernet & USB Ports – Enables fast data transfer and connectivity to external devices.
• EchoPAC Compatibility – Allows post-processing and advanced analysis on a PC.
• Tricefy® Cloud Integration – Securely shares images and reports with colleagues or patients.
• Insite™ Express Connection (Remote Support) – Enables real-time troubleshooting and training via GE’s remote service team.

5. Design & Portability

• Compact & Mobile Design – Lightweight (60 kg) with front/rear handles and caster locks for easy transport.
• Smart Standby Mode – Automatically saves system state during shutdowns and resumes instantly upon restart.
• Integrated Cooling System – Optimized airflow and removable filters for efficient heat management.
• Locking Mechanism – Rolling lock and caster swivel lock for added stability.

Technical Specifications

1. System Architecture & Processing

• Operating System – Windows® 10
• Image Processing Technology – True Scan Raw Data
• Digital Beamformer – Up to 974,026 effective digital channels
• Dynamic Range Adjustment – Continuous dynamic receive focus and aperture
• Acoustic Frame Rate – Adjustable frame rate exceeding 1,000 fps (probe dependent)

2. Dimensions & Weight

• Width:
• Keyboard: 502 mm (19.8 in)
• Base: 590 mm (23.2 in)
• Depth:
• Maximum: 810 mm (31.9 in)
• Height:
• Maximum: 1,775 mm (69.1 in)
• Minimum: 1,405 mm (55.3 in)
• Weight: 60 kg (132 lbs)

3. Power & Electrical Specifications

• Input Voltage – 100-240V AC, 50/60 Hz
• Power Consumption – 300 VA maximum (with peripherals connected)
• Cooling System – Integrated airflow with removable air filters

4. Display & Imaging Interface

• Monitor – 21.5” HD LCD, 1920x1080 resolution, flicker-free, 170° viewing angle
• Monitor Adjustments – +25° to -90° vertical tilt, 325 mm horizontal movement, 150 mm vertical height adjustment
• Touchscreen Control – 10.1” ultra-high-resolution, multi-touch LCD

5. User Interface & Control

• Keyboard – Ergonomic FlexFit design, full-size hard key layout
• Trackball & Touch Controls – Enables precise annotation, image navigation, and measurement adjustments
• TGC Controls – Six TGC (Time Gain Compensation) pods for real-time image tuning
• Interactive Backlighting – Illuminated control panel for low-light operation

6. Connectivity & Storage

• Onboard Storage – 500 GB HDD
• External Storage:
• USB Memory Stick
• 1 TB USB Hard Drive (optional)
• CD-RW / DVD-RW (optional)
• Networking & Data Transfer:
• Ethernet (RJ45) – 100BASE-TX
• DICOM (Optional) – Print, Store, Query/Retrieve, MPPS, Storage Commitment
• DICOM Structured Reporting – Compatible with cardiac, vascular, and abdominal exams
• Remote Access – GE’s Insite™ ExC for real-time troubleshooting and software updates

7. Input & Output Ports

• USB Ports – Three rear, three under keyboard
• VGA Output – Supports 1080p resolution
• Composite & S-Video Output – Available via adapters
• Audio Stereo Output – For external audio devices

8. Safety & Compliance

• CE Marked – Compliant with Council Directive 93/42/EEC on Medical Devices
• Electrical Safety Standards –
• IEC 60601-1 (Medical Electrical Equipment – General Requirements)
• IEC 60601-1-2 (Electromagnetic Compatibility)
• IEC 60601-2-37 (Ultrasonic Medical Diagnostic & Monitoring Equipment)
• Biological & Usability Standards –
• ISO 10993-1 (Biological Evaluation of Medical Devices)
• EN 62366 (Usability Engineering for Medical Devices)
• Virus Protection – Restricted open ports and security patches for third-party software

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

These probes are designed for cardiac, abdominal, and pediatric imaging, offering high penetration and real-time imaging capabilities.

• 3Sc-RS (1.3 – 4.0 MHz) – Used for cardiac, pediatric, abdominal, fetal, and adult cephalic imaging. Compatible with LVO contrast imaging (optional).
• 6S-RS (2.0 – 7.0 MHz) – Optimized for pediatric, fetal, neonatal cephalic, and abdominal imaging.
• 12S-RS (4.5 – 12.0 MHz) – Ideal for pediatric and neonatal cephalic imaging, providing high-resolution images.

2. Transesophageal (TEE) Probes (Cardiac & Contrast Imaging)

TEE probes allow detailed cardiac imaging through the esophagus, improving visualization of heart structures.

• 6Tc-RS (3.0 – 8.0 MHz) – Designed for cardiac imaging, also supports LVO contrast applications (optional).
• 9T-RS (4.0 – 10.0 MHz) – Pediatric-focused transesophageal imaging with high-frequency detail.

3. Convex Array Probes (Abdominal & OB/GYN Imaging)

Convex probes offer wide field-of-view imaging, making them ideal for abdominal, OB/GYN, and neonatal applications.

• 4C-RS (1.5 – 5.0 MHz) – Used for abdominal, OB/GYN, fetal, neonatal cephalic, pediatrics, and urology.
• C1-5-RS (1.5 – 5.0 MHz) – Supports general abdominal, OB/GYN, and pediatric applications.
• 8C-RS (3.5 – 10.0 MHz) – Provides detailed pediatric, neonatal cephalic, and peripheral vascular imaging.

4. Endocavitary & Specialty Probes (Transvaginal, Urological, Intraoperative)

These probes are designed for transvaginal, transrectal, and intraoperative imaging, allowing for high-resolution internal examinations.

• E8Cs-RS (3.5 – 10.0 MHz) – Used for GYN, transvaginal, fetal/obstetrics, urological, and transrectal imaging.
• E8C-RS (3.5 – 11.0 MHz) – Supports fetal echo, follicle tracking, OB, GYN, and prostate imaging.

5. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

Linear probes provide high-frequency imaging for vascular structures, small parts, and musculoskeletal applications.

• 9L-RS (3.0 – 10.0 MHz) – Used for peripheral vascular, abdominal, pediatric, small organs, and musculoskeletal imaging.
• 12L-RS (4.0 – 13.0 MHz) – Supports vascular, small parts, and neonatal cephalic imaging.
• L6-12-RS (4.0 – 13.0 MHz) – Optimized for vascular, small organs, musculoskeletal, and neonatal cephalic imaging.
• L8-18i-RS (4.5 – 18.0 MHz) – High-frequency probe for small organs, intraoperative, musculoskeletal, and vascular imaging.

6. Pencil (CW Doppler) Probes (Cardiac Doppler)

Continuous Wave (CW) Doppler probes are designed for high-velocity blood flow assessment, commonly used in cardiac exams.

• P2D (1.9 – 2.1 MHz) – Dedicated to continuous wave Doppler for cardiac applications.

7. Probe Accessories & Biopsy Guides

• Multi-angle disposable biopsy guides – Available for convex and linear probes for guided procedures.
• Fixed-angle disposable or reusable biopsy guides – Compatible with endocavitary probes.
• LVO Contrast Support – Select TEE and phased array probes support left ventricular contrast imaging for enhanced cardiac assessments.

Applications

1. Cardiac Imaging (Adult & Pediatric)

• Comprehensive 2D and Doppler Cardiac Imaging for adult and pediatric patients.
• Stress Echo for evaluating cardiac function under stress conditions.
• Automated Ejection Fraction (Auto EF 2.0) for quick left ventricular function assessment.
• Tissue Velocity Imaging (TVI) & Tissue Doppler Imaging for advanced myocardial assessments.
• Strain Imaging & Strain Rate Imaging (optional) for detecting early myocardial dysfunction.
• Transesophageal Echocardiography (TEE) for detailed heart structure evaluation.

2. Vascular Imaging (Peripheral & Cerebrovascular)

• Color Doppler, Power Doppler, and Spectral Doppler for assessing blood flow and vessel conditions.
• IMT (Intima-Media Thickness) Measurement for detecting early signs of atherosclerosis.
• Peripheral Artery and Vein Evaluation for deep vein thrombosis (DVT) and arterial disease.
• Transcranial Doppler (TCD) for cerebrovascular blood flow assessment.

3. Abdominal & General Imaging

• Liver, Kidney, Spleen, and Pancreas Imaging with high-resolution B-mode and Doppler capabilities.
• Gallbladder and Biliary System Assessment for stones and duct obstructions.
• Aorta and Renal Artery Evaluation for detecting aneurysms and stenosis.

4. OB/GYN & Fetal Imaging

• Detailed Fetal Biometry and Growth Monitoring with advanced measurements.
• Transvaginal and Transabdominal Imaging for early pregnancy assessments.
• Amniotic Fluid Index (AFI) and Placental Health Monitoring.
• Multi-Gestational Pregnancy Evaluation with fetal trending capabilities.

5. Small Parts & Musculoskeletal Imaging (MSK)

• Thyroid, Breast, and Testicular Imaging for detecting nodules, cysts, and tumors.
• Musculoskeletal Ultrasound for tendon, ligament, and joint evaluations.
• Soft Tissue Mass Characterization to differentiate between benign and malignant lesions.

6. Urological & Prostate Imaging

• Bladder Volume Assessment for urinary retention and voiding dysfunction.
• Transrectal Prostate Imaging (TRUS) for prostate size and lesion detection.
• Renal Doppler Studies for kidney perfusion assessment.

7. Intraoperative & Specialized Imaging

• Real-Time Intraoperative Guidance for surgical procedures.
• Biopsy Assistance with real-time needle visualization and guided biopsy tools.
• Contrast-Enhanced Ultrasound (LVO Contrast, optional) for vascular and cardiac imaging.

Frequently Asked Questions

1. What type of operating system does the GE Vivid T9 use?

The Vivid T9 runs on Windows 10, providing a stable and secure platform for seamless operation, network integration, and DICOM connectivity.

2. How many active probe ports does the Vivid T9 have?

The system comes with four active probe ports, allowing clinicians to switch between different probes efficiently without interrupting workflow.

3. Does the Vivid T9 support remote access for troubleshooting and training?

Yes, the system includes Insite™ Express Connection (ExC), which allows remote service support, troubleshooting, and real-time training through a secure GE Healthcare connection.

4. What are the available storage options for saving and transferring images?

The Vivid T9 supports on-board patient archiving and multiple external storage options, including:

• 500GB internal HDD for storing exams and reports.
• USB memory sticks and 1TB USB hard drives for external storage.
• CD-RW/DVD-RW (optional) for long-term archiving.
• DICOM connectivity for seamless integration with PACS systems.

5. How does the Smart Standby feature work?

The Smart Standby mode automatically saves the system state in case of an unexpected shutdown or power failure. Once power is restored, the system resumes instantly, maintaining the exact session prior to shutdown.

6. Can the GE Vivid T9 be used for portable or mobile imaging services?

Yes, the Vivid T9 is designed for mobility, featuring front and rear handles, caster wheels with a locking mechanism, and a compact design (weighing only 60 kg), making it easy to transport between examination rooms or mobile imaging settings.

7. What kind of safety and compliance certifications does the Vivid T9 have?

The system is CE Marked and conforms to multiple international safety standards, including:

• IEC 60601-1 (Medical Electrical Equipment – General Safety Requirements)
• IEC 60601-1-2 (Electromagnetic Compatibility)
• IEC 60601-2-37 (Ultrasonic Medical Diagnostic Equipment)
• ISO 10993-1 (Biological Evaluation of Medical Devices)

8. Is the Vivid T9 protected against viruses and cybersecurity threats?

Yes, GE has implemented whitelisting technology to prevent unauthorized applications from running on the system. Additionally, security patches and vulnerability scanning are regularly evaluated to keep the system secure.

9. Can I perform advanced post-processing and analysis on a PC?

Yes, the EchoPAC™ software allows users to access raw ultrasound data from the Vivid T9 on a PC for detailed review, quantitative analysis, and post-processing.

10. Does the Vivid T9 come with built-in reporting tools?

Yes, it includes on-board reporting features, allowing clinicians to generate structured reports with measurements, annotations, and graphical findings. The reports can be customized and exported in DICOM SR format for integration with electronic medical records.

11. What image formats can the Vivid T9 save and export?

The system supports multiple image and cine loop formats, including:

• DICOM (compressed/uncompressed, single/multi-frame, raw data options)
• JPEG for still frames
• MPEG and AVI for video loops

12. What probe cable management options does the Vivid T9 offer?

The system includes an optional probe cable tray and an integrated gel holder, ensuring a clutter-free workspace and improving workflow efficiency.

13. What kind of acoustic output monitoring does the Vivid T9 have?

The system continuously monitors and displays acoustic output values, including:

• Thermal Index (TIS, TIC, TIB)
• Mechanical Index (MI)
• Power output in dB

14. Does the GE Vivid T9 support multi-language operation?

Yes, the system supports multiple language options, including English, French, German, Spanish, Italian, Portuguese, Swedish, Danish, Norwegian, Polish, Finnish, Greek, and Russian.

15. What kind of annotation tools are available on the Vivid T9?

The system features easy-to-use annotation tools, including:

• Body Mark Icons for probe positioning reference.
• Trackball-driven annotation arrows for precise markings.
• Customizable comment home position for quick access.
• Free text entry with a word library for efficient reporting.
