GE Vscan Air Ultrasound - GE-VSCAN-AIR-US

Description

Get high-quality images with dual-probe handheld ultrasound

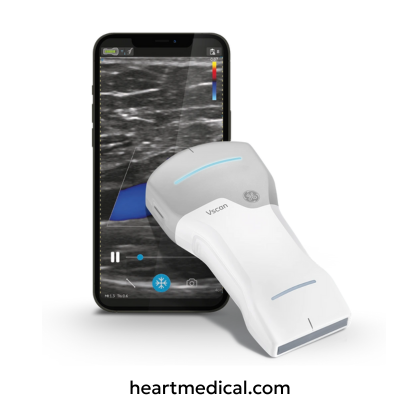

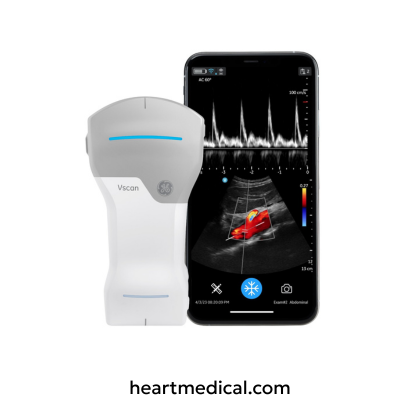

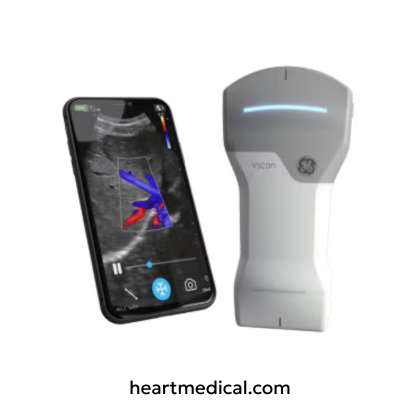

The GE Vscan Air is a state-of-the-art wireless handheld ultrasound system, designed to deliver exceptional imaging and performance in a compact, portable format. With its dual-probe capability, the Vscan Air offers both curved and linear array transducers which make it ideal for multiple clinical applications, including OB/GYN, musculoskeletal, abdominal, and lung imaging. Whether you need to perform shallow or deep scans, this versatile device provides clear images without the need to switch probes for quick assessments and early diagnosis.

Engineered for ease of use and portability, the Vscan Air features a lightweight, ergonomic design that fits comfortably in the palm of your hand. The system’s intuitive app connects wirelessly to your smartphone or tablet, allowing seamless control and immediate access to high-quality ultrasound images. Its robust, drop-tested, and waterproof build ensures durability in any clinical setup and makes it a fit for all healthcare professionals to use.

With up to 50 minutes of continuous scan time and wireless charging capabilities, the Vscan Air is built for efficiency and convenience. The built-in DICOM compatibility allows for easy integration into existing workflows, while the device’s rugged design ensures it can withstand the rigors of everyday clinical use. Whether you're in a hospital, clinic, or on the move, the GE Vscan Air provides the imaging power and portability you need to support timely patient care.

Key Features

1. Imaging & Performance

• Dual Probe System – Integrated curved (2-5 MHz) and linear (3-12 MHz) array transducers provide versatile imaging capabilities for a wide range of clinical applications, including OB/GYN, musculoskeletal, abdominal, and lung imaging.
• SignalMax Technology – Enhances image clarity and resolution, ensuring detailed visualizations for accurate assessments.
• Color Flow Imaging – Provides real-time visualization of blood flow and vascular patterns, aiding in comprehensive diagnostics.
• B Mode Imaging – Delivers high-quality grayscale images for precise visualization of structures and tissues.
• DICOM Compatibility – Ensures seamless integration into hospital networks, enabling efficient image storage, sharing, and archiving.

2. User Interface & Ergonomics

• Compact & Lightweight Design – Weighing only 205g, the Vscan Air is designed to fit in the palm of your hand, offering portability for on-the-go scanning.
• Wireless Connectivity – Pairs seamlessly with a smartphone or tablet via the Vscan Air app, providing easy image viewing, control, and sharing in real time.
• Easy-to-Use Interface – The intuitive app interface simplifies operation and ensures fast, convenient access to high-quality imaging and scan management.
• Durable & Waterproof – IP67-rated for durability, ensuring reliable performance in various clinical environments, with the ability to withstand drops and exposure to water.

3. Advanced Features & Automation

• Up to 50 Minutes of Scan Time – Ideal for extended scanning sessions, with efficient battery management for longer use without interruptions.
• Wireless Charging – Compatible with wireless charging, ensuring ease of use and minimal downtime for device recharging.
• Portable and Efficient – Perfect for quick bedside assessments or use in remote locations, providing high-quality imaging wherever needed.

4. Connectivity & Data Management

• Seamless App Integration – Connects directly to the Vscan Air app on your mobile device for image viewing and scanner control functions, ensuring easy access to diagnostic data.
• Data Storage – Up to 500 scans can be stored on the connected smartphone’s camera reel, offering convenient management and retrieval of patient data.
• Tricefy® Cloud Integration – Securely shares images and reports with colleagues or patients, ensuring efficient collaboration and timely decision-making.

5. Design & Portability

• Lightweight and Portable – Weighs about the same as a smartphone, providing unmatched portability for healthcare professionals on the move.
• Dual-Headed Probe Design – Integrated curved and linear array transducers allow for seamless deep and shallow scans without the need for switching probes.
• Up to 75-Minute Recharge Time – Fast recharge time (10-75%) ensures minimal downtime between uses, making it ready for continuous patient assessments.

Technical Specifications

System Architecture & Processing

• Operating System – Proprietary mobile app (compatible with iOS and Android)
• Image Processing Technology – SignalMax for enhanced image quality and clarity
• Digital Beamformer – Dual probe with integrated curved (2-5 MHz) and linear (3-12 MHz) transducers
• Acoustic Frame Rate – Adjustable frame rate to provide real-time imaging
• Imaging Modes – 2D imaging with Color Flow, Pulse Wave Doppler (PW), and Continuous Wave Doppler (CW) capabilities


Dimensions & Weight

• Width: 64 mm (2.5 in)
• Depth: 131 mm (5.2 in)
• Height: 31 mm (1.2 in)
• Weight: 0.2 kg (0.44 lbs)


Power & Electrical Specifications

• Input Voltage – Wireless, charged via compatible wireless charging station
• Battery Life – Up to 50 minutes of continuous scanning
• Recharge Time – 75 minutes (10-75% charge)


Display & Imaging Interface

• Display – Connected via smartphone or tablet for image viewing, using the Vscan Air app
• Touchscreen – No built-in touchscreen; operates through connected mobile device's touchscreen
• Imaging Interface – The app on the smartphone/tablet provides controls for the ultrasound system, including adjustments for image viewing and navigation.


User Interface & Control

• Touchscreen Control – Operates via the connected mobile device for intuitive image viewing and system control
• Probe Control – Dual probe with convex (2-5 MHz) and linear (3-12 MHz) probes for versatile imaging capabilities
• Battery Status & Connectivity Indicators – Visual indicators available through the Vscan Air app to display battery life, connectivity status, and scan settings.


Connectivity & Storage

• Onboard Storage – 500 scans can be stored directly on the smartphone or tablet's camera reel
• Export Options – JPG, MPEG for image and video sharing
• DICOM Compatibility – Available for storing and sharing ultrasound images in DICOM format
• Wireless Connectivity – Connects to the mobile device via Wi-Fi or Bluetooth
• Remote Access – Compatible with cloud services for data sharing and integration into hospital systems (Tricefy® Cloud Integration)


Input & Output Ports

• USB Ports – Not applicable; operates wirelessly through a smartphone or tablet
• Audio Output – No external audio output; operates through the connected mobile device
• Video Output – Video can be streamed to external monitors via connected mobile device if needed.


Safety & Compliance

• CE Marked – Compliant with Council Directive 93/42/EEC on Medical Devices
• Electrical Safety Standards – IEC 60601-1 (Medical Electrical Equipment – General Requirements)
• Biological & Usability Standards – ISO 10993-1 (Biological Evaluation of Medical Devices)
• Water Resistance – IP67 rated for durability and protection against dust and water immersion
• Virus Protection – Restricted open ports and security patches for third-party software on mobile device

Probe Compatibility

1. Dual Probe Design (Curved & Linear Array Probes)

• Curved Array Probe (2-5 MHz) – Ideal for abdominal, OB/GYN, and pediatric imaging, providing deep penetration with a wide field of view.
• Linear Array Probe (3-12 MHz) – Optimized for high-resolution imaging of superficial structures such as musculoskeletal, vascular, and small parts imaging, offering excellent detail in small or shallow structures.

2. Probe Interchangeability

• The Vscan Air's unique design allows for easy switching between the curved and linear array probes without the need to disconnect or change probes. This makes it efficient and convenient, especially in urgent or fast-paced environments.

3. Compatibility with Mobile Device App

• The Vscan Air seamlessly links to a smartphone or tablet app for real-time imaging, control, and viewing, which enhances portability and ease of use.

Applications

1. Abdominal Imaging

• High-resolution imaging of abdominal organs such as the liver, kidneys, bladder, and gallbladder.
• Biliary system assessment for stones and obstructions.
• Renal artery and aorta evaluations for detecting vascular conditions.

2. OB/GYN & Fetal Imaging

• Detailed fetal biometry and growth monitoring for prenatal care.
• Transabdominal and transvaginal imaging for early pregnancy assessments.
• Amniotic Fluid Index (AFI) and placental health monitoring for pregnancy tracking.
• Evaluation of multi-gestational pregnancies with fetal monitoring capabilities.

3. Pediatrics

• Non-invasive imaging for neonatal and pediatric evaluations, including abdominal, cardiac, and musculoskeletal imaging.
• Ideal for assessing small organs and evaluating growth patterns in pediatric patients.

4. Musculoskeletal (MSK) Imaging

• Joint, tendon, and ligament evaluations for musculoskeletal disorders.
• Soft tissue imaging to detect conditions such as inflammation or tears.
• Ideal for small parts imaging, including muscles and joints.

5. Vascular Imaging

• Peripheral vascular assessments for evaluating blood flow and detecting conditions like deep vein thrombosis (DVT).
• Vascular flow imaging for detailed views of arteries and veins, particularly useful in emergency or outpatient settings.

6. Point-of-Care Imaging

• Portable and convenient for real-time point-of-care assessments.
• Wireless connection for easy data transfer to mobile devices, allowing immediate analysis and decision-making.

Frequently Asked Questions

How does the GE Vscan Air work?

The device uses ultrasound waves to create real-time images of the body’s internal structures. By applying gel to the skin and using the probes to send and receive sound waves, it generates high-resolution 2D images that can be used to diagnose and assess various conditions.

Is the GE Vscan Air easy to use?

Yes! The Vscan Air has an intuitive touchscreen interface that makes it easy for healthcare providers to navigate through the imaging modes and settings. Its lightweight and portable design ensures ease of use for both experienced clinicians and those new to ultrasound technology.

What type of probes are compatible with the GE Vscan Air?

The GE Vscan Air features a dual-probe system, including a curved array probe for imaging deeper structures like organs and a linear array probe for evaluating musculoskeletal, vascular, and soft tissue conditions. Both probes can be easily swapped depending on the imaging needs.

How long does the battery last on the GE Vscan Air?

The GE Vscan Air comes with a long-lasting battery that provides up to 50 minutes of continuous scanning, making it ideal for short assessments and point-of-care applications. It’s also rechargeable, ensuring it’s always ready for use.

Is the GE Vscan Air suitable for emergency settings?

Absolutely! The compact size, wireless design, and high-quality imaging make the Vscan Air an excellent tool for emergency triage situations, ambulances, or first responders. It allows rapid assessment without the need for bulky equipment.

How does the GE Vscan Air support healthcare professionals during patient assessment?

The GE Vscan Air’s real-time imaging, easy-to-use interface, and wireless connectivity help healthcare professionals make quicker, more informed decisions during patient assessments. It’s perfect for fast screenings and guiding diagnosis or treatment decisions at the point of care
