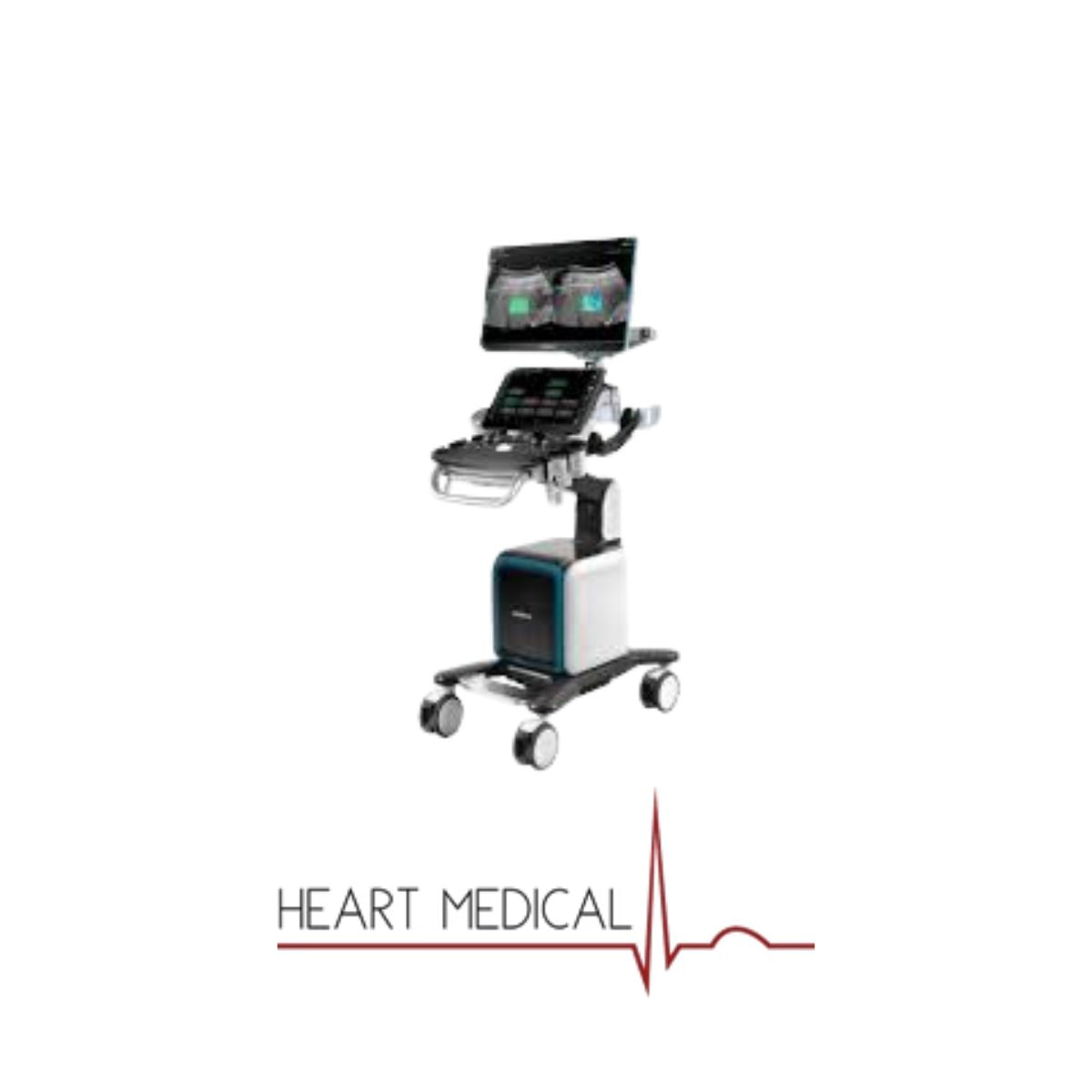

Mindray Consona N9 Ultrasound Machine - MR-CONSONA-N9-US

Description

The Mindray Consona N9 is a console-based ultrasound system that combines ergonomic design with advanced imaging features to provide excellent image quality and diagnostic capabilities. The N9 model is equipped with Mindray's unique ZONE Sonography technology, which enables continuous focus and dynamic beam steering for enhanced resolution and detail.

The Mindray Consona N9 ultrasound machine offers an intuitive user interface, intelligent workflow enhancements, and 4D imaging capabilities for various medical specialties. With its affordable price point, it is a popular choice for healthcare facilities looking to upgrade their ultrasound equipment without breaking the budget.

Key Features

• ZONE Sonography: Enables continuous focus and dynamic beam steering for superior image quality.
• Powerful Hardware Platform: Equipped with an Intel Core i5 CPU and 8GB RAM for fast image processing.
• Ergonomic Design: Designed with user comfort in mind, featuring adjustable height, tilt, and swivel options.
• 4D Imaging Capability: Offers real-time 3D imaging for obstetrics and gynecology exams.
• Fetal Face iLive: Offers simultaneous visualization of the fetal face in 3D and real-time 4D.
• QView: Allows for easy comparison of current and previous images for better diagnosis.
• iPage: Provides automatic image optimization with a single button press.
• SonoAdapt: Automatically adjusts imaging parameters based on the patient's body habitus, improving image quality.
• Smart Scene 3D: Offers automatic volume measurements and analysis for quick and accurate diagnosis.
• Smart Face/Smart OB: Provides automatic fetal face and biometric measurements.
• Sound Touch Elastography: Non-invasive technique for assessing tissue stiffness.
• Auto IMT: Offers automatic measurement of intima-media thickness in carotid arteries.
• Fetal Face iLive: Offers simultaneous visualization of the fetal face in 3D and real-time 4D.

Technical Specifications

• Monitor: 23.8” LED

• Monitor Resolution: 1920×1080

• Touchscreen: 15.6” HD intuitive touchscreen

• Battery Scanning Time: 90 min scanning battery

• Battery: Yes

• Imaging Mode: 2D, Color Doppler, PW Doppler, M-mode, Power Doppler

Probe Compatibility

Convex Array Probes

• SC5-1N: Abdomen
• SC6-1: Obstetrics, Gynecology, Abdomen, Small Parts, Musculoskeletal, Vascular, Urology, Nerve
• SC8-2: Obstetrics, Gynecology, Abdomen, Urology, Vascular
• C11-3: Abdomen, Vascular, Cardiac, Small Parts, Pediatric, Cephalic

Linear Array Probes

• L13-3N: Small Parts, Vascular, Musculoskeletal, Pediatrics
• L14-3Ws: Small Parts, Musculoskeletal, Vascular, Abdomen, Pediatric, Thoracic/Pleural
• L9-3s: Abdomen, Pediatric, Small Parts, Musculoskeletal, Vascular, Nerve, Obstetrics
• L20-5s: Abdomen, Small Parts, Musculoskeletal, Vascular, Nerve

Phased Array Probes

• SP5-1N: Abdomen, Cardiac, Vascular, Cephalic, Thoracic/Pleural
• P7-3Ts: Cardiac (TEE)

Endocavity Probes

• V11-3: OB/GYN, Urology
• DE11-3Ws: OB/GYN, Urology

Volume Probes

• SD8-1s: Obstetrics, Gynecology, Abdomen

Pencil Probes (CW Doppler)

• CW2s: Cardiac
• CW5s: Cardiac, Peripheral Vascular

Applications

• OB/GYN: Provides high-quality images for obstetrics, gynecology, and fetal exams.
• Vascular: Offers advanced imaging capabilities for vascular exams with PW Doppler and Color Flow technology.
• Cardiac: The Mindray Consona N9 offers accurate pediatric and adult cardiac exam diagnoses thanks to its intelligent design and advanced imaging.
• Breast: Equipped with dedicated breast imaging settings and features such as MultiBeam Compound Imaging for improved lesion detection.

Frequently Asked Questions

Can the Mindray Consona N9 be used for pediatric exams?

Yes, the Mindray Consona N9 offers advanced imaging capabilities for pediatric patients.

Is the Mindray Consona N9 compatible with other imaging modalities?

Yes, the Mindray Consona N9 offers image fusion and navigation technology, allowing for easy comparison and integration of multi-modality images.

Is a refurbished Mindray Consona N9 worth buying?

Yes, refurbished Mindray Consona N9 machines are a cost-effective option with a 1-year warranty for peace of mind. All our refurbished machines are inspected and tested to ensure they meet the same high standards.
