Mindray DP 20 Ultrasound Machine

Description

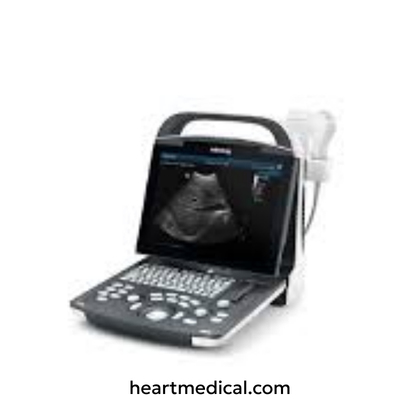

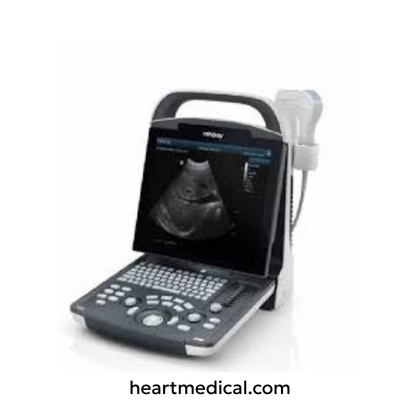

The Mindray DP-20 is a portable, low-cost imaging machine designed for various applications, including urology, abdominal imaging, OB/GYN, and small parts. This system offers excellent image quality and functionality in a compact design suitable for point-of-care use. It provides clear, detailed images with advanced features like iBeam and Tissue Harmonic Imaging (THI).

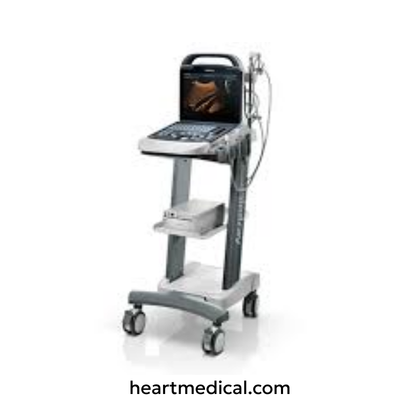

The DP-20 also has an adjustable LCD monitor with a 30-degree tilt capability for comfortable viewing, making it ideal for various clinical settings. With its lightweight design and optional trolley cart, the Mindray DP-20 provides flexibility and convenience for mobile scanning needs.

Key Features

• iClear Speckle Reduction Imaging: Enhances image quality by minimizing noise and improving contrast resolution, resulting in more accurate diagnostics.
• iBeam Compound Imaging: Employs multiple angles to improve image sharpness and reduce artifact interference, thereby providing clearer visualizations of anatomical structures.
• Tissue Harmonic Imaging (THI): Utilizes harmonics generated by tissues to enhance image clarity, delivering superior quality for challenging scanning scenarios.
• iTouch Auto Optimization: Automatically fine-tunes image parameters, ensuring optimal clarity and reducing the time required for manual adjustments.
• M-mode: Offers motion imaging capabilities essential for capturing and evaluating moving structures, such as heart valves and fetal movements.
• ExFOV: Expands the field of view, facilitating enhanced visualization of large organs and tissue areas for more comprehensive assessments.
• iScanhelper: Provides on-screen guidance for ultrasound scanning, making it an invaluable resource for educational purposes and enhancing user proficiency.
• iStation Data Management: Streamlines data management and storage processes, allowing for efficient access and organization of patient records and imaging data.

Technical Specifications

• Active Probe Ports: 2
• Weight: 5.6 kg
• Imaging Modes: 2D
• Storage Size: 8GB
• Max Cine Memory: 11959 Frames
• Monitor: 12.1'' High-Resolution LCD
• Monitor Resolution: 1024×768
• Touchscreen: 13.3"
• USB Ports: 2
• Power: 100-120V, 50/60 Hz
• Dimensions: 6.57" x 11.24" x 13.78"
• PC Export Formats: BMP, JPG
• Video and Output: Ethernet, S-Video, USB, VGA
• Wireless: No


Probe Compatibility

Convex Array Probes

• 35C50EB: Abdomen, OB/GYN, Urology, Pediatrics
• 35C20EA: Abdomen, OB/GYN

Linear Array Probes

• 75L38EB: Small Parts, Vascular, Musculoskeletal
• 75L50EAV: Small Parts, Vascular, Musculoskeletal
• 10L24EA: Small Parts, Vascular, Musculoskeletal

Microconvex Array Probes

• 65C15EA: Abdomen, Pediatrics

Endocavity Probes

• 65EC10EA: OB/GYN, Urology

Applications

• Cardiology: M-Mode facilitates detailed cardiac motion analysis.
• Abdominal Imaging: THI and iBeam enhance clarity for examinations of abdominal organs.
• OB/GYN: Provides clear imaging for monitoring pregnancy and conducting gynecological assessments.
• Musculoskeletal: Perfect for assessing muscles and soft tissues with superior image quality.
• Vascular: iClear enables improved visualization of blood vessels with reduced noise.
• Small Parts: Effective for scanning thyroid, breast, and other superficial structures.

Frequently Asked Questions

Can the Mindray DP-20 be used for pediatric exams?

Yes, the Mindray DP-20 offers advanced imaging capabilities for pediatric patients.

Is the Mindray DP-20 compatible with other imaging modalities?

The Mindray DP-20 offers image fusion and navigation technology, allowing for easy comparison and integration of multi-modality images.

Where Mindray DP-20 is used?

The Mindray DP-20 is used in various medical settings, including hospitals, clinics, and private practices. Its compact design and versatile imaging capabilities make it suitable for various specialties such as OB/GYN, cardiology, MSK, Urology, and general imaging.
