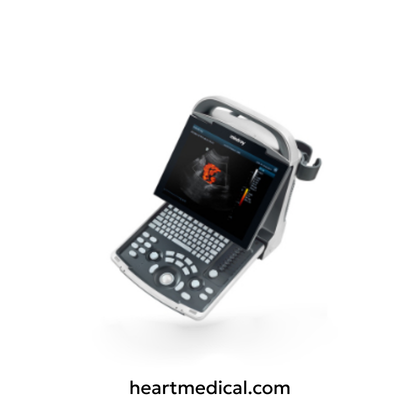

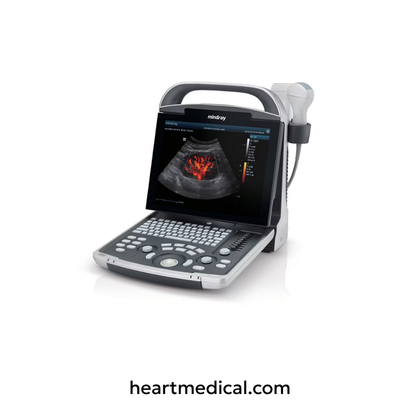

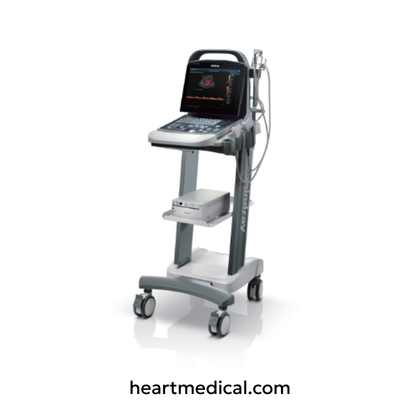

Mindray DP 30 Ultrasound Machine

Description

Mindray DP-30 is an advanced imaging technology that breaks down the barrier between Doppler and B/W ultrasound diagnostic systems. This machine is lightweight and hand-carried and offers exceptional image quality for various applications in primary care. It is designed to meet the growing demands of point-of-care diagnosis with its advanced features, including Color Power Doppler (CPD) and Tissue Harmonic Imaging (THI).

The DP-30 has a full-screen LED monitor with a 30-degree angle, a built-in battery, and two standard transducer connectors. Its compact design and user-friendly interface make it ideal for primary care physicians, emergency departments, and outpatient clinics. Serving California, Arizona, Nevada, and nationwide.

Key Features

• iScanHelper: Provides step-by-step guidance for ultrasound exams, making it an excellent tool for education and training.
• iClear Speckle Reduction Imaging: Enhances image quality by reducing noise and improving contrast resolution.
• Color Power Doppler (CPD): Allows for real-time visualization of blood flow, providing valuable information for vascular studies and other applications.
• Tissue Specific Imaging (TSI): Automatically adjusts imaging parameters based on the scanned tissue type.
• Tissue Harmonic Imaging (THI): Utilizes harmonics generated by tissues to enhance image clarity
• M-mode: Offers motion imaging capabilities essential for capturing and evaluating moving structures, such as heart valves and fetal movements.
• iStorage: Allows for efficient data storage and management, with the ability to export images in various formats.
• iZoom: Enables users to focus on a specific area for detailed examination.
• iStation: Streamlines workflow and enhances data management, allowing for quick access and organization of patient records and imaging data.

Technical Specifications

• Active Probe Ports: 2
• Weight: 12.1 lbs
• Imaging Modes: 2D
• Storage Size: 500 GB
• Monitor: 12.1'' High-resolution LCD
• Monitor Resolution: 1024×768
• Touchscreen: 12.1"
• USB Ports: 2
• Battery: 1.5h uninterrupted scanning (rechargeable)
• Dimensions: 15" x 16" x 18"
• Export Options: USB
• Video and Output: Ethernet, USB, VGA, S-Video

Probe Compatibility

Convex Array Probes

• 35C50EA: Abdomen, OB/GYN, Urology
• 35C20EA: Abdomen, OB/GYN
• 3C5A: Abdomen, OB/GYN, Pediatrics

Linear Array Probes

• 75L38EA: Small Parts, Vascular, Musculoskeletal
• 75L50EAV: Small Parts, Vascular, Musculoskeletal
• 50L60EAV: Veterinary Rectal Imaging
• 10L24EA: Small Parts, Vascular, Musculoskeletal

Microconvex Array Probes

• 65C15EA: Abdomen, Pediatrics

Endocavity Probes

• 65EC10EA: OB/GYN, Urology

Applications

DP-30 Mindray ultrasound system adds power to the following diagnosis:

• Kidney Flow: Evaluates renal function and detect abnormalities in kidney blood flow.
• Umbilical Cord: Provides detailed imaging of the umbilical cord during pregnancy.
• PW Doppler Image of Aorta: Visualizes blood flow in the aorta for cardiovascular assessments.
• Thyroid: Offers clear imaging for thyroid gland evaluations.
• Thyroid Dual Merge: Combines two images for improved visualization of the thyroid gland and surrounding structures.
• Median Nerve: Useful for diagnosing carpal tunnel syndrome and other nerve-related conditions in the hand.

Frequently Asked Questions

What capabilities does the DP 30 Power version offer?

The DP-30 power Doppler effectively identifies blood flow in various clinical conditions, making it crucial for accurately localizing vessels and facilitating precise measurements.

What is the warranty for Mindray DP-30?

The Mindray DP-30's standard warranty is three years, with extended warranties available. Please contact a sales representative for more information.

Can I opt for a refurbished Mindray DP-30?

Yes, we offer refurbished Mindray DP-30 systems that have been thoroughly inspected and tested to ensure quality performance. Contact us for more information on our available options.
