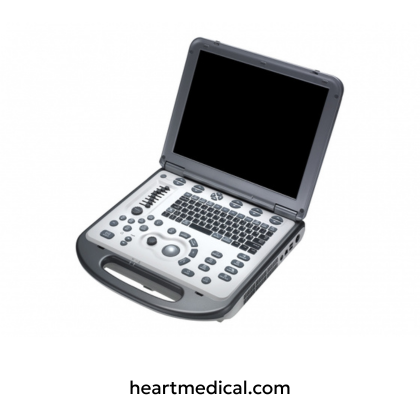

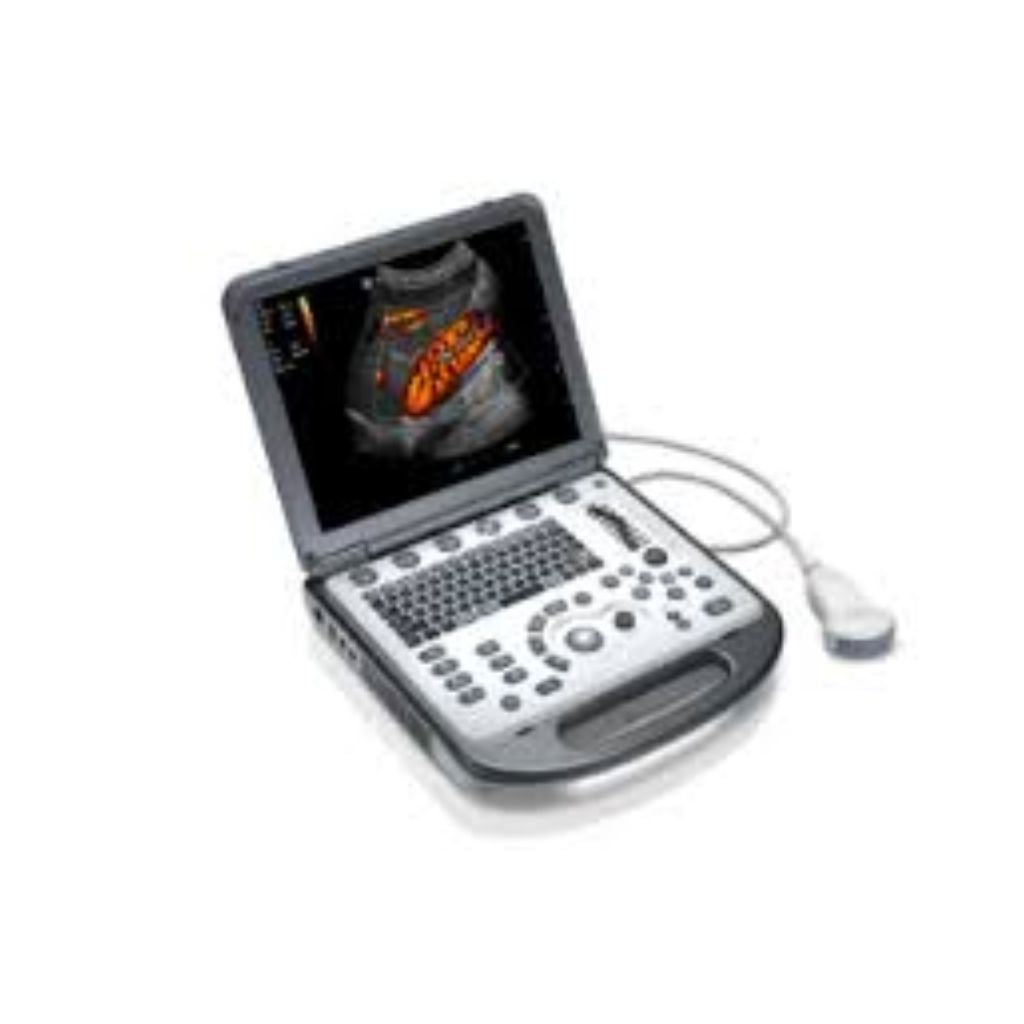

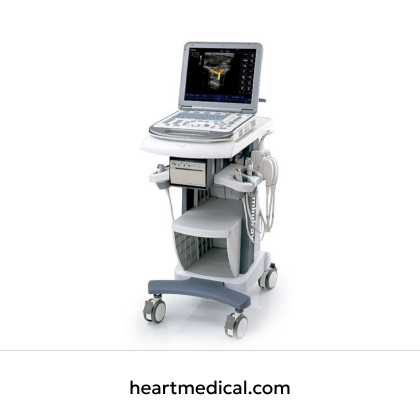

Mindray M6 Ultrasound System

Description

Premium performance with a portable cardiovascular and multi-specialty system

The Mindray M6 Elite is a premium, compact ultrasound system designed for high-level performance across cardiovascular and shared-service applications. This lightweight and powerful platform delivers exceptional image clarity, advanced automation, and AI-powered workflow. The efficient and accurate diagnostic ability makes it ideal for use in all clinical settings including hospitals, outpatient clinics, and mobile environments.

The built-in ZST+ (Zone Sonography Technology) enables M8 to give uniformity and high resolution images. Its advanced imaging toolkit, including UWN Contrast Imaging, Tissue Doppler Imaging (TDI), HR Flow, Natural Touch Elastography, and 4D volume imaging, allows clinicians to evaluate a wide spectrum of conditions with precision. The system comes with a 15.6-inch high-definition LCD monitor paired with a responsive control panel to streamline diagnostic operation.

Designed to elevate workflow, the M8 Elite incorporates intelligent automation tools like Auto LV, Auto IMT, Auto PW Trace, and Smart OB to reduce scan time and operator variability. This portable ultrasound system is featured with a battery ideal for 1.5 hour operation. Its durable alloy casing, anti-shock design, and splash-proof build ensure reliable performance in all environments.

From adult and pediatric cardiac imaging to OB/GYN, MSK, vascular, and interventional procedures, the Mindray M8 Elite combines sophisticated imaging with portability and intelligent automation. In short, M8 delivers high-end ultrasound performance wherever it’s needed.

Key Features

1. Imaging & Performance

• HR Flow & UWN Contrast Imaging – Provides enhanced hemodynamic information and detailed contrast-enhanced imaging.
• Natural Touch Elastography – Assesses tissue stiffness with real-time strain imaging.Tissue Doppler Imaging (TDI) with Quantitative Analysis – Offers speed parameters for myocardial motion analysis.
• Free Xros M & CM – Anatomical M-mode with multi-region and curved sampling for cardiac assessment.
• 4D Volume Imaging – Enables dynamic fetal and gynecological imaging in real-time.
• Smart Doppler & Smart Tracking – Automatically optimizes Doppler gate placement and color box for efficient vascular assessments.
• Multiple Imaging Modes – Includes 2D, Color Flow, PW Doppler, M-Mode, Anatomic M-Mode, TDI, and Elastography.iNeedle™ – Enhances needle visualization during interventional procedures.

2. User Interface & Ergonomics

• 15" High-Resolution Color LCD Monitor – 1024×768 resolution for clear image display.
• User-Defined Keys – Customizable shortcuts to enhance workflow efficiency.
• Control Panel Film – Multilingual interface for global adaptability.
• Robust Alloy Casing – Anti-shock and splash-proof design suited for diverse clinical environments.

3. Advanced Automation & AI Tools

• Auto IMT – Automatically detects and measures intima-media thickness.
• Auto LV – Semi-automatically traces the left ventricular wall for LV function calculation.
• Auto PW Trace & Calculation – Automatically calculates PI, RI, TAMAX, TAMEAN, and volume flow.Smart OB – One-click measurements of fetal parameters like BPD, HC, FL, AC, OFD.
• Z-Score Analysis – Evaluates fetal heart function using biometric data.
• iScanHelper – Real-time embedded tutorial tool for user guidance and education.

4. Connectivity & Data Management

• iStation™ – Onboard patient information management system.
• Integrated 1TB Hard Drive – Large storage capacity for images, reports, and measurement data.
• iStorage & MedSight – Enables transfer of clinical data to PCs and smartphones.
• Network Storage Function – Transfers data to shared folders via Ethernet.
• Remote Control Function – Supports off-site operation and review.

5. Portability & Power

• Built-In Battery – Enables continuous scanning for more than 1.5 hours.
• Fast Boot Time – System ready in seconds for emergency situations.
• Compact Design – Lightweight and mobile for POC and field-based applications.

Technical Specifications

1. System Architecture & Processing

• Operating System – Proprietary Mindray Ultrasound System OS.Image Processing Technology – Multiple Beam Formation, Tissue Harmonic Imaging (THI), iBeam™.
• Dynamic Range Adjustment – Real-time adjustment supported.
• Frame Rate – High frame rate enabled via HR Flow and Multi-Beam Technology.
• Extended Imaging Modes – Trapezoidal Scan, EFV (Extended Field of View), iScape™, UWN Contrast Imaging.
• Trapezoid Imaging – Expands field of view on linear probes for wider anatomical coverage.
• ExFOV (Extended Field of View) – Available on convex and linear probes to display extended anatomical regions for more diagnostic context.
• IMT Measurement – Automated detection and measurement of carotid intima-media thickness for vascular assessment.
• B-Steer™ – Scan line adjustment tool for improved visualization of needles, vessels, and nerves during interventional procedures.

2. Dimensions & Weight

• Weight – 5.5 kg (12.1 lbs).
• Dimensions – 360 mm × 357 mm × 750 mm.

3. Power & Electrical Specifications

• Battery – Rechargeable Lithium-ion battery.
• Power Adapter – External power adapter included.
• Continuous Operation Time – More than 1.5 hours on battery.

4. Display & Imaging Interface

• Monitor – 15” High-Definition LCD, 1024 × 768 resolution.
• Touchscreen – Not available.
• Image Optimization Tools – iZoom™, Auto-Optimizer, Smart Track, iNeedle™.

5. User Interface & Control

• Keyboard – Standard layout with language-specific control panel film.
• Control Features – User-defined keys, remote control support.
• Workflow Tools – iStation™, iStorage™, MedSight™, iRoam™.

6. Connectivity & Storage

• Onboard Storage – Integrated 1 TB Hard Drive.External Storage – USB 2.0, DVD external.
• Networking & Transfer – Ethernet, Wireless LAN, DICOM compatible.
• Image Transfer & Printing – USB printers, Ethernet color printers, Thermal B/W printers.

7. Input & Output Ports

• Probe Ports – 1 active electronic scanning probe port, 1 pencil probe port.
• USB Ports – 2 USB 2.0 ports.
• Video Outputs – S-Video, VGA, Analog Video In/Out.

8. Imaging Modes & Capabilities

• 2D Imaging – Available with advanced processing.M-Mode – Standard and Anatomic M-Mode (Free Xros M, CM).
• Color Doppler – Color Flow, Power Flow, HR Flow.
• Spectral Doppler – PW, CW, Smart Doppler, HPRF.
• Contrast Imaging – UWN Contrast Imaging (Ultrasound Wideband Non-linear).
• Auto Measurement Tools – Auto IMT, Auto LV, Auto PW Trace & Calculation, Smart OB.

9. Compliance & Safety

• Compliance – CE Certified.Device Type – Portable Diagnostic Ultrasound System.
• Build – Robust alloy casing with anti-shock and anti-splash protection.
• Usability – iScanHelper™ onboard education tutorial for guided learning.

Probe Compatibility

1. Linear & Superficial Imaging

• L14-6Ns (High-Frequency Linear Probe) – Designed for superficial organ imaging including thyroid, breast, and MSK.

      2. Convex & Micro-Convex Probes

• C11-3s (Micro Convex) – Suitable for neonatal cephalic, vascular, pediatric, abdominal, and cardiac applications.
• 4CD4s (4D Volume Probe) – Supports OB/GYN and fetal 4D imaging.

      3. Endocavitary & Specialty Probes

• V10-4s (Straight Handle Transvaginal Probe) – For GYN and OB applications.
• V10-4Bs (Curved Handle Transvaginal Probe) – Ergonomic design for OB/GYN use.
• 6LB7s (Bi-Planar Array Probe) – Designed for prostate examinations with dual-plane imaging.
• Needle-Guided Brackets – Stainless steel accessories compatible with transvaginal probes for interventional procedures.

Applications

1. Cardiac Imaging (Adult & Pediatric)

• Comprehensive 2D, M-mode, and Doppler imaging for adult and pediatric cardiac assessments.
• Tissue Doppler Imaging (TDI) for myocardial velocity and diastolic function evaluation.
• Color, PW, and CW Doppler modes for accurate hemodynamic measurements.
• Smart Track for real-time Doppler optimization and flow analysis.
• Stress Echo and EFV (Extended Field of View) to enhance cardiac function studies.


      2. Vascular Imaging (Peripheral & Cerebrovascular)

• Color Flow, Power Doppler, and Spectral Doppler for precise vascular diagnostics.
• IMT (Intima-Media Thickness) Measurement for atherosclerosis screening.
• Trapezoidal and ExFOV imaging for extended vascular visualization.
• Small vessel imaging with HR Flow for detailed vascular mapping.


      3. OB/GYN & Fetal Imaging

• High-resolution imaging for fetal biometry, anatomy scans, and growth monitoring.
• Transvaginal and Transabdominal capabilities for comprehensive women’s health care.
• UWN Contrast Imaging for enhanced vascular perfusion visualization.
• iScape panoramic imaging for detailed uterine and fetal environment evaluation.


      4. Abdominal & General Imaging

• Multi-organ scanning including liver, kidney, pancreas, spleen, and gallbladder.
• Tissue Harmonic Imaging (THI) and iClear for optimal resolution and contrast.
• Advanced Doppler functions for vascular assessment within abdominal organs.
• iBeam for improved lesion visualization and structural detail.


      5. Small Parts & Musculoskeletal Imaging (MSK)

• Thyroid, breast, and testicular assessments with high-definition imaging.
• Musculoskeletal evaluations including tendons, ligaments, and joint structures.
• Needle visualization via iNeedle and B-Steer for guided procedures and biopsies.
• iZoom and iStation to streamline small part examinations and documentation.


      6. Urology & Prostate Imaging

• Renal and bladder evaluations with detailed B-mode and Doppler modes.
• TRUS (Transrectal Ultrasound) support for prostate size and lesion detection.
• PowerFlow for visualizing subtle vascular flow in urological organs.


      7. Point-of-Care & Intraoperative Imaging

• Portable and versatile for critical care, emergency, and operating room scenarios.
• Battery-powered operation with wireless connectivity and iRoam for data mobility.
• Real-time biopsy assistance with Smart Needle visualization tools.
• Contrast-Enhanced Ultrasound (CEUS) with UWN Contrast Imaging for enhanced lesion characterization.


Frequently Asked Questions

How many active probe ports does the Mindray M6 have?

The M6 supports up to three active transducer ports, facilitating quick transitions between different probes during examinations.

What type of operating system does the Mindray M6 use?

The Mindray M6 operates on a proprietary system designed for optimal performance and seamless integration with medical imaging workflows.

What are the available storage options for saving and transferring images?

The M6 is equipped with a 1TB internal hard drive for extensive exam and report storage. It also offers USB ports for external storage devices and supports DICOM connectivity for integration with PACS systems.

How does the standby feature work on the Mindray M6?

The M6 features a quick 'boot up' capability and a built-in battery, allowing for rapid system readiness and portability during examinations.

Does the Mindray M6 support remote access for troubleshooting and training?

While the M6 does not feature built-in remote access, Mindray offers comprehensive online training programs and troubleshooting support to ensure users can effectively operate the system.

What kind of safety and compliance certifications does the Mindray M6 have?

The M6 complies with international safety standards, including IEC 60601-1 for medical electrical equipment safety.

Can I perform advanced post-processing and analysis on a PC?

While the M6 does not natively support exporting raw data for external post-processing, it offers a range of on-board quantification and analysis tools to aid in diagnostics.
