Mindray M7 Ultrasound Machine - MR-M7-US

Description

Portable, Powerful Imaging for Accurate Diagnostics Anywhere

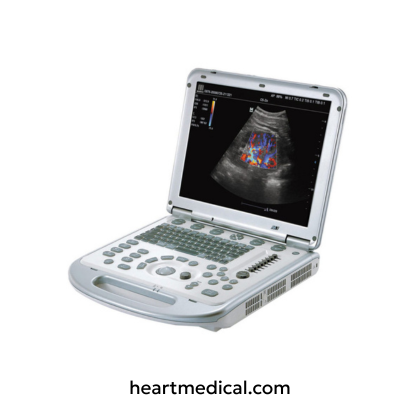

The Mindray M7 is a versatile and portable ultrasound system, designed to deliver high-quality imaging across a wide range of clinical applications. Ideal for both in-hospital and mobile use, the M7 is well-suited for vascular, cardiac, OB/GYN, abdominal, musculoskeletal, and small parts imaging. Its compact, laptop-style design ensures ease of transport, while its advanced features provide exceptional imaging clarity for accurate diagnostics.

Powered by advanced Octal-beam imaging technology and Tissue Harmonic Imaging, the M7 delivers high-resolution, detailed images with impressive penetration, making it ideal for challenging clinical cases. The system also integrates real-time 3D imaging, iZoom for enhanced accuracy, and Tissue Doppler Imaging (TDI) to support precise measurements, especially in vascular and cardiac applications.

With a 15-inch high-resolution TFT LCD, the M7 offers a 170-degree viewing angle, ensuring clear and consistent image quality from all positions. iClear speckle suppression and iBeam spatial compounding further enhance the visual quality by reducing noise and improving image clarity.

The M7's ergonomic design and intuitive user interface ensure smooth operation. With features such as iScape panoramic imaging and automated functions like Auto Doppler and Auto ECG, the system streamlines workflow, improving efficiency and diagnostic confidence. Its ability to handle a wide array of imaging needs makes it a versatile solution for hospitals, clinics, and mobile imaging services.

Key Features

1. Imaging & Performance

• Octal-Beam Imaging Technology – Delivers high-quality, detailed images with superior penetration for improved diagnostic accuracy.
• Tissue Harmonic Imaging – Enhances image clarity and contrast resolution by reducing artifacts and noise.
• iZoom Imaging – Increases imaging accuracy for better visualization of small structures and detailed tissue.
• iClear Speckle Reduction – Minimizes speckle noise, providing cleaner, sharper images for precise diagnostics.
• iBeam Spatial Compounding – Combines multiple imaging angles to reduce shadows and improve image clarity, especially in difficult-to-image areas.
• Real-Time 3D Imaging – Captures and displays 3D images for enhanced visualization of complex anatomical structures.
• Live 3D / 4D Imaging – Provides dynamic imaging capabilities, offering real-time 3D and 4D visualizations for advanced assessments.
• Color Doppler – Assesses blood flow and vascular structures, offering critical information for cardiac, vascular, and OB/GYN applications.
• Tissue Doppler Imaging (TDI) – Provides high-resolution motion measurements for cardiac and vascular analysis.

2. User Interface & Ergonomics

• 15" High-Resolution TFT LCD Display – Offers exceptional clarity with a 170° viewing angle for better image observation from various positions.
• Intuitive Touchscreen Interface – The interactive touchscreen simplifies navigation and offers a customizable user interface.
• Compact & Portable Design – Weighs just 10 lbs for easy mobility; ideal for a wide range of clinical environments.

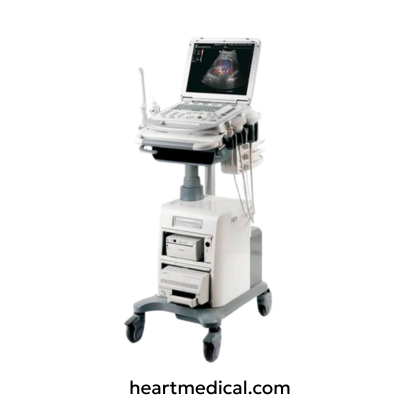

• Rolling Cart Option – Available rolling cart enhances portability, making it easy to transport between exam rooms and locations.

3. Versatility & Clinical Applications

• Shared-Service System – Suitable for a broad spectrum of clinical applications, including Vascular, Cardiac, Abdomen, MSK and Orthopedic, Pain management, OB/GYN and more.

• Cardiac Imaging Technology – While primarily known for general imaging, the M7 also supports basic cardiac applications, making it a versatile choice for healthcare providers.

4. Connectivity & Data Management

• Multiple Data Export Options – Supports standard image and report formats, including DICOM, JPEG, MPEG, and AVI for seamless integration.
• USB & Ethernet Ports – Enables fast data transfer and connectivity with external devices and systems.
• Cloud Integration – Enables secure sharing and access to images and reports via Tricefy® cloud for remote consultations and collaboration.

5. Design & Portability

• Lightweight & Mobile – Weighs only 10 lbs, ideal for on-the-go use and point-of-care environments.
• Rolling Cart Available – Optional rolling cart for enhanced mobility, stability, and ease of transport between locations.
• Efficient Cooling System – Designed to maintain optimal performance with low heat emission, ensuring reliable operation during extended use.

Technical Specifications

1. System Architecture & Processing

• Operating System – Proprietary Mindray software platform
• Image Processing Technology – Tissue Harmonic Imaging, iClear Speckle Reduction, iBeam Spatial Compounding
• Digital Beamformer – Advanced beamforming for superior image quality and penetration
• Maximum Frame Rate – 643 fps (probe and settings dependent)
• Dynamic Range Adjustment – Continuous dynamic receive focus and aperture
• Max Depth – 30 cm

2. Dimensions & Weight

• Width: 355 mm (14 in)
• Depth: 355 mm (14 in)
• Height: 76 mm (3 in)
• Weight: 6.4 kg (14 lbs)

3. Power & Electrical Specifications

• Input Voltage – 100-240V AC, 50/60 Hz
• Power Consumption – 150 VA maximum
• Battery – Integrated rechargeable battery for portable use
• Cooling System – Passive cooling design for efficient operation

4. Display & Imaging Interface

• Monitor – 15” High-Resolution LCD, 1024x768 resolution
• Monitor Adjustments – Adjustable tilt for optimal viewing angles
• Touchscreen Control – Not available
• Trackball/Trackpad – Trackball interface for navigation and image adjustments

5. User Interface & Control

• Keyboard – Compact, ergonomic layout for easy operation
• Touchscreen Control – Not available
• Interactive Backlighting – Illuminated control panel for use in low-light environments
• TGC Controls – On-screen controls for real-time image tuning

6. Connectivity & Storage

• Onboard Storage – 160 GB HDD
• External Storage – Supports USB drives, CD/DVD-R (external)
• Networking & Data Transfer – Ethernet (RJ45) for network integration
• Export Options – DICOM, BMP, JPG, RAW, AVI, USB
• DICOM Options – MPPS, Print, Query/Retrieve, Store, Structured Reports, Worklist
• Wireless Connectivity – Yes, integrated wireless for easy sharing

7. Input & Output Ports

• USB Ports – 2 rear USB ports for external storage and connectivity
• Video & Output Options – Audio, Composite Video, DVI, Ethernet, S-Video, USB
• Export Formats – AVI, BMP, JPG

8. Safety & Compliance

• CE Marked – Compliant with relevant European Medical Device Directives
• Electrical Safety Standards – IEC 60601-1 (Medical Electrical Equipment – General Requirements)
• Biological & Usability Standards – ISO 10993-1 (Biological Evaluation of Medical Devices), EN 62366 (Usability Engineering for Medical Devices)
• Virus Protection – Secure and restricted ports for third-party software

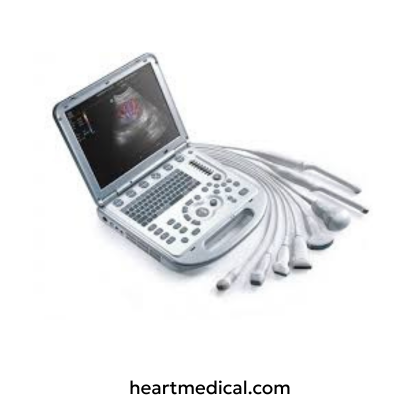

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

Phased array probes provide high penetration for cardiac, pediatric, and abdominal imaging, delivering superior real-time visualization.

• P4-2s (1.5 – 4.5 MHz) – Ideal for general cardiac and pediatric applications.
• P7-3s (2.0 – 8.0 MHz) – Used for adult and pediatric cardiac imaging, offering a wide range of depth for optimal visualization.
• P7-3Ts (1.9 – 8.2 MHz) – Designed for pediatric and adult cardiac imaging, supports high-resolution imaging.
• Sp5-1s (1.1 – 5.5 MHz) – Suitable for pediatric and general imaging, with improved depth penetration for adult cardiac studies.

2. Convex Array Probes (Abdominal & OB/GYN Imaging)

Convex probes are designed for wide-field imaging, suitable for abdominal, OB/GYN, and neonatal applications.

• C5-2s (3.5 – 5.7 MHz) – Optimized for abdominal, OB/GYN, and pediatric applications.
• C6-2Gs (1.7 – 6.0 MHz) – Provides detailed imaging for OB/GYN, fetal, and general abdominal applications.
• C11-3s (3.0 – 11.2 MHz) – Ideal for abdominal, OB/GYN, and pediatric imaging with high-resolution capabilities.

3. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

Linear array probes offer high-frequency imaging for vascular, small parts, and musculoskeletal applications.

• L12-4s (3.0 – 13.0 MHz) – Used for vascular, small organ, and musculoskeletal imaging with high resolution.
• L14-6Ns (3.5 – 16 MHz) – Supports vascular, small parts, and neonatal imaging, offering a broad frequency range.
• L14-6s (5.4 – 16.2 MHz) – Optimized for small parts, musculoskeletal, and neonatal imaging.
• L16-4Hs (3.5 – 16.0 MHz) – Ideal for musculoskeletal, small parts, and pediatric imaging.
• L7-3s (2.6 – 8.2 MHz) – Suitable for small organ and musculoskeletal imaging with high resolution.
• 7L4S (4.4 – 13.5 MHz) – Used for vascular and musculoskeletal imaging with superior image quality.
• 7LT4s (4.8 – 13.5 MHz) – Designed for musculoskeletal and small parts imaging, offering versatile depth control.

4. Pencil (CW Doppler) Probes (Cardiac Doppler)

Pencil probes are used for continuous wave Doppler imaging, particularly for cardiac blood flow analysis.

• CW2s (2.0 MHz) – Dedicated to continuous wave Doppler applications, especially for cardiac flow measurements.
• CW5s (5.0 MHz) – High-frequency pencil probe for accurate cardiac Doppler imaging.

5. Specialty Probes (Endocavitary & Urological Imaging)

These probes are designed for specialized imaging applications such as transvaginal, transrectal, and urological imaging.

• L12-4s (3.0 – 13.0 MHz) – Can also be used for urological and transrectal imaging.

6. Probe Accessories & Biopsy Guides

• Biopsy Guides – Available for linear and convex probes, supporting various biopsy procedures.
• LVO Contrast Support – Certain phased array and linear probes support left ventricular contrast imaging for enhanced cardiac assessment.

Applications

1. Abdominal Imaging

Comprehensive imaging of abdominal organs with high-resolution B-mode and Doppler capabilities.

• Liver, Kidney, Spleen, and Pancreas Imaging for detecting abnormalities such as cysts and tumors.
• Gallbladder and Biliary System Assessment for stones, polyps, and duct obstructions.
• Aorta and Renal Artery Evaluation for detecting aneurysms and stenosis.

2. Musculoskeletal (MSK) Imaging

Detailed imaging for musculoskeletal conditions, providing both high-resolution and Doppler assessments.

• Tendon, Ligament, and Joint Evaluations for detecting tears, strains, and inflammation.
• Soft Tissue Mass Characterization to differentiate between benign and malignant lesions.
• Evaluation of muscles and tendons for trauma, injury, and degeneration.

3. OB/GYN & Fetal Imaging

Advanced imaging for obstetric and gynecological conditions, with features for comprehensive fetal evaluation.

• Fetal Biometry and Growth Monitoring to assess fetal development and health.
• Transabdominal and Transvaginal Imaging for early pregnancy and gynecological assessments.
• Amniotic Fluid Index (AFI) and Placental Health Monitoring for evaluating pregnancy health.
• Multi-Gestational Pregnancy Evaluation to assess the health of multiple fetuses.

4. Small Parts Imaging

High-resolution imaging for small organ evaluation and pathology detection.

• Thyroid, Breast, and Testicular Imaging to detect nodules, cysts, and tumors.
• Soft Tissue Imaging for identifying abnormalities in small organs and tissues.

5. Vascular Imaging

Color Doppler, Power Doppler, and Spectral Doppler for vascular assessments and blood flow evaluations.

• Peripheral Vascular Imaging for assessing conditions like deep vein thrombosis (DVT) and arterial disease.
• Carotid Artery Evaluation for detecting plaque, stenosis, and other vascular conditions.
• Renal Doppler Studies to evaluate kidney perfusion and vascular conditions.
• 6. Urological Imaging

Comprehensive imaging for urological conditions with high-resolution capabilities.

• Bladder Volume and Wall Assessment for urinary retention and voiding dysfunction.
• Renal Imaging to assess kidney structure and function.
• Prostate Imaging (TRUS) for prostate evaluation, including size and lesion detection.

7. Anesthesia & Intraoperative Imaging

Real-time intraoperative guidance for surgical procedures, offering high-precision imaging.

• Needle Guidance for real-time visual assistance during injections and biopsies.
• Biopsy Assistance to ensure accurate and effective procedures.
• Contrast-Enhanced Ultrasound (optional) for improved visualization in complex vascular and urological procedures.

Frequently Asked Questions

1. What imaging modes does the Mindray M7 Ultrasound support?

The Mindray M7 Ultrasound supports various imaging modes, including 2D, 3D/4D, Color Doppler, Power Doppler, Spectral Doppler, M-Mode, and Tissue Doppler. This allows for comprehensive diagnostic imaging across different clinical applications.

2. What types of ultrasound probes are compatible with the Mindray M7?

The Mindray M7 is compatible with a variety of ultrasound probes, including convex, linear, phased array, and continuous wave probes. Some of the common probes include the Mindray C5-2s, L14-6s, L12-4s, and P4-2s.

3. Can the Mindray M7 Ultrasound perform vascular and Doppler assessments?

Yes, the Mindray M7 Ultrasound includes Color Doppler, Power Doppler, and Spectral Doppler for vascular assessments, allowing healthcare professionals to evaluate blood flow and detect vascular conditions, such as deep vein thrombosis (DVT) and arterial diseases.

4. What is the maximum depth that the Mindray M7 Ultrasound can image?

The Mindray M7 Ultrasound can image up to a maximum depth of 30 cm, providing detailed views of internal structures for various diagnostic needs, including abdominal, musculoskeletal, and vascular imaging.

5. How does the Mindray M7 Ultrasound handle data storage and export?

The Mindray M7 Ultrasound offers a 160GB HDD for onboard storage, and it supports external storage via USB. It also provides various export options, including BMP, DICOM, JPG, and RAW formats, for easy sharing and analysis of diagnostic images.
