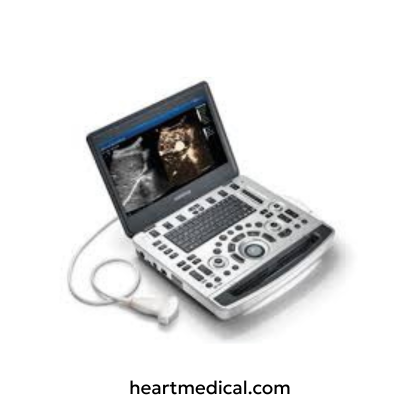

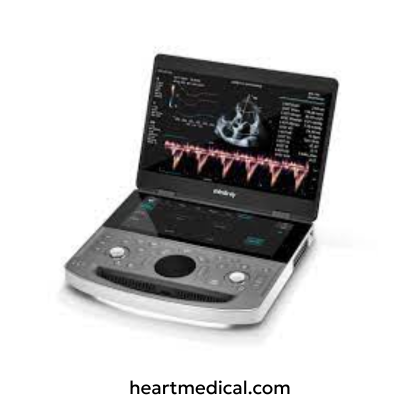

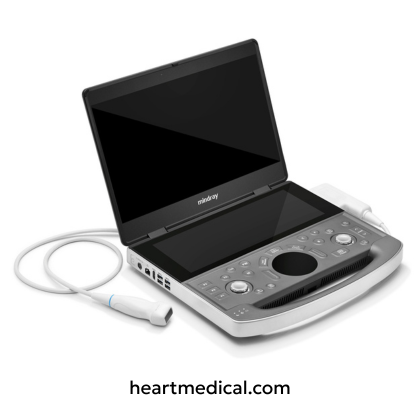

Mindray ME8 Ultrasound

Description

Ultra-portable ultrasound system with AI-powered precision

The Mindray ME8 is a premium laptop-based ultrasound system engineered for versatility, portability, and precision across a wide range of clinical applications. Its compact and powerful design delivers exceptional imaging performance due to Mindray’s advanced ZONE Sonography® Technology+ (ZST+). Such technological supports make accurate and confident diagnostics in cardiology, abdominal, OB/GYN, MSK, emergency, and critical care environments.

ME8 is an exquisite ultrasound system with military grade durability, lightweight, and magnesium alloy shell. Its 15.6-inch high-resolution LED monitor and seamless control panel with multi-gesture touch interface provide an intuitive and ergonomic scanning experience in any clinical setting.

The ME8 is packed with smart automation tools such as Auto EF, Smart VTI, Smart IVC, Smart Bladder, Auto GA, and Smart FHR. All these tools are designed to reduce operator workload, accelerate decision-making, and enhance diagnostic accuracy. Moreover, the advanced needle guidance technologies like eSpacial Navi™ and iNeedle+™ offer precise needle visualization during interventional procedures.

Built for modern healthcare, the ME8 incorporates Mindray’s M-Secure suite for robust cybersecurity, including data encryption, secure data wipe, access control, and OS hardening. Transducer tracking through Z-Tracking™ ensures traceability and enhances infection control protocols. Whether deployed in hospitals, mobile units, or point-of-care settings, the Mindray ME8 delivers clinical excellence with unmatched reliability.

Key Features

1. Imaging & Performance

• ZONE Sonography® Technology+ (ZST+) – Advanced software-based beamforming ensures exceptional image quality, improved resolution, and faster frame rates across all modalities.
• Single Crystal 3T Transducer Technology – Enhances penetration and resolution for superior clarity in deep tissue imaging.
• HD Scope – Improves detail and contrast, sharpens small lesions and organ structures, and enhances tissue boundary definition.
• Smart VTI (Velocity Time Integral) – Automatically measures VTI and calculates Cardiac Output (CO) for efficient cardiac assessments.
• Smart IVC (Inferior Vena Cava) – Enables quick volume status evaluation with automated IVC measurements.
• Smart FHR & Smart Bladder – Automated fetal heart rate and bladder volume calculation using B-mode imaging.
• Smart GA (Gastric Antrum) – AI-powered measurement of gastric antrum to support perioperative assessments.
• Multiple Imaging Modes – Supports B-Mode, Color Doppler, PW/CW Doppler, M-Mode, and specialized measurement tools.

2. User Interface & Ergonomics

• 15.6″ High-Resolution LED Monitor – Offers superior contrast resolution with a 185° hinge for optimal visibility in any environment.
• 12.3″ Touchscreen Control Panel – Seamless and intuitive with multi-gesture support and configurable presets.
• Seamless, Fluid-Resistant Design – Allows easy cleaning and disinfection, ideal for infection control protocols.
• Vertical Cable Routing – Prevents cable fatigue and dragging; enhances mobility and cleanliness.
• Retractable Cord Option – Minimizes tripping hazards and contamination risk in fast-paced clinical settings.
• Three Storage Baskets – Improves practicality and accessibility of accessories during scanning.

3. Advanced Automation & AI Tools

• Auto EF – Proprietary technology for automatic EDV/ESV/EF calculation for left ventricular evaluation.
• AI-Powered Smart Tools – Includes Smart Bladder, Smart FHR, Smart VTI, and Smart GA to accelerate diagnostic workflows.
• Needle Guidance Solutions –
• iNeedle+™ – Automatically detects needle angle and improves visibility during interventions.
• eSpacial Navi™ – 4D magnetic needle navigation for precise tracking in both in-plane and out-of-plane procedures.
• Z-Tracking™ – Links transducer serial numbers to patient records, supporting traceability and infection control.
• eGateway Integration – Facilitates seamless transfer of reports, images, and patient demographics to EHR systems.

4. Connectivity & Data Management

• Wired/Wireless DICOM Connectivity – Includes DICOM encryption for secure image sharing and network access.
• USB, Ethernet, and CD/DVD Storage – Multiple options for fast data export and device integration.
• eGateway Compatible – Streamlines data transmission to hospital systems and PACS.
• Cybersecurity Suite (M-Secure) – Multi-layered approach with data encryption, OS hardening, antivirus, and access control.
• Secure Data Wipe – Ensures complete removal of sensitive patient data when required.

5. Design & Portability

• Ultra-Lightweight & Thin Design – At just 6.6 lbs (3 kg) and 1.7 inches (44 mm) thick, ME8 is one of the most portable laptop ultrasound systems.
• Durable Magnesium Alloy Shell – Provides ruggedness to withstand challenging clinical environments.
• 8-Hour Battery Life with U-Bank – Supports extended usage without needing external power.
• Ergonomic Cart Option – Features include 320 mm lifting range, retractable power cable, and up to three transducer ports.
• Laptop Form Factor – Enables rapid deployment across clinical settings with minimal setup time.

Technical Specifications

1. System Architecture & Processing

• Operating System – Customized Embedded Linux OS with M-Secure Hardening
• Image Processing Technology – ZONE Sonography® Technology+ (ZST+)
• Digital Beamformer – Software-based beamforming for precise image acquisition
• Dynamic Range Adjustment – Real-time dynamic receive focus and aperture optimization
• Acoustic Frame Rate – High frame rate imaging across all modalities (probe dependent)

2. Dimensions & Weight

• Width – 375 mm (14.8 in)
• Depth – 315 mm (12.4 in)
• Height – 44 mm (1.7 in)
• Weight – 3 kg (6.6 lbs)
• Material – Magnesium Alloy Shell for enhanced durability

3. Power & Electrical Specifications

• Input Voltage – 100–240V AC, 50/60 Hz
• Power Consumption – Low-power operation for extended battery performance
• Battery Life – Up to 8 hours continuous scanning with U-bank companion battery
• Cooling System – Fanless design for quiet operation and reduced maintenance

4. Display & Imaging Interface

• Monitor – 15.6” Full HD LED, high-contrast, 1920x1080 resolution, 185° hinge rotation
• Touchscreen Control – 12.3” intuitive multi-touch interface with gesture support
• Image Clarity Enhancements – HD Scope, Single Crystal 3T Transducers

5. User Interface & Control

• Control Panel – Seamless fluid-resistant design with intuitive layout
• Touch & Gesture Controls – Supports multi-touch interaction for quick navigation
• TGC Controls – On-screen TGC and gain sliders for optimized real-time image tuning
• Ergonomic Design – Lightweight, portable, and user-centric for point-of-care usage

6. Connectivity & Storage

• Onboard Storage – Solid-state internal storage with high-speed access

• External Storage Options : USB Memory Devices, External Hard Drives

• Networking & Data Transfer : Ethernet and WI- FI (optional), DICOM: Print, store, worklist, Query/Retrieve, MPPS, Mindray eGateway - Seamless integration to EHR/EMR Systems, Remote access Support - software upgrades and service diagnostics

7. Input & Output Ports

• USB Ports – Multiple USB 2.0 and 3.0 ports
• HDMI/VGA Output – High-definition external monitor support
• Audio Output – Integrated stereo audio out
• Probe Connectivity – Up to 2 transducers via probe extender (optional cart supports 3)

8. Safety & Compliance

• CE Marked – Conforms to Council Directive 93/42/EEC for Medical Devices
• Electrical Safety Standards –IEC 60601-1, IEC 60601-1-2, and IEC 60601-2-37
• Biological & Usability Standards –ISO 10993-1 and EN 62366
• Cybersecurity (M-Secure Suite) –Data Encryption (Wired/Wireless DICOM), Secure Data Wipe, OS Hardening, and Access Control & Antivirus
• Transducer Tracking – Z-Tracking™ for infection control and traceability

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

These probes are designed for cardiac, pediatric, and abdominal imaging, offering high penetration and real-time imaging capabilities.

• SP5-1Ns (1.0 – 5.0 MHz) – Used for cardiac, pediatric, abdominal, gynecology, obstetrics, and thoracic/pleural imaging. Compatible with vascular and cephalic imaging.

2. Convex Array Probes (Abdominal & OB/GYN Imaging)

Convex probes provide a wide field-of-view ideal for abdominal, OB/GYN, and neonatal applications.

• SC5-1Ns (1.5 – 5.0 MHz) – Suitable for abdominal, gynecology, obstetrics, vascular, nerve, MSK, urology, thoracic/pleural, and small parts imaging.
• C11-3s (1.5 – 3.0 MHz) – Used for abdominal, cardiac, cranial, nerve, and vascular imaging.

3. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

Linear probes offer high-frequency imaging for vascular, musculoskeletal, small organs, and pediatric applications.

• L12-3RCs (3.0 – 12.0 MHz) – Ideal for musculoskeletal, nerve, pediatric, small parts, and vascular imaging.
• L11-3VNs (3.0 – 11.0 MHz) – Optimized for musculoskeletal, nerve, small parts, and vascular imaging.
• L14-6Ns (6.0 – 14.0 MHz) – Provides imaging for musculoskeletal, nerve, pediatric, small parts, superficial, and vascular applications.
• L20-5s (5.0 – 20.0 MHz) – Designed for musculoskeletal, nerve, small parts, and ocular imaging.
• L9-3s (3.0 – 9.0 MHz) – Suitable for musculoskeletal, nerve, small parts, and vascular imaging.

4. Endocavitary & Specialty Probes (Transvaginal, Urological, Intraoperative)

These probes are designed for internal examinations, such as transvaginal, transrectal, and intraoperative imaging.

• V11-3Hs (3.0 – 11.0 MHz) – Used for gynecology, obstetrics, and urology imaging.
• P7-3Ts (3.0 – 7.0 MHz) – Focused on transesophageal imaging for cardiac assessments.
• P8-3Ts (3.0 – 8.0 MHz) – For transesophageal echo imaging with high-frequency detail.

5. Continuous Wave (CW Doppler) Probes (Cardiac Doppler)

These probes are dedicated to high-velocity blood flow assessments, commonly used for cardiac evaluations.

• CW2s (2.0 MHz) – Used for continuous wave Doppler applications in cardiac exams.

6. Specialty Imaging Probes (Additional Applications)

• P10-4s (4.0 – 10.0 MHz) – Ideal for abdominal, cardiac, and cranial imaging.
• L16-4Hs (4.0 – 16.0 MHz) – Optimized for intraoperative, musculoskeletal, nerve, and vascular surgery applications.

7. Probe Accessories & Biopsy Guides

• Multi-angle biopsy guides – Available for convex and linear probes for guided procedures.
• Reusable biopsy guides – Compatible with most linear and convex probes for enhanced diagnostic imaging.

Applications

1. Cardiac Imaging (Adult & Pediatric)

• 2D and Doppler Cardiac Imaging: Provides detailed imaging for both adult and pediatric patients, ensuring high-resolution assessment of heart structure and function.
• Stress Echo: Non-invasive evaluation of cardiac function under stress conditions to assess heart performance during physical or pharmacological stress tests.
• Automated Ejection Fraction (Auto EF): Quick and efficient assessment of left ventricular function with automatic calculation of ejection fraction.
• Tissue Velocity Imaging (TVI) & Tissue Doppler Imaging: Advanced myocardial assessment techniques that evaluate the motion of heart tissue, helping to detect subtle myocardial dysfunction and early signs of heart failure.
• Strain Imaging & Strain Rate Imaging (optional): Allows for a detailed analysis of myocardial strain, detecting even minor changes in cardiac performance, ideal for early detection of myocardial injury or dysfunction.
• Transesophageal Echocardiography (TEE): High-resolution imaging of the heart's structure, especially useful for detailed evaluations of complex cardiac conditions, such as valve diseases and congenital heart defects.

2. Vascular Imaging (Peripheral & Cerebrovascular)

• Color Doppler, Power Doppler, and Spectral Doppler: Non-invasive assessment of blood flow through vessels to detect conditions such as stenosis, occlusion, and other vascular abnormalities.
• IMT (Intima-Media Thickness) Measurement: Provides critical early detection of atherosclerosis, assessing arterial wall thickness for cardiovascular disease risk evaluation.
• Peripheral Artery and Vein Evaluation: Enables comprehensive assessment of peripheral arteries and veins to diagnose conditions like deep vein thrombosis (DVT) or peripheral artery disease (PAD).
• Transcranial Doppler (TCD): Non-invasive imaging technique for evaluating blood flow within the brain, important for diagnosing cerebrovascular diseases such as stroke and transient ischemic attacks (TIAs).

3. Abdominal & General Imaging

• Liver, Kidney, Spleen, and Pancreas Imaging: High-resolution B-mode imaging for evaluating abdominal organs, enabling the detection of liver diseases, kidney stones, and pancreatic tumors.
• Gallbladder and Biliary System Assessment: Essential for detecting gallstones, bile duct obstructions, and assessing gallbladder health.
• Aorta and Renal Artery Evaluation: Provides diagnostic insights into conditions like aortic aneurysms and renal artery stenosis, which can lead to high blood pressure or kidney dysfunction.

4. OB/GYN & Fetal Imaging

• Fetal Biometry and Growth Monitoring: Accurate measurement and tracking of fetal growth to ensure proper development and identify potential complications during pregnancy.
• Transvaginal and Transabdominal Imaging: Provides clear imaging for early pregnancy assessments, allowing for better visualization of the uterus, ovaries, and fetal development.
• Amniotic Fluid Index (AFI) and Placental Health Monitoring: Monitors amniotic fluid levels and placental function to ensure a healthy pregnancy, identifying risks such as oligohydramnios or placental insufficiency.
• Multi-Gestational Pregnancy Evaluation: Tracks multiple pregnancies, ensuring that each fetus is developing properly and helps in managing any complications such as twin-to-twin transfusion syndrome.

5. Small Parts & Musculoskeletal Imaging (MSK)

• Thyroid, Breast, and Testicular Imaging: High-resolution imaging for the evaluation of thyroid nodules, breast masses, and testicular conditions like cysts and tumors.
• Musculoskeletal Ultrasound: Detailed imaging of soft tissue structures such as tendons, ligaments, and joints, enabling diagnosis of conditions like tears, inflammation, or arthritis.
• Soft Tissue Mass Characterization: Differentiates between benign and malignant lesions, helping clinicians plan the appropriate management and treatment strategies.

6. Urological & Prostate Imaging

• Bladder Volume Assessment: Provides accurate measurement of bladder volume, helping to diagnose conditions like urinary retention or overactive bladder.
• Transrectal Prostate Imaging (TRUS): Essential for prostate evaluation, including detecting prostate enlargement, lesions, or early signs of prostate cancer.
• Renal Doppler Studies: Non-invasive imaging to assess renal blood flow, essential for diagnosing kidney vascular diseases and hypertension related to kidney dysfunction.

7. Intraoperative & Specialized Imaging

• Real-Time Intraoperative Guidance: Supports surgical procedures by offering real-time imaging, improving accuracy during operations such as tumor resections or organ transplants.
• Biopsy Assistance: Enables precise needle guidance during biopsies, ensuring accurate targeting of the lesion for tissue sampling.
• Contrast-Enhanced Ultrasound (LVO Contrast, optional): Enhances vascular and cardiac imaging, providing clearer visualization of blood vessels and chambers, crucial for detecting conditions like thrombus or assessing cardiac function in more detail.

Frequently Asked Questions

Can the Mindray ME8 perform 3D/4D imaging for obstetric and gynecological exams?

Yes, the Mindray ME8 offers 3D/4D imaging options for OB/GYN exams, enabling detailed visualization of fetal development and better monitoring of pregnancy progress. This capability ensures more accurate measurements for fetal biometry and assessments.

What specialized applications can the Mindray ME8 be used for?

The ME8 is versatile and supports multiple specialties including cardiology, obstetrics, gynecology, musculoskeletal, urology, and small parts imaging. It can be used for imaging the liver, kidney, heart, blood vessels, thyroid, breasts, and more.

Can the Mindray ME8 be used for guided procedures like biopsies?

Yes, the Mindray ME8 provides real-time imaging that supports needle guidance for procedures such as biopsies and injections, improving precision and patient safety during interventions.

How user-friendly is the Mindray ME8 for clinicians?

The ME8 is designed with a user-friendly interface, featuring a large touchscreen, customizable settings, and easy navigation. These features help clinicians efficiently perform exams and improve workflow in busy clinical environments.

Can the Mindray ME8 help in early disease detection?

Yes, the Mindray ME8 is equipped with advanced imaging modes like IMT (Intima-Media Thickness) and Tissue Doppler Imaging, which aid in the early detection of cardiovascular diseases, liver disorders, kidney problems, and musculoskeletal conditions.

What kind of maintenance does the Mindray ME8 require?

The Mindray ME8 is designed for easy maintenance with robust software updates and system diagnostics. Routine cleaning and proper storage of the ultrasound probes are also recommended to ensure longevity and optimal performance.

How does the Mindray ME8 assist with musculoskeletal imaging?

The ME8’s high-resolution imaging and advanced Doppler technologies are excellent for evaluating musculoskeletal structures like tendons, ligaments, and joints. It helps detect conditions such as tears, inflammation, and arthritis, providing a comprehensive analysis for accurate diagnosis and treatment planning
