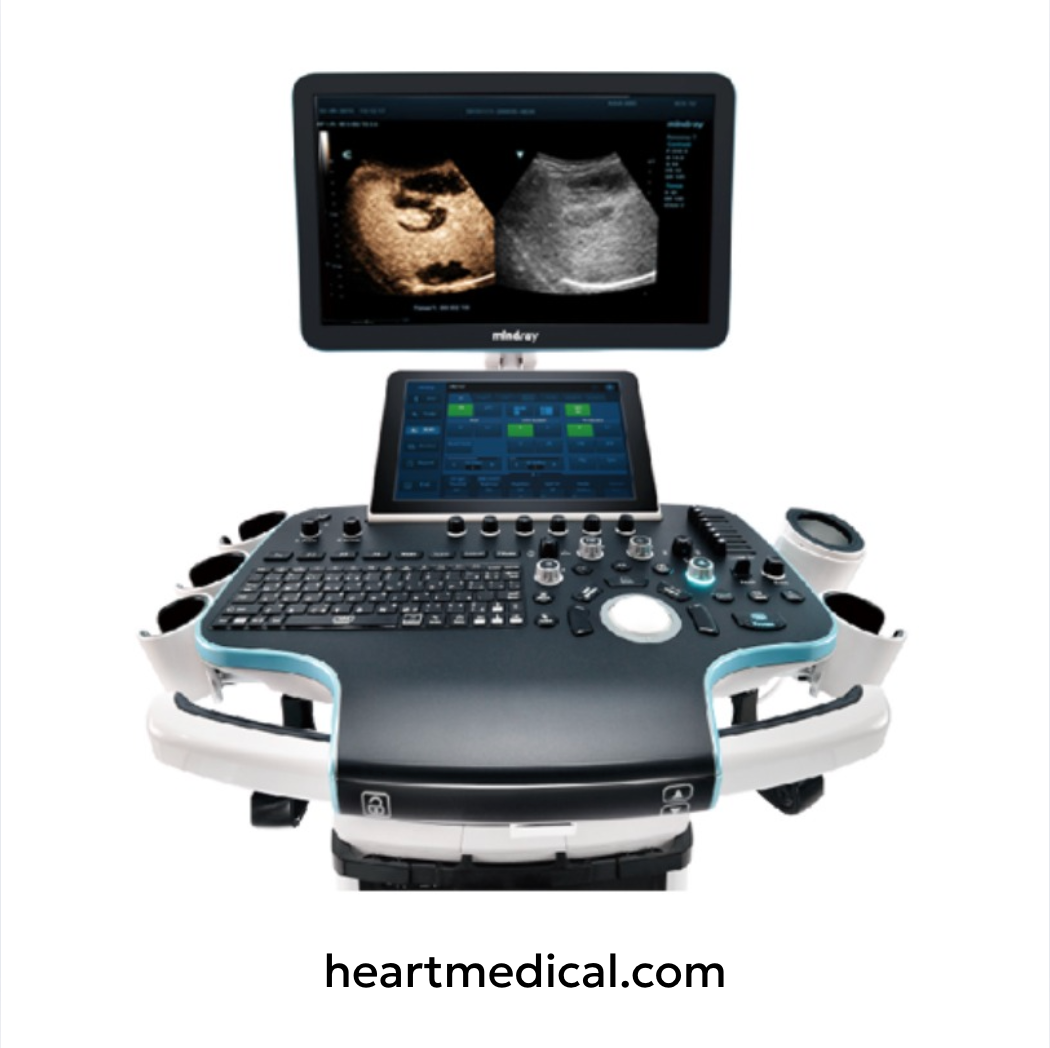

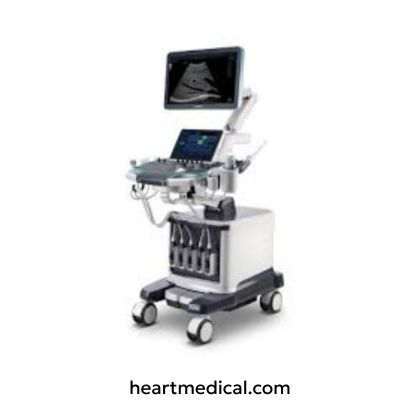

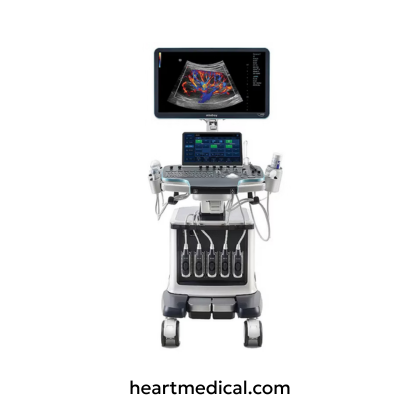

Mindray Resona 7 Ultrasound

Description

Premium ultrasound system with built-in ZST+ and advanced AI technologies

The Mindray Resona 7 is a cutting-edge diagnostic ultrasound system engineered to deliver superior image quality. At the heart of the system is Mindray’s revolutionary ZST+ (Zone Sonography Technology Plus) platform, which combines advanced acoustic acquisition with dynamic pixel focusing to provide high-resolution, uniform images across the entire field of view. It also ensures imaging precision and post-scan flexibility for enhanced diagnostic accuracy.

The Resona 7 offers an intuitive user interface by combining a 21.5-inch high-resolution LED monitor with a 12.1-inch tilting and multi-gesture touchscreen for seamless navigation. Its 6-way adjustable floating control panel promotes ergonomic comfort, while pinless transducer ports with light indicators make probe management fast and efficient.

Designed with automation, the Resona 7 includes advanced tools such as Smart Planes™ for automatic fetal CNS plane detection, V-Flow for vascular hemodynamics, Shear-Wave Elastography for quantitative tissue stiffness evaluation, and iLive for realistic 4D fetal imaging. These tools reduce examination time, increase consistency, and enhance diagnostic confidence.

With full DICOM compatibility and optional Wi-Fi, it integrates smoothly into hospital IT environments. It is featured with a lithium battery to support uninterrupted scanning during transport or power loss. Ideal for hospitals, diagnostic centers, and mobile imaging services, the Mindray Resona 7 combines intelligent automation, ergonomic design, and superior imaging in one comprehensive ultrasound solution.

Key Features

1. Imaging & Performance

• ZST+ Platform: Utilizes Zone Sonography® Technology for advanced acoustic acquisition and dynamic pixel focusing, resulting in enhanced image quality.

• Advanced Acoustic Acquisition: Enables precise image capture with improved spatial resolution and tissue uniformity.

• Dynamic Pixel Focusing (DPF): Provides continuous focusing for optimal image clarity across the entire field of view.

• Sound Speed Compensation (SSC): Adjusts for variations in tissue sound speed to improve image accuracy.

• Total Recall Imaging (TRI): Allows retrospective adjustments of imaging parameters without the need for reacquisition.

• Multiple Imaging Modes: Supports B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, and 3D/4D imaging.


2. User Interface & Ergonomics


• 21.5" High-Resolution LED Monitor: Offers clear and detailed image display for accurate diagnostics.

• 12.1" Tilting Multi-Gesture Touchscreen: Provides intuitive control with gesture recognition for streamlined operation.

• 6-Way Adjustable Floating Control Panel: Ensures ergonomic comfort with customizable positioning to suit user preferences.

• Gel Warmer with Temperature Control: Enhances patient comfort during examinations.

• Pinless Transducer Ports: Features five ports (four active, one inactive) with light indicators for easy transducer management.

• Central and Swivel Lock Mechanism: Provides stability and mobility with convenient locking features.


3. Advanced Automation & AI Tools


• Smart Planes: Automatically detects and displays standard planes of the fetal central nervous system (CNS) from 3D datasets, improving diagnostic efficiency.

• Vector Flow Imaging (V Flow): Offers detailed visualization of vascular hemodynamics for comprehensive vascular assessments.

• Shear-Wave Elastography: Provides quantitative tissue stiffness measurements, aiding in the evaluation of various pathologies.

• iLive: Enhances 4D imaging with realistic rendering of fetal structures for improved obstetric evaluations.

• Fusion Imaging: Combines real-time ultrasound with previously acquired CT/MRI images for enhanced diagnostic confidence.


4. Connectivity & Data Management


• iStorage: Facilitates direct network storage between the ultrasound system and personal computers for efficient data management.

• MedSight: Allows wireless transfer of clinical images and clips from the ultrasound system to smart devices for convenient sharing and consultation.

• MedTouch: Enables remote control of the ultrasound system via smart devices, providing access to patient information and system settings.

• DICOM Compatibility: Supports DICOM structured reporting and seamless integration with PACS and hospital information systems.


5. Design & Portability


• Compact and Mobile Design: Equipped with front and rear handles, caster wheels, and locking mechanisms for easy transportation and stability.

• Integrated Cooling System: Ensures optimal performance and longevity of the system components.

• Onboard Lithium Battery: Provides operational continuity during patient transport or in case of power interruptions.


Technical Specifications

1. System Architecture & Processing


• Platform: ZST+ (Zone Sonography® Technology Plus)

• Imaging Processing: Channel data-based processing with advanced acoustic acquisition and dynamic pixel focusing.


2. Dimensions & Weight


• Height: Adjustable between 1,180 mm to 1,571 mm

• Width: 545 mm (main unit); 510 mm (control panel)

• Depth: 945 mm to 1,145 mm

• Weight: Approximately 135 kg (excluding peripherals)


3. Power & Electrical Specifications


• Input Voltage: 100-240V AC, 50/60 Hz


• Power Consumption: Not specified

• Battery: Onboard lithium battery for uninterrupted operation


4. Display & Imaging Interface


• Main Monitor: 21.5" high-resolution LED with adjustable tilt and swivel

• Touchscreen: 12.1" high-sensitivity, anti-glare color touchscreen with 1920 x 1080 resolution


5. User Interface & Control


• Control Panel: 6-way adjustable floating design for ergonomic operation

• Touch Controls: Multi-gesture support for intuitive system navigation

• Transducer Ports: Five pinless ports (four active, one inactive) with light indicators


6. Connectivity & Storage


• Onboard Storage: Not specified

• External Storage: Supports USB devices and network storage

• Networking: Ethernet and optional Wi-Fi connectivity

• DICOM Support: Comprehensive DICOM compatibility for seamless integration


7. Input & Output Ports


• USB Ports: Available for data transfer and peripheral connectivity

• Video Output: Supports external display connections

Probe Compatibility

Convex Array Probes

• SC6-1U: Abdomen, CEUS, OB/GYN, Vascular

• SC8-2U: Abdomen, OB/GYN, Pediatrics, Vascular

• C4-1U: Abdomen, CEUS, Vascular

• C6-2GU: Abdomen, CEUS, OB/GYN

• C11-3U: Neonatal, Pediatrics, Vascular, Small Parts

Linear Array Probes

• L14-3WU: Abdomen, MSK, Pediatrics, Small Parts, Vascular

• L20-5U: MSK, Nerve, Small Parts, Vascular

• L9-3U: Abdomen, MSK, Nerve, OB, Pediatrics, Small Parts, Vascular

• L16-4HU: Intra-Operative, MSK, Nerve, Pediatrics, Small Parts, Vascular

• L11-3U: Vascular, Small Parts, MSK, Neonatal, Pediatric, Abdominal

Phased Array Probes

• SP5-1U: Abdomen, Cardiac, TCD, Vascular

• P10-4U: Pediatric Abdomen, Pediatric Cardiac, Neonatal

• P7-3U: Abdomen, Cardiac, Pediatrics

• P7-3TU: Cardiac (TEE)

Endocavity Probes

• V11-3HU: OB/GYN, Urology

• DE10-3WU: OB/GYN, Urology

• ELC13-4U: Urology

Volume Probes

• D8-2U: Adult Abdomen, OB/GYN, Volume CEUS

• DE10-3U: OB/GYN, Urology

Pencil Probes (CW Doppler)

• CW5s: Cardiac, Peripheral Vascular

• CW2s: Cardiac

Applications

1. Radiology & General Imaging


• Abdominal Imaging: Provides detailed visualization of abdominal organs, aiding in the assessment of liver, kidneys, pancreas, and spleen.

• Thyroid and Breast Imaging: Delivers high-resolution images for the evaluation of thyroid nodules and breast lesions.

• Musculoskeletal Imaging: Offers clear imaging of muscles, tendons, and joints to assist in diagnosing musculoskeletal conditions.


2. Vascular Imaging


• Carotid Artery Evaluation: Utilizes advanced Doppler techniques to assess blood flow and detect potential stenosis or plaques in the carotid arteries.

• Peripheral Vascular Assessment: Provides comprehensive evaluation of peripheral arteries and veins, aiding in the diagnosis of conditions like deep vein thrombosis (DVT).

• Vector Flow Imaging (V Flow™): Offers angle-independent visualization of complex hemodynamics in vessels, enhancing the understanding of blood flow patterns.


3. Women's Health & Obstetrics


• Fetal CNS Assessment: Features Smart Planes™, enabling automatic detection of standard planes and measurements for fetal central nervous system evaluation, improving diagnostic accuracy and efficiency.

• Follicle Monitoring: Employs Smart FLC for automatic detection and measurement of follicles, supporting assisted reproductive procedures.

• Gynecological Imaging: Provides detailed imaging of pelvic organs, assisting in the diagnosis of gynecological conditions.


4. Pediatric Imaging


• Neonatal Brain Imaging: Offers high-resolution imaging for the assessment of neonatal cranial structures, aiding in the early detection of abnormalities.

• Pediatric Abdominal Imaging: Delivers clear visualization of pediatric abdominal organs, facilitating accurate diagnoses in younger patients.


5. Shared Service Applications


• Cardiac Imaging: Supports adult and pediatric echocardiography with advanced imaging modes for comprehensive cardiac assessments.

• Urological Imaging: Provides detailed visualization of the bladder, kidneys, and prostate, aiding in the evaluation of urological conditions.

• Intraoperative Imaging: Assists surgeons with real-time imaging guidance during various surgical procedures, enhancing precision and patient safety.


Frequently Asked Questions

What types of imaging applications are supported by the Mindray Resona 7?

The Mindray Resona 7 Ultrasound System supports a wide range of imaging applications including radiology, vascular, women's health, pediatric imaging, and shared services. It is designed for comprehensive evaluations across abdominal, musculoskeletal, cardiac, and gynecological imaging.

How does the Resona 7 assist in pediatric imaging?

The Resona 7 offers high-resolution imaging capabilities, specifically designed for pediatric patients. It supports neonatal brain imaging, pediatric abdominal imaging, and other specialized pediatric evaluations to ensure accurate results and early diagnosis.

Can the Mindray Resona 7 be used for both adult and pediatric cardiac imaging?

Yes, the Resona 7 Ultrasound System is fully capable of performing both adult and pediatric cardiac imaging. It includes advanced features like Doppler imaging, strain imaging, and transesophageal echocardiography (TEE) for detailed cardiac assessments in all patient types.

Is the Resona 7 Ultrasound System suitable for gynecological and obstetric imaging?

The Resona 7 provides detailed imaging capabilities for gynecological and obstetric applications, including fetal growth monitoring, transvaginal and transabdominal imaging, as well as advanced features like Smart Planes™ for fetal CNS evaluation and follicle monitoring.

What is the role of Smart FLC in the Resona 7 system?

Smart FLC (Follicular Count) is an AI-enhanced feature that automatically detects and measures ovarian follicles, facilitating accurate monitoring in fertility treatments and enhancing workflow efficiency during gynecological assessments.

Can the Resona 7 system be used in intraoperative settings?

Yes, the Resona 7 is equipped with real-time imaging capabilities, making it an excellent choice for intraoperative guidance. It provides surgeons with the ability to visualize structures during procedures, improving precision and patient outcomes.
