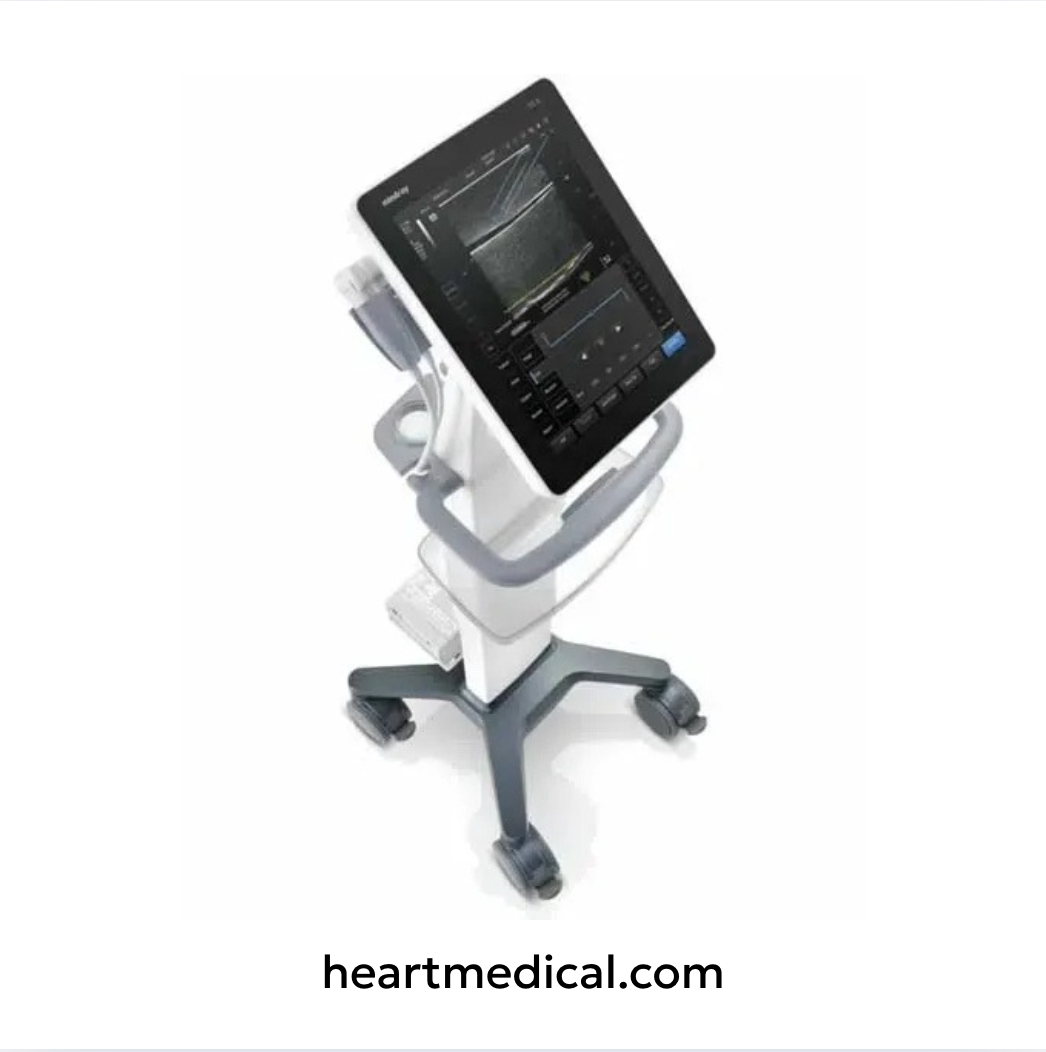

Mindray TE5 Ultrasound

Description

Advanced point-of-care imaging with AI-enhanced precision

The Mindray TE5 is a compact, high-performance ultrasound system designed for point-of-care (POC), emergency, and interventional imaging. Its advanced features like AI voice control, precision needle guidance, and a gesture-based touchscreen interface boosts its efficiency and accuracy in fast-paced clinical environments. Its versatility makes it suitable for multiple purposes like MSK, vascular, abdominal, OB/GYN, anesthesia, urology, and pediatrics.

Powered by AI tools, the TE5 delivers exceptional image quality with deep penetration and high frame rates of up to 1000 FPS. The system incorporates advanced needle visualization technologies to enhance precision across in-plane and out-of-plane procedures. The TE5’s 15-inch high-resolution LED monitor and multi-gesture touchscreen interface allow intuitive operation, while the compact, cable-free design with elevated probe mounting ensures seamless usability in tight clinical spaces.

The infection control-friendly design, including seamless surfaces and auto-lock screen, supports safe and hygienic operation in sterile and high-traffic environments. Its iVocal™ AI voice control enables this system to operate hands-free by just voice commands to ensure sterility of the process. Moreover, some additional automation tools like customizable presets, dual image comparison, and gesture shortcuts streamline scanning and documentation.

Designed for point-of-care use, mobile services, and outpatient settings, the TE5 combines advanced technology, portability, and reliability. Its built-in battery, solid-state drive, and wireless connectivity enable smooth performance in both stationary and mobile setups. Integrate M-Secure Suite based ultrasound system for reliable and secure diagnostic imaging.

Key Features

1. Imaging & Performance

• eSpacial Navi™ – Advanced 4D magnetic needle navigation technology for precise needle tip and trajectory visualization in both in-plane and out-of-plane procedures.
•  iNeedle+™ – Second-generation needle enhancement tool that auto-detects needle angles and improves needle visibility across linear and convex probes.
•  Dual Comparison – Side-by-side display of real-time and stored images, ideal for MSK and comparative imaging applications.
•  2D Imaging Mode – High-quality grayscale imaging with deep penetration up to 40 cm and frame rates up to 1000 FPS.
•  Maximum Depth – Scanning depth up to 40 cm supports a broad range of clinical applications.

• Cine Memory – Stores up to 32,346 frames for retrospective analysis and comprehensive review.

2. User Interface & Ergonomics

• 15” High-Resolution LED Monitor – 1024×768 display resolution for crisp, detailed image visualization.
•  Touchscreen Interface – Seamless, responsive control interface with multi-gesture support for workflow optimization.
• Gesture-Based Workflow – Swipe, tap, and pinch gestures enable rapid image adjustments and mode selections.
• Elevated Transducer Mounting – Designed for easy access and probe management during scanning.
• Infection Control Design – Seamless surface and auto-lock screen features ensure easy cleaning and disinfection.
•  Storage Basket & Disinfectant Holder – Integrated accessories enhance operational efficiency in clinical environments.

3. Advanced Automation & AI Tools

• iVocal™ Voice Control – AI-powered voice recognition system for hands-free operation. Supports user-defined commands including Add, Delete, and Rename for a personalized scanning experience.
• Customizable User Settings – Supports gesture and voice-driven workflow adjustments for maximum productivity.
• M-Secure Feature Suite – Includes data encryption, DICOM encryption, secure data wipe, anti-virus tools, OS hardening, and access control for enhanced patient data security.

4. Connectivity & Data Management

• SSD Storage – High-speed solid-state drive ensures quick data retrieval and system performance.
• DICOM Options – Supports DICOM Query/Retrieve and Worklist for seamless integration with PACS.
• Export Formats – Compatible with AVI, BMP, JPG, and TIFF for flexible image and video output.
• Wireless & Ethernet Connectivity – Built-in network options for efficient data transfer and remote review.
•  USB Ports – Three USB ports for peripheral connectivity and external storage solutions.
• Video Output – HDMI and Ethernet ports for external monitor display and data sharing.

5. Portability & Power

• Built-In Battery – Ensures system operation during mobile or emergency scenarios.
• Lightweight Design – Compact with a small footprint, ideal for use in POC, ER, and intraoperative environments.
• Mounting Options – Available with table stand and wall mount for flexible installation across clinical settings.

Technical Specifications

1. System Architecture & Processing

• Operating System – Embedded ultrasound operating platform with AI integration
• Imaging Modes – 2D Imaging supported with advanced needle guidance technologies
•  Max Frame Rate – Up to 1000 FPS for ultra-fast imaging performance
  Cine Memory – Stores up to 32,346 frames

2. Dimensions & Weight

• Weight – Approx. 50 kg
• Dimensions – 15" × 535 mm × 620 mm

3. Power & Electrical Specifications

• Battery – Integrated rechargeable battery for mobile scanning
•  Power Supply – 100-240V, 50/60 Hz compatible

4. Display & Imaging Interface

• Monitor – 15” High-Resolution LED with 1024×768 resolution
• Touchscreen – Yes, with multi-gesture support
• Needle Visualization Tools – iNeedle+, eSpacial Navi™

5. User Interface & Control

• Trackball/Trackpad – Touchscreen-enabled navigation
• User-Defined Commands – Via iVocal™ AI-based voice control
• Workflow Enhancers – Dual Comparison, Gesture Control, Custom Presets

6. Connectivity & Storage

• Storage – SSD-based internal storage
• USB Ports – 3 USB ports
• Video Output – HDMI, Ethernet
• Wireless Connectivity – Yes
• DICOM – Query/Retrieve, Worklist supported

7. Compliance & Safety

• Data Security – M-Secure Suite with OS hardening, encryption, and access controls
• Build – Seamless and durable design with infection control considerations
• Voice Operation – AI-powered iVocal for hygienic, hands-free use

Probe Compatibility

1. Linear Array Probes (Vascular, Small Parts, and Musculoskeletal Imaging)

L12-3RCs: Features programmable buttons for streamlined workflow, ideal for vascular assessments and small parts examinations.

L11-3VNs: Compatible with eSpacial Navi™ technology, enhancing needle visualization during interventional procedures.

L20-5s: Offers ultra-high frequency imaging up to 20 MHz, providing exceptional resolution for superficial structures.

2. Convex Array Probes (Abdominal and OB/GYN Imaging)

C5-2s: Designed for comprehensive abdominal and obstetric examinations, delivering clear imaging for deep structures.

3. Phased Array Probes (Cardiac and Transcranial Imaging)

P4-2s: Suitable for adult cardiac assessments and transcranial examinations, offering deep penetration and high frame rates.

4. Endocavitary Probes (Transvaginal and Transrectal Imaging)

V11-3Ws: Optimized for transvaginal and transrectal procedures, providing detailed visualization of pelvic organs.

5. Probe Accessories

A variety of biopsy guides are available, ensuring precision and ease during guided interventions.

Applications

1. Abdominal & General Imagin


• High-resolution imaging of liver, kidney, spleen, and pancreas with excellent B-mode and Doppler sensitivity.
• Gallbladder and biliary system evaluation for stones, sludge, and ductal obstruction.
•  Renal artery and abdominal aorta assessment for aneurysms, stenosis, and flow abnormalities.
• Real-time imaging enhances accuracy in point-of-care abdominal assessments.


2. Emergency & Point-of-Care Medicine


• Rapid boot-up and intuitive touch interface for critical decision-making in emergency settings.
• Focused Assessment with Sonography in Trauma (FAST) for internal bleeding evaluation.
• Lung, cardiac, and abdominal scanning for bedside diagnostics.
   Vascular access guidance and procedural support with needle visualization.


3. Musculoskeletal (MSK) Imaging

• High-frequency linear probes for precise imaging of tendons, muscles, ligaments, and joints.
• Dynamic MSK evaluations for sports injuries, inflammation, and soft tissue abnormalities.
• Guided injections and aspiration procedures with needle enhancement technologies.
• Differentiation of cystic vs solid soft tissue masses.


4. OB/GYN & Fetal Imaging


• Transabdominal and transvaginal imaging for early pregnancy and gynecological evaluations.
•  Fetal biometry, anatomy scans, and growth monitoring with advanced measurement packages.
•  Amniotic fluid assessment, placental evaluation, and cervical length measurements.
•  Support for multi-gestational pregnancies and fetal well-being tracking.


5. Vascular Imaging (Peripheral & Cerebrovascular)

• Color, Power, and Pulsed Wave Doppler imaging for arterial and venous flow analysis.
• Carotid artery and jugular vein assessment for atherosclerosis and stenosis.
• Deep vein thrombosis (DVT) detection in lower and upper extremities.
• Venous insufficiency and valve competency evaluations.


6. Small Parts Imaging

• Detailed visualization of thyroid, breast, scrotum, and superficial lymph nodes.
• Nodule characterization, cyst detection, and vascularity analysis with Doppler.
•  Elastography support (optional) for assessing tissue stiffness and lesion differentiation.
•  Excellent spatial resolution for surface-level anatomy.


7. Pediatrics & Neonatal Imaging

• Dedicated pediatric presets and transducers for age-appropriate scanning.
• Cranial, abdominal, and musculoskeletal assessments in neonates and infants.
• Low thermal index and high frame rate imaging for safe and efficient pediatric exams.
• Support for NICU bedside monitoring and rapid diagnostics.


8. Urological & Prostate Imaging

• Bladder volume measurement and post-void residual analysis.
• Transrectal prostate scanning for lesion detection, size estimation, and biopsy planning.
• Kidney, ureter, and bladder imaging for obstruction, stones, or infections.
• Real-time guidance for prostate interventions and urology procedures.


9. Intraoperative & Interventional Imaging

• Compact, cable-free design with a touch interface ideal for OR and sterile environments.
• Needle visualization software for accurate biopsies and drainages.
• Supports intraoperative soft tissue assessments and foreign body localization.
• Contrast-enhanced ultrasound (optional) for enhanced vascular and lesion evaluation.

Frequently Asked Questions

1. What clinical specialties is the Mindray TE5 designed for?

The TE5 is a versatile ultrasound system optimized for multiple specialties including Abdominal, Emergency Medicine, General Imaging, MSK, OB/GYN, Pediatrics, Small Parts, Urology, and Vascular imaging.

2. Does the TE5 support needle visualization for interventional procedures?

Yes, the TE5 includes advanced Needle Visualization technology to enhance the echogenicity of needles during procedures such as biopsies, injections, and drainages—ideal for MSK, anesthesiology, and critical care settings.

3. Can the TE5 be used for point-of-care or emergency medicine applications?

With its rapid boot-up, intuitive touch interface, and compact design, the TE5 is tailored for point-of-care use, enabling fast, accurate decisions in emergency and critical care environments.

4. What type of transducers are compatible with the TE5?

The TE5 supports a wide range of transducers including linear, convex, phased array, endocavitary, and intraoperative probes. Each is designed to meet the needs of various clinical applications from vascular and small parts to abdominal and cardiac imaging.

5. Does the TE5 offer any OB/GYN-specific features?

Yes, the TE5 provides comprehensive OB/GYN capabilities including fetal biometry, growth monitoring, AFI measurements, and transvaginal imaging for early pregnancy and fertility assessments.

6. Is the Mindray TE5 suitable for pediatric and neonatal imaging?

Yes, it features pediatric-focused presets, high-frequency probes, and low thermal index imaging to ensure safe and accurate scans for neonates, infants, and children across various anatomical areas.

7. Does the TE5 support Doppler and contrast-enhanced imaging?

The system is equipped with Color, Power, and Spectral Doppler imaging for detailed vascular and cardiac evaluations. Additionally, contrast-enhanced ultrasound (CEUS) capabilities are available as an optional upgrade.
