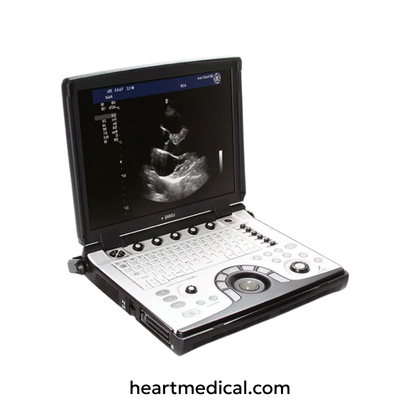

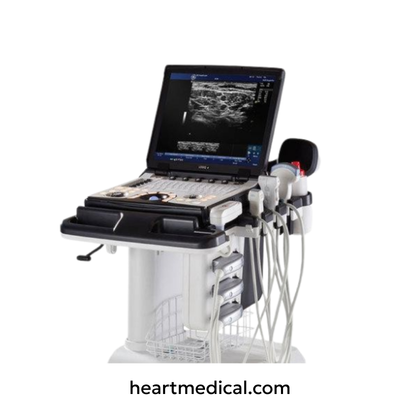

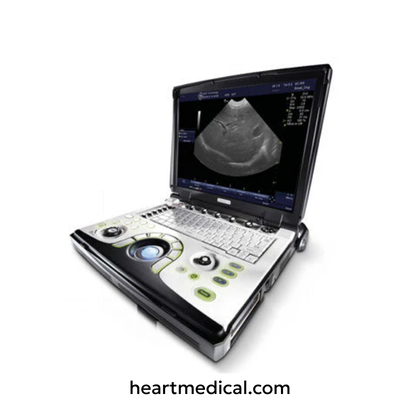

GE NextGen LOGIQ e Ultrasound Machine - GE-NG-LOGIQE-US

Description

Enhanced Portability and Imaging for Point-of-Care Diagnostics

The NextGen LOGIQ e is a portable ultrasound system that builds upon the foundation of its predecessor, offering enhanced imaging performance and streamlined functionality. It incorporates advanced software and hardware improvements, making it ideal for musculoskeletal, anesthesiology, and point-of-care imaging. Its compact and lightweight design ensures flexibility and efficiency in various clinical environments.

Key Features

• Advanced Software Enhancements: Includes updated imaging algorithms for faster processing and superior diagnostic accuracy.
• Needle Recognition Technology: Improves needle visualization for precise interventional procedures, even at steep angles.
• CrossXBeam Imaging: Enhances tissue and border differentiation by combining multiple angles into a single, clear image.
• Speckle Reduction Imaging (SRI): Reduces noise while preserving critical anatomical details, enhancing clarity.
• Auto Optimization: One-touch adjustment of image settings for consistent, high-quality imaging across different patients and applications.
• Broader Probe Compatibility: Supports new compact RS probes for expanded diagnostic versatility.

Technical Specifications

• Dimensions: Height: 61 mm; Width: 340 mm; Depth: 287 mm.
• Weight: Approximately 4.6 kg (10.1 lbs), designed for portability.
• Display: 15-inch high-resolution LCD monitor with tilt and swivel capabilities.
• Imaging Modes: 2D, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler.
• Transducer Ports: Three active probe ports, allowing quick transitions during examinations.

Probe Compatibility

1. Phased Array Probes (Cardiac & General Imaging)

• 3Sc-RS (1.3–4.0 MHz): Phased array probe suitable for adult cardiac, pediatric, abdominal, fetal, and adult cephalic imaging.
• 6S-RS (2.5–7.0 MHz): Phased array probe designed for pediatric cardiac, vascular, pediatric, transcranial, and interventional guidance imaging.

2. Convex Array Probes (Abdominal & OB/GYN Imaging)

• C1-5-RS (1.5–5.0 MHz): Convex array probe suitable for abdominal, OB/GYN, vascular, urology, thoracic, pediatric, musculoskeletal, and interventional guidance imaging.
• 4C-RS (2.0–5.0 MHz): Convex array probe designed for abdominal, OB/GYN, and urological imaging.

3. Micro-Convex Probes (Pediatric, Neonatal, Urological Imaging)

• 8C-RS (4.0–11.0 MHz): Micro-convex probe designed for pediatric abdominal and neonatal head imaging.
• E8C-RS (4.0–11.0 MHz): Endocavitary probe used for obstetrics, gynecology, urology, transvaginal, transrectal, and interventional guidance imaging.

4. Linear Array Probes (Vascular, Small Parts, MSK Imaging)

• 9L-RS (3.33–10.0 MHz): Linear array probe for vascular, small parts, and musculoskeletal imaging.
• 12L-RS (4.0–13.0 MHz): Linear array probe optimized for vascular, small parts, musculoskeletal, and thyroid imaging.
• L4-12t-RS (4.2–13.0 MHz): Linear array probe designed for vascular, small parts, and musculoskeletal imaging.
• L8-18i-RS (6.7–18.0 MHz): High-frequency linear array probe for small organs, intraoperative, musculoskeletal, and vascular imaging.
• L10-22-RS (10.0–22.0 MHz): High-frequency linear array probe for small parts, musculoskeletal, and vascular imaging.

5. Transesophageal (TEE) Probes (Cardiac & Contrast Imaging)

• 6Tc-RS (2.9–8.0 MHz): TEE probe designed for adult cardiac imaging, supporting detailed transesophageal echocardiography.

6. Pencil (CW Doppler) Probes (Cardiac Doppler)

• P2D (2.0 MHz): Continuous wave Doppler probe dedicated to cardiac applications.

7. Probe Accessories & Biopsy Guides

• Multi-angle disposable biopsy guides: Available for convex and linear probes to assist in guided procedures.
• Fixed-angle disposable or reusable biopsy guides: Compatible with endocavitary probes for precise targeting.

If you require further details on specific probes or additional information, feel free to ask.

Applications

• Musculoskeletal: Imaging of tendons, ligaments, and joints for diagnostic and interventional procedures.
• Anesthesiology: Precise guidance for nerve blocks and vascular access.
• Emergency Medicine: Rapid bedside assessments in trauma and acute care settings.
• Vascular Imaging: Evaluation of blood vessels and hemodynamics.
• General Imaging: Abdominal, small parts, and superficial structures.

Frequently Asked Questions

What are the main improvements in the NextGen LOGIQ e compared to the original LOGIQ e?

The NextGen LOGIQ e offers enhanced imaging algorithms, broader probe compatibility, and improved software performance, making it faster and more precise.

Is the NextGen LOGIQ e suitable for needle-guided procedures?

Yes, it includes Needle Recognition Technology, which enhances needle visualization for accurate and safe interventional procedures.

Can the NextGen LOGIQ e handle multiple applications?

Absolutely, its versatility supports a wide range of applications, including musculoskeletal, vascular, and emergency imaging.

What makes the NextGen LOGIQ e portable?

Weighing just 4.6 kg and featuring a compact design, it’s easy to transport and use in point-of-care settings.

How does the system ensure consistent image quality?

The Auto Optimization feature adjusts imaging parameters with a single touch, ensuring high-quality images across diverse applications.
