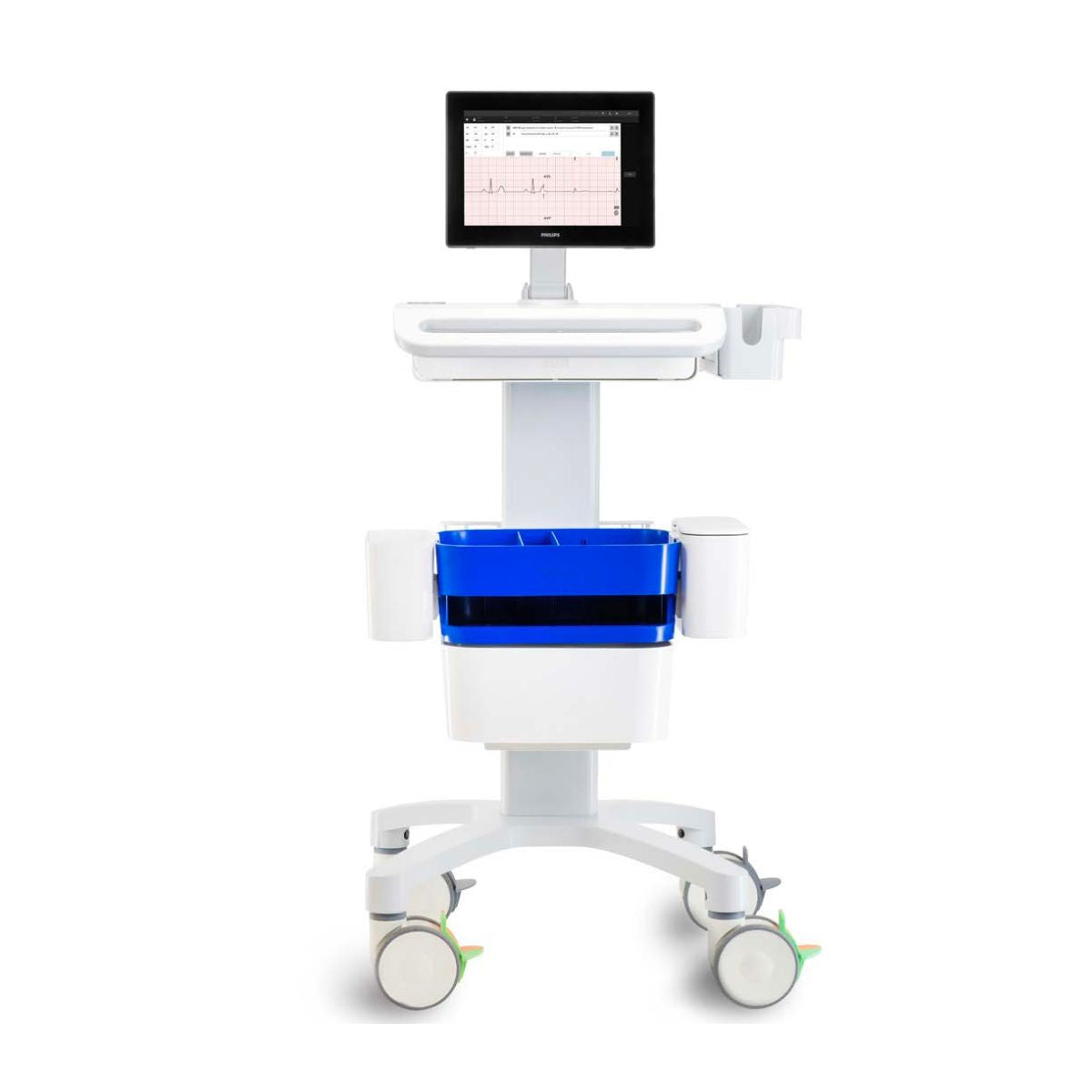

Philips Cardiac Workstation 5000 - 860439

Description

Elevating Cardiac Diagnostics with Advanced Technology

The Philips Cardiac Workstation 5000 is a cutting-edge solution designed to redefine diagnostic cardiology by improving the way ECGs are captured, analyzed, and managed. This workstation combines advanced functionality with an intuitive user experience, making it an ideal choice for both high-demand clinical environments and smaller care settings. Supporting up to 18 leads simultaneously, it delivers comprehensive cardiac insights with exceptional accuracy, empowering healthcare professionals to diagnose and treat patients with confidence.

Equipped with the patented DXL Algorithm, the Cardiac Workstation 5000 provides over 600 interpretive statements, advanced STEMI diagnostic aids, and pediatric analysis, ensuring superior diagnostic reliability. Its ergonomic design features a high-resolution multi-touch display, enabling seamless navigation through ECG data with smartphone-like gestures. The system streamlines workflows with a simplified 1-2-3 operation, reducing errors and accelerating care delivery. Integrated with enterprise-grade interoperability, including support for DICOM and HL7 standards, this workstation ensures efficient data management and secure sharing of ECG reports across hospital networks. With its robust design, extended battery life, and advanced security protocols, the Philips Cardiac Workstation 5000 is engineered to support clinicians in delivering exceptional cardiac care.

Key Features

• Advanced Diagnostic Capabilities: Supports simultaneous acquisition of up to 18 leads with comprehensive STEMI diagnostic aids, pediatric analysis, and QT interval assessments.
• Patented DXL Algorithm: Offers over 600 interpretive statements, detailed morphology and rhythm analysis, and customizable borderline suppression settings.
• Streamlined Workflow: Simple 1-2-3 step ECG process with features like lead quality indicators, preview screens, and automatic event markers to reduce errors and save time.
• High-Resolution Touchscreen Display: Compact 12.1-inch multi-touch capacitive screen with ultra-wide viewing angles and wet finger/glove compatibility for seamless navigation.
• Ergonomic Design: Lightweight and portable with adjustable display tilt and compact dimensions for efficient use in any clinical environment.
• Comprehensive Data Management: Stores up to 1,000 ECGs locally, with additional external storage via USB. Supports PDF, XML, and DICOM formats for easy sharing and interoperability.
• Enhanced Security: Features robust encryption (SHA-256, AES-128), TLS 1.2 network communications, and role-based authentication to ensure data privacy and security.
• Extended Battery Life: Powered by a lithium-ion battery with up to 12 hours of continuous operation, handling up to 90 ECG reports on a single charge.
• User-Friendly Navigation: Smartphone-like gestures such as swipe, zoom, and pinch for easy data access and analysis. Includes lead placement tutorials for seamless operation.
• Interoperability: Integrates with IntelliSpace ECG, HL7 systems, and DICOM Modality Worklist, ensuring compatibility across enterprise networks and hospital systems.
• Advanced Pacemaker Detection: Offers pace pulse detection with five times the accuracy of standard requirements for reliable readings.
• Training and Support: Integrated training mode with waveform simulation and lead placement tutorials for enhanced user confidence.
• Event Marking and Annotation: Supports marking and reviewing up to 10 events for detailed ECG analysis and documentation.


Brochures

Cardiac_Workstation_Brochure

DCS_CW5000

Technical Specifications

Display

• Size: 12.1-inch high-resolution, multi-touch capacitive screen.
• Resolution: 1920 x 1080 pixels (Full HD).
• Colors: 16.7 million colors.
• Touchscreen: Projected capacitive touch panel (PCAP) with optically bonded technology for durability and usability.

ECG Functions

• Lead Acquisition: Up to 18 leads with standard 12-lead plus additional leads (V3R, V4R, V5R, V7, V8, V9).
• Reports: 3×4, ST maps, Cabrera formats, 6×2, 12×1, and rhythm strips (30-60 seconds).
• Event Marking: Supports up to 10 independent events for later analysis with annotations.
• Pace Pulse Detection: 0.02 mVms accuracy, exceeding industry standards.

Data Storage and Export

• Internal Storage: Up to 1,000 ECGs.
• External Storage: USB-compatible for an additional 1,000 ECGs.
• Export Formats: PDF, XML, DICOM 12-Lead ECG, and DICOM General ECG.

Battery

• Type: Lithium-ion rechargeable.
• Runtime: Over 12 hours of continuous operation or up to 90 ECG reports.
• Recharge Time: 4 hours from 8% to 90% capacity.

Connectivity

• Wired: Ethernet LAN (10/100 Base-TX).
• Wireless: WiFi 5 (802.11 b/a/g/n/ac) with WPA3 encryption.
• USB Ports: Supports USB 3.0 devices.

Ergonomics

• Adjustability: Tilt range from -8° to 90°.
• Dimensions:
  • Open: <410 mm (L) x 335 mm (W) x 455 mm (H).
  • Closed: <410 mm (L) x 390 mm (W) x 175 mm (H).
• Weight: <8 kg (excluding accessories).

Environmental Conditions

• Operating Range: 10°C to 40°C; 10% to 90% relative humidity.
• Storage Range: -20°C to 50°C; 10% to 90% relative humidity.

Training and Tutorials

• Training Mode: Integrated waveform simulation and in-app tutorials for lead placement.

Security

• Encryption: SHA-256, AES-128.
• Authentication: Role-based and AD/LDAP support.
• Network Communication: TLS 1.2 for secure data transfer.

Fleet Management

• Centralized Dashboard: Manage software updates, configurations, and fleet health across devices using the Device Management Dashboard.

Applications

• Routine ECG Diagnostics: High-resolution analysis for precise cardiac evaluation.
• Pharma Stress Testing: Timed ECG functionality tailored for stress protocols.
• Pediatric Cardiology: Integrated pediatric-specific analysis for younger patients.
• Advanced Diagnostics: Supports detection of complex cardiac abnormalities.
• Clinical Research: Ideal for detailed studies requiring advanced ECG analytics.

Frequently Asked Questions

What are the key differences between the Cardiac Workstation 5000 and other ECG systems?

The Cardiac Workstation 5000 offers advanced features like 18-lead acquisition, the Philips DXL algorithm with pediatric analysis, and pharma stress protocol support, making it ideal for comprehensive cardiac diagnostics.

Can this system handle pediatric patients?

Yes, the integrated pediatric analysis ensures accurate diagnostics for younger patients.

Is the Cardiac Workstation 5000 compatible with healthcare IT systems?

Absolutely, it integrates seamlessly with DICOM-compatible PACS and EMR systems for efficient data storage and sharing.

Does the system support pharma stress testing?

Yes, it includes timed ECG functionality specifically designed for pharma stress protocols.
