Philips CX50 CompactXtreme Ultrasound Machine

Description

High-Performance Imaging in a Portable Design

The Philips CX50 CompactXtreme redefines portable ultrasound imaging, delivering premium performance in a compact, travel-ready system. Designed for cardiology, vascular, emergency, and point-of-care applications, the CX50 brings advanced imaging technology to any clinical environment without compromising quality.

With PureWave crystal technology, broadband digital beamforming, and real-time imaging enhancements, the CX50 provides exceptional clarity, deep tissue penetration, and precise Doppler sensitivity, ensuring reliable diagnostics even in challenging cases. Whether performing bedside exams, emergency assessments, or complex echocardiographic studies, this system offers the flexibility of a laptop-sized device with the power of a full-featured cart-based system.

Built for seamless workflow integration, the CX50 supports wireless DICOM connectivity, automated imaging protocols, and advanced quantification tools, streamlining both routine and specialized exams. Its durable yet lightweight design allows for effortless mobility across departments, surgical suites, and remote care settings, making it an ideal choice for healthcare professionals who need high-quality imaging without limitations.

Key Features

• PureWave Crystal Technology – Advanced single-crystal transducers provide twice the efficiency of conventional probes, ensuring superior image clarity, deeper penetration, and reduced noise, even for technically difficult patients.
• Digital Broadband Beamforming – Combines broadband capabilities with Philips premium transducers, capturing and preserving full tissue signatures for high-resolution imaging and improved Doppler performance.
• SonoCT & Adaptive XRES – SonoCT acquires multiple imaging angles and fuses them in real-time, while XRES reduces speckle, haze, and noise, delivering sharp, artifact-free images with enhanced edge definition.
• Comprehensive Transducer Compatibility – Supports a wide range of sector, linear, and curved array transducers, including cardiac, vascular, musculoskeletal, OB/GYN, and surgical applications.
• Live 3D/4D Imaging & xPlane Technology – Enables real-time 3D echocardiography and multiplanar imaging, essential for detailed cardiac assessments, stress echo, and interventional guidance.
• SmartExam Protocols – Reduces exam time by up to 50% with automated step-by-step guidance, real-time annotation, and pre-set measurements, ensuring faster, standardized studies.
• Advanced Doppler Capabilities – Features Pulsed Wave, Continuous Wave, Color Doppler, and Power Angio modes, delivering precise blood flow assessments for vascular and cardiac studies.
• QLAB Quantification Software – Provides specialized tools for strain imaging, MicroVascular Imaging (MVI), IMT analysis, and cardiac motion quantification, improving diagnostic confidence.
• Extreme Portability & Flexible Mounting Options – Weighing only 7.3 kg (16.2 lbs), the CX50 can be hand-carried, mounted on a cart, or transported in a travel case, making it ideal for bedside, OR, ICU, and field use.
• Seamless Connectivity & Data Security – Integrates with DICOM, HL7, and PACS systems via wireless or wired networks, featuring firewall protection, data encryption, and secure access controls.
• Fast System Boot & Battery Backup – Powers up within two minutes and offers 40-60 minutes of battery life, ensuring continuous imaging in emergency and mobile settings.

Technical Specifications

1. System Architecture & Processing

• Operating System: Windows-based platform.
• Beamforming Technology: Digital broadband beamforming for enhanced signal processing.
• Dynamic Range: Up to 170 dB for improved image clarity.
• Processing Channels: Captures and processes full broadband tissue signatures for exceptional image detail.

2. Dimensions & Weight

• Width: 413 mm (16.25 in)
• Depth: 356 mm (14 in)
• Height: 86 mm (3.4 in)
• Weight: 7.3 kg (16.2 lbs) (lightweight and portable)

3. Power & Electrical Specifications

• Input Voltage: 100-240V AC (supports global power standards).
• Frequency: 50/60 Hz
• Maximum Power Consumption: 200W (energy-efficient design).
• Heat Dissipation: 700-1100 BTU/hour when fully loaded.
• Battery Backup: 40-60 minutes of power, allowing short-term mobile scanning.
• Operating Temperature Range: 10°C to 40°C (50°F to 104°F)
• Humidity: 15% to 95% (non-condensing)

4. Display & Imaging Interface

• Monitor: 15.4-inch high-resolution LCD with adjustable tilt.
• User Interface: QWERTY keyboard, dedicated imaging control panel with intuitive layout.
• iSCAN Optimization: One-button optimization for 2D and Doppler imaging.
• SmartExam Protocols: Automated step-by-step guidance to reduce exam time by up to 50%.

5. Connectivity & Storage

• DICOM 3.0 Support: Includes DICOM Print, Store, Modality Worklist (MWL), and Structured Reporting (SR).
• Onboard Storage: 80 GB internal hard drive for image archiving.
• External Storage Options: Supports USB flash drives and DVD RW media for data export.
• Networking: Wired Ethernet port for seamless PACS connectivity.
• Wireless Connectivity: Optional Wi-Fi for flexible data transfer.

6. Input & Output Ports

• USB Ports: Multiple USB ports for external storage and peripheral device connectivity.
• Ethernet Port: Supports secure wired networking.
• Video Output: External display connection via video-out port.

7. Transducer Compatibility

• Supports up to three active transducers simultaneously.
• Compatible Philips transducers include:
  • Curved Array: C5-1, C10-3v, C8-5, C9-3io
  • Linear Array: L12-5/50, L10-4lap, L12-3, L15-7io
  • Sector Array: S5-1, S8-3, S12-4
  • TEE Probe: X7-2t for Live 3D Transesophageal Echocardiography (TEE)
• Doppler Probes: Dedicated continuous wave Doppler probes for precise vascular and cardiac imaging.

8. Safety & Compliance

• Electrical Safety Standards: Complies with IEC 60601-1 for medical electrical equipment.
• Electromagnetic Compatibility: Meets IEC 60601-1-2 standards.
• Ultrasound Performance Standards: IEC 60601-2-37 for diagnostic ultrasound safety and efficacy.
• Data Security & HIPAA Compliance: Includes firewall protection, data encryption, and secure access control settings.

Probe Compatibility

• Supports up to three active transducers simultaneously.
• Compatible Philips transducers include:
  • Curved Array: C5-1, C10-3v, C8-5, C9-3io
  • Linear Array: L12-5/50, L10-4lap, L12-3, L15-7io
  • Sector Array: S5-1, S8-3, S12-4
  • TEE Probe: X7-2t for Live 3D Transesophageal Echocardiography (TEE)
• Doppler Probes: Dedicated continuous wave Doppler probes for precise vascular and cardiac imaging.

Applications

1. Cardiology & Cardiovascular Imaging

• Transthoracic Echocardiography (TTE) – Provides high-resolution imaging of cardiac chambers, valves, and myocardial function with PureWave technology.
• Transesophageal Echocardiography (TEE) – Features Live 3D/4D imaging for detailed intraoperative and diagnostic cardiac assessments.
• Stress Echocardiography – Supports automated stress echo protocols for evaluating ischemic heart disease and myocardial viability.
• Pediatric & Neonatal Cardiology – High-frequency transducers enable detailed cardiac assessments in infants and children.
• Doppler Quantification – Includes Tissue Doppler Imaging (TDI), Pulsed Wave (PW), and Continuous Wave (CW) Doppler for assessing blood flow and heart function.

2. Vascular Imaging

• Carotid and Peripheral Artery Scanning – Detects stenosis, plaques, and vascular abnormalities with high Doppler sensitivity.
• Deep Vein Thrombosis (DVT) & Venous Insufficiency Studies – Provides real-time Doppler flow analysis for venous conditions.
• Intima-Media Thickness (IMT) Measurement – Assesses early signs of atherosclerosis and vascular disease progression.
• MicroVascular Imaging (MVI) – Enhances visualization of low-flow and small-vessel perfusion, improving vascular assessments.

3. Abdominal & General Imaging

• Liver, Gallbladder, & Kidney Evaluations – Offers deep penetration for hepatobiliary, renal, and pancreatic imaging, aiding in tumor detection, cirrhosis assessment, and stone identification.
• Contrast-Enhanced Ultrasound (CEUS) – Provides superior visualization of liver lesions, tumors, and microvascular abnormalities.
• FAST Exam (Focused Assessment with Sonography for Trauma) – Essential for detecting internal bleeding in trauma cases.

4. Point-of-Care & Emergency Medicine

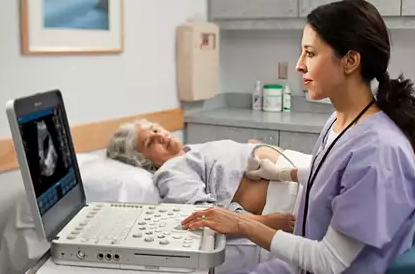

• ICU & Critical Care Imaging – Portable design allows bedside ultrasound for real-time patient monitoring.
• Emergency & Trauma Assessments – Rapid evaluation of cardiac tamponade, pericardial effusion, and pneumothorax.
• Lung & Pleural Ultrasound – Detects pleural effusion, lung consolidation, and interstitial syndromes in critically ill patients.
• Regional Anesthesia & Nerve Blocks – Linear transducers enhance needle guidance for precise anesthetic delivery.

5. Obstetrics & Gynecology (OB/GYN)

• Fetal Echocardiography – Assesses congenital heart defects and fetal heart function with high-resolution imaging.
• Gynecological Assessments – Endovaginal probes provide detailed imaging of ovarian follicles, endometrial lining, and uterine abnormalities.
• Postpartum & Pelvic Imaging – Identifies fibroids, cysts, and reproductive health conditions.

6. Musculoskeletal (MSK) & Small Parts Imaging

• Tendon, Joint, and Soft Tissue Scanning – High-frequency linear probes provide detailed musculoskeletal imaging for injuries and degenerative conditions.
• Thyroid & Breast Imaging – Enables early detection of nodules, tumors, and cysts in superficial structures.

7. Interventional & Surgical Applications

• Operating Room (OR) & Interventional Suites – Portable ultrasound supports intraoperative imaging for precise procedural guidance.
• Biopsy & Needle Guidance – Optimized for vascular access, fluid drainage, and targeted injections.
• Minimally Invasive Procedures – Enhances visualization during laparoscopic and percutaneous interventions.

8. Neonatal & Pediatric Imaging

• Neonatal Head Ultrasound – Provides detailed imaging of the neonatal brain, aiding in the detection of hydrocephalus and hemorrhages.
• Pediatric Abdominal & Cardiac Imaging – High-resolution probes ensure accurate diagnosis in smaller patients.

Frequently Asked Questions

What makes the Philips CX50 different from other portable ultrasound systems?

The Philips CX50 CompactXtreme combines premium cart-based ultrasound performance in a highly portable design. It features PureWave crystal technology for superior image clarity, digital broadband beamforming for enhanced signal processing, and Live 3D TEE for advanced cardiac imaging. Unlike many compact systems, the CX50 supports a full range of transducers, including cardiac, vascular, musculoskeletal, and interventional probes, making it a versatile solution for multiple specialties.

 Can the CX50 be used for advanced cardiac imaging?

Yes, the CX50 is optimized for cardiovascular applications, offering Transthoracic Echocardiography (TTE), Transesophageal Echocardiography (TEE), Stress Echocardiography, and advanced Doppler imaging. It includes Live 3D TEE capabilities with the X7-2t transducer, providing real-time volumetric imaging for detailed cardiac assessments. The system also supports Tissue Doppler, Strain Quantification, and MicroVascular Imaging (MVI) for in-depth cardiac function analysis.

 Is the Philips CX50 suitable for emergency and point-of-care imaging?

Absolutely. The CX50 is widely used in ICUs, emergency departments, and critical care settings due to its lightweight design, fast boot-up time, and advanced imaging capabilities. It supports rapid bedside assessments, trauma evaluations (FAST exam), lung ultrasound, and vascular access guidance. Its battery backup (40-60 minutes) allows clinicians to perform scans even in transport or mobile care environments.

What types of transducers are compatible with the CX50?

The CX50 supports a wide range of Philips transducers, covering applications in cardiology, vascular, OB/GYN, musculoskeletal, interventional, and neonatal imaging. Some of the key compatible transducers include:

• Curved Array: C5-1, C10-3v, C8-5, C9-3io (for abdominal, OB/GYN, and pediatric applications).
• Linear Array: L12-5/50, L10-4lap, L12-3, L15-7io (for vascular, small parts, and musculoskeletal imaging).
• Sector Array: S5-1, S8-3, S12-4 (for cardiac and pediatric cardiac imaging).
• TEE Probe: X7-2t (for advanced transesophageal echocardiography).

 How does the CX50 integrate with hospital systems and data networks?

The CX50 supports seamless connectivity with hospital networks through DICOM 3.0, HL7, and PACS integration. It offers both wired (Ethernet) and optional wireless connectivity, allowing clinicians to store, transfer, and retrieve patient data efficiently. The system also includes USB and DVD export options, making it easy to share imaging studies across different platforms.

Is the CX50 available as new, demo, or refurbished?

Yes, at Heart Medical, we offer the Philips CX50 in new, demo, and certified refurbished options. Our refurbished units undergo rigorous testing, calibration, and software updates to ensure they meet original manufacturer standards. Refurbished CX50 systems provide the same high-quality imaging performance at a fraction of the cost, making them an excellent choice for budget-conscious healthcare providers.
