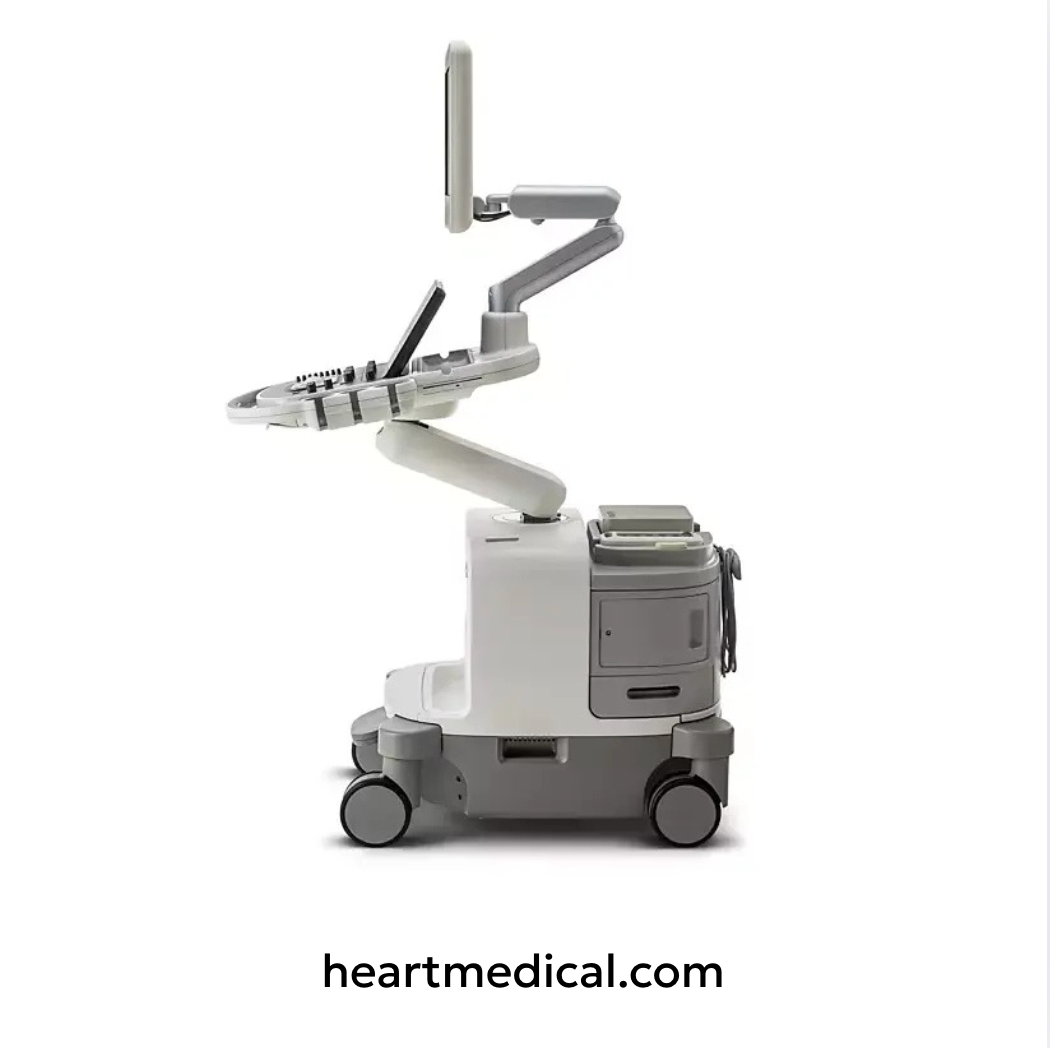

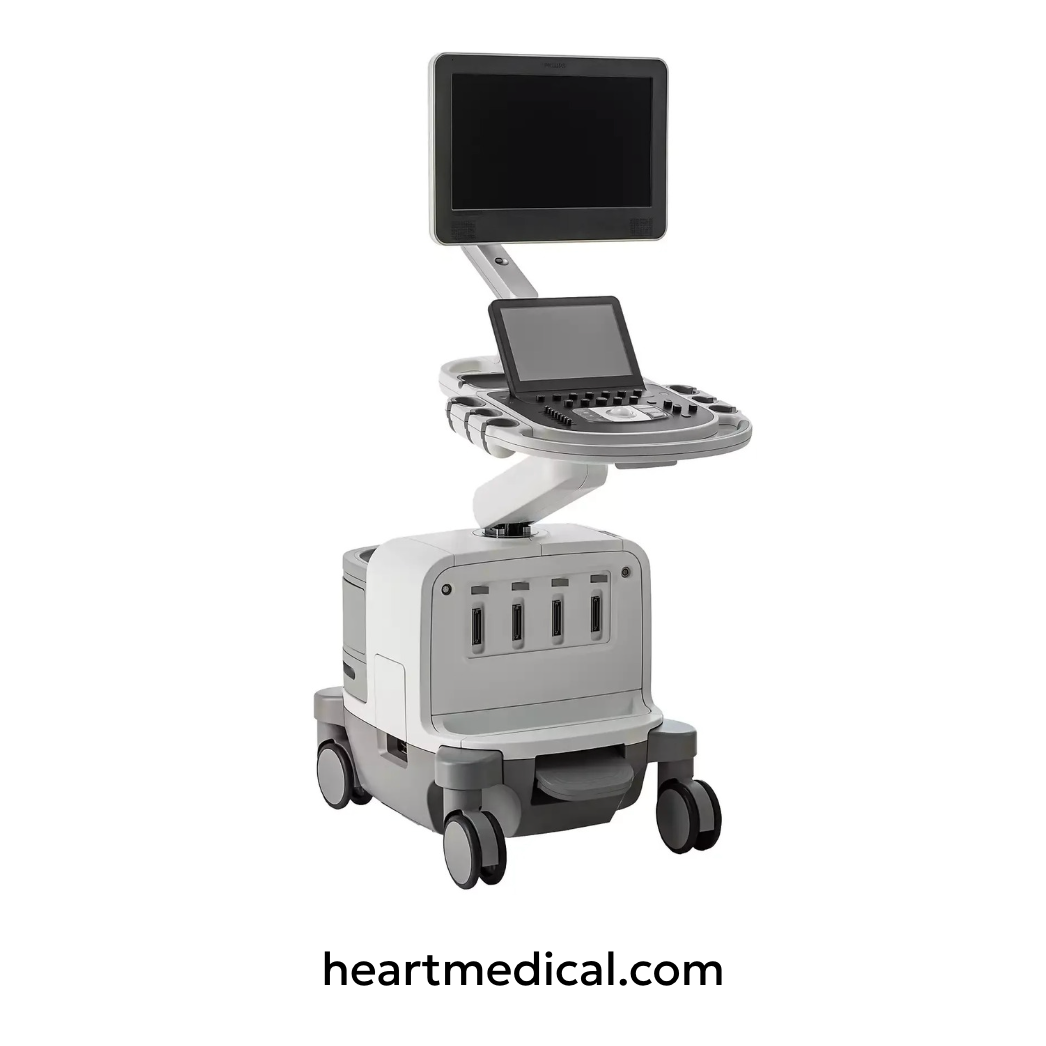

Philips Epiq 5 Ultrasound Machine

Important Availability Notice: Most products are non-stock and custom-ordered. Lead times for delivery will vary based on current factory production schedules. Please contact our sales team immediately to confirm current delivery estimates and system configuration.

Description

New, Demo and Refurbished Available

The Philips Epiq 5 is a state-of-the-art ultrasound machine that provides the best imaging quality and superior patient care. This premium shared machine offers PureWave single-crystal probes, anatomical intelligence, and cardiac motion quantification. It also includes a wide range of clinical applications and features to meet the needs of various medical specialties.

With its intuitive design and easy-to-use interface, Philips Epiq 5 ultrasound machine allows for efficient workflow and seamless integration into any healthcare setting. From general imaging to peripheral vascular and radiology exams, this machine delivers reliable results for accurate diagnosis. Serving California, Arizona, Nevada, and nationwide.

Key Features

• Anatomical Intelligence for Breast: Automatically adjusts to different breast tissue types and enhances visualization for accurate diagnosis.
• PureWave Single Crystal Probes: Offer exceptional image quality, penetration, and sensitivity.
• nSIGHT Imaging Technology: Provides uniformity in resolution and tissue differentiation for enhanced diagnostic confidence.
• Anatomical Intelligence for Pelvic Exams: Offers an automated protocol that optimizes the acquisition of transperineal images with minimal user interaction.
• MaxVue High Definition Display:  With 1,179,648 additional image pixels and 38% more viewing area, it provides a clear and detailed view of the anatomy.
• Ergonomic Design: This model features an adjustable monitor arm, a low keyboard height, and a floating touch panel for comfortable use during long scanning sessions.

Technical Specifications

• Display: MaxVue High Definition Display with 38% more viewing area
• Monitor Size: 21.5′ LCD Monitor
• Monitor Resolution: 1920×1080
• Imaging: 2D, 3D, and 4D
• AutoSCAN: Yes
• Tissue Doppler Imaging: Yes
• Active Probes: 4
• HDD Size: 1 TB
• Connectivity: DICOM Standard Connectivity
• USB Ports: 4
• Imaging Modes: B-mode, M-mode, color Doppler, power Doppler, angio, PW Doppler Mode (includes high PRF), CW Doppler mode
• Power: 100-240V, 50/60 Hz

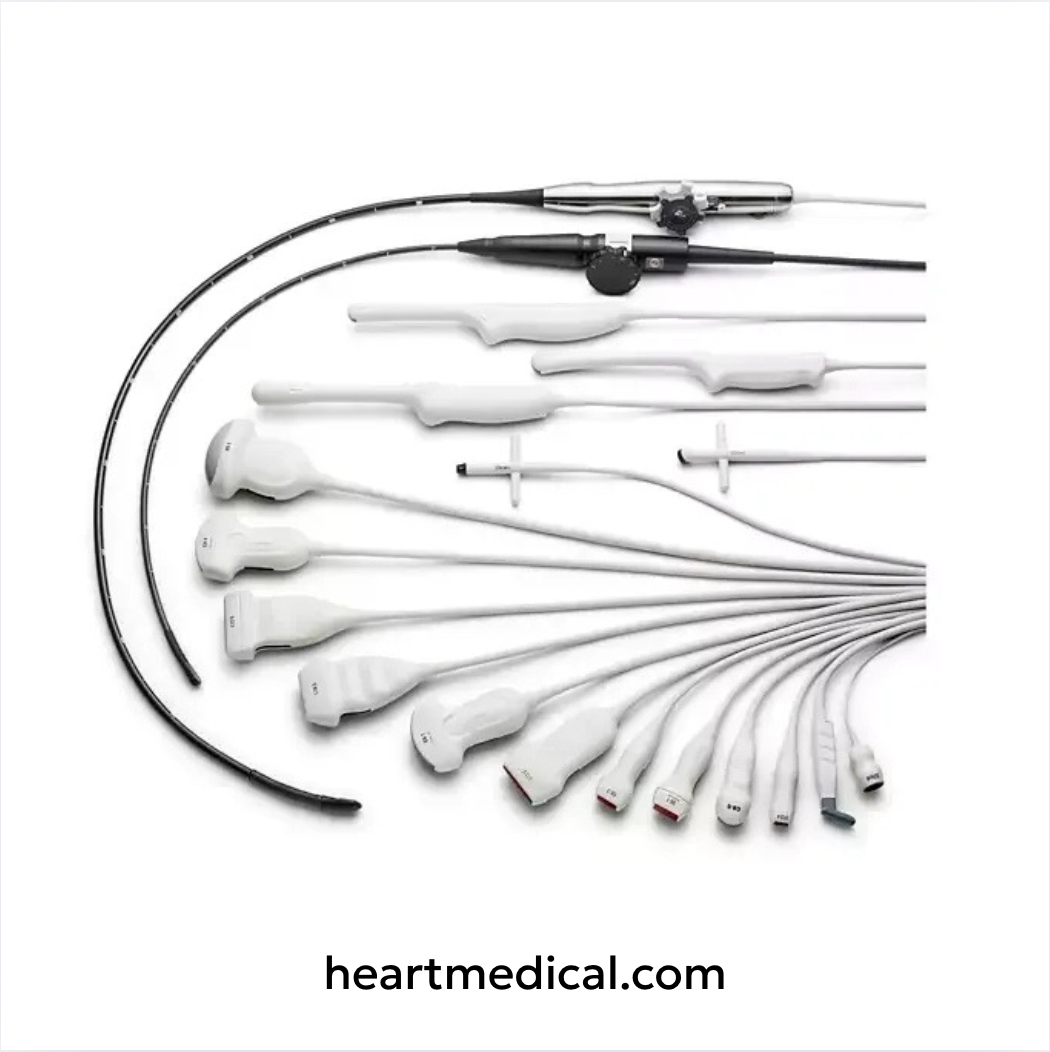

Probe Compatibility

The Philips EPIQ 5 ultrasound system supports a comprehensive range of transducers, enabling advanced imaging capabilities across various clinical applications.

Linear Array Probes

• L12-3: 3–12 MHz; suitable for vascular, small parts, and musculoskeletal imaging.
• L12-5: 5–12 MHz; designed for superficial, vascular, small parts, breast, and musculoskeletal imaging.
• L12-5 50mm: 5–12 MHz; offers a wider footprint for vascular and small parts applications.
• L15-7io: 7–15 MHz; intraoperative "hockey stick" probe for surgical applications.
• L18-5: 5–18 MHz; high-frequency probe for superficial imaging.
• eL18-4: 2–22 MHz; ultra-broadband linear array for small parts, breast, vascular, and musculoskeletal imaging.

Curved Array (Convex) Probes

• C5-1: 1–5 MHz; general-purpose abdominal imaging.
• C6-2: 2–6 MHz; abdominal and OB/GYN imaging.
• C8-5: 5–8 MHz; micro-convex probe for pediatric abdominal imaging.
• C9-2: 2–9 MHz; abdominal imaging with a smaller footprint.

Endocavitary Probes

• C9-4v: 4–9 MHz; endovaginal probe for OB/GYN applications.
• C10-3v: 3–10 MHz; endovaginal imaging.
• C10-4ec: 4–10 MHz; endocavitary imaging for OB/GYN.
• B10-5ec: 5–10 MHz; bi-plane endocavitary probe for urology and OB/GYN.

Volume (3D/4D) Probes

• V6-2: 2–6 MHz; 3D/4D curved array for abdominal and OB/GYN imaging.

• 3D9-3v: 3–9 MHz; 3D/4D endovaginal probe for OB/GYN applications.

• VL13-5: 5–13 MHz; volume linear array for small parts and vascular imaging.

Cardiac Sector Probes

• S4-2: 2–4 MHz; adult cardiac imaging.

• S5-1: 1–5 MHz; adult cardiac imaging with PureWave technology.

• S8-3: 3–8 MHz; pediatric cardiac imaging.

• S12-4: 4–12 MHz; neonatal cardiac imaging.

Transesophageal Echocardiography (TEE) Probes

• S7-3t: 3–7 MHz; pediatric transesophageal echocardiography (TEE).

• X7-2t: 2–7 MHz; adult xMATRIX TEE probe.

Pencil (CW Doppler) Probes

• D2cwc: 2 MHz; continuous wave Doppler for cardiac applications.

• D5cwc: 5 MHz; continuous wave Doppler for vascular applications.

• D2tcd: 2 MHz; transcranial Doppler for neurovascular assessments.

Applications

• Adult Cardiac/Pediatric Cardiac: Offers a comprehensive cardiac suite with advanced imaging capabilities for accurate diagnosis.

• Vascular: Provides high-quality images, including small vessels and deep abdominal structures.

• Obstetrics/Gynecology: Allows efficient pelvic exams with automated protocols and enhanced visualization.

• Radiology: Offers a wide range of clinical applications for accurate diagnosis and monitoring.

• Abdominal: Provides detailed imaging of abdominal structures, including the pancreas, liver, and spleen.

Frequently Asked Questions

Can the Philips Epiq 5 be used for cardiac exams?

Yes, the Philips Epiq 5 offers a comprehensive cardiac suite with advanced imaging capabilities for pediatric and adult patients.

How many active probes does the Philips Epiq 5 have?

The Philips Epiq 5 has four active probes available for use.

How much storage space does the Philips Epiq 5 have?

The Philips Epiq 5 has a 1TB hard drive, which provides ample space for storing images and patient data.

Is the Philips Epiq 5 easy to use?

Yes, the Philips Epiq 5 features an intuitive design and ergonomic features, making it easy to use during long scanning sessions. It also offers automated protocols and advanced imaging technologies for efficiency and accuracy.

As an ethical vendor, Heart Medical is your trusted partner and a proud official reseller of GE HealthCare medical equipment. We guarantee genuine, high-quality products to ensure the safety and efficiency of your medical practice. For detailed support or product validation, please contact our support team.
