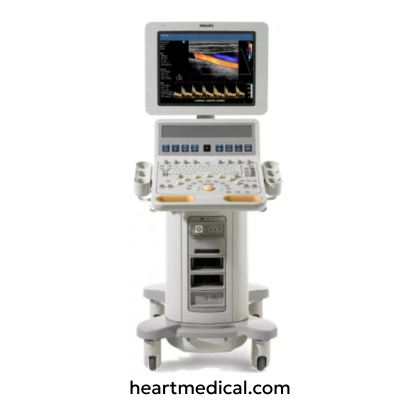

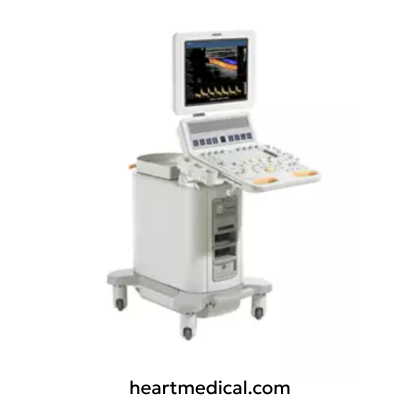

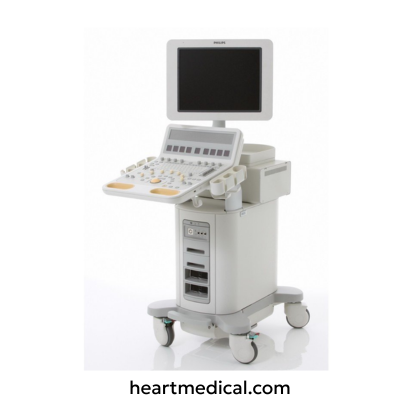

Philips HD15 Ultrasound Machine - 452296282501

Description

The Philips HD15 is a premium ultrasound system engineered to deliver exceptional image quality and performance across a broad spectrum of clinical applications. Utilizing advanced technologies such as PureWave crystal technology, SonoCT real-time compound imaging, and XRES adaptive image processing, the HD15 ensures precise and reliable diagnostic capabilities. Its user-centric design and efficient workflow features make it an ideal choice for healthcare providers managing diverse patient needs.

Key Features

• PureWave Crystal Technology: Enhances penetration and clarity, especially beneficial for technically challenging patients.
• SonoCT Real-Time Compound Imaging: Combines multiple lines of sight to produce clear, artifact-free images.
• XRES Adaptive Image Processing: Reduces speckle noise, resulting in images with exceptional clarity and edge definition.
• iSCAN Intelligent Optimization: One-button optimization adjusts multiple parameters for high-quality imaging in 2D, color, and Doppler modes.
• Versatile Clinical Applications: Supports general imaging, cardiac, vascular, obstetric, gynecological, and musculoskeletal examinations.

Technical Specifications

• Display: 20-inch high-resolution LCD monitor with swivel and tilt capabilities.
• Transducer Ports: Four active ports supporting a wide range of transducers.
• Imaging Modes: 2D, M-Mode, Color Doppler, Pulse Wave Doppler, Continuous Wave Doppler, 3D/4D imaging.
• Data Storage: 160 GB internal hard drive with options for external storage via USB and CD/DVD.
• Connectivity: DICOM compatibility for seamless integration with hospital information systems.

Probe Compatibility

The Philips HD15 ultrasound system supports a diverse range of transducers, enabling comprehensive imaging capabilities across various clinical applications.

1. Linear Array Probes

• L12-3: 3–12 MHz; suitable for vascular, small parts, and musculoskeletal imaging.
• L12-5: 5–12 MHz; designed for superficial, vascular, small parts, breast, and musculoskeletal imaging.
• L15-7io: 7–15 MHz; intraoperative "hockey stick" probe for surgical applications.
• L9-3: 3–9 MHz; linear array for small parts and vascular imaging.

2. Curved Array (Convex) Probes

• C5-1: 1–5 MHz; general-purpose abdominal imaging.
• C5-2: 2–5 MHz; abdominal, obstetrics, and gynecology imaging.
• C6-3: 3–6 MHz; abdominal, OB/GYN, pediatric, urology, and regional anesthesia applications.
• C8-5: 5–8 MHz; micro-convex probe for pediatric abdominal imaging.

3. Endocavitary Probes

• C8-4v: 4–8 MHz; endovaginal probe for OB/GYN applications.
• 3D9-3v: 3–9 MHz; 3D/4D endovaginal probe for OB/GYN applications.
• BP10-5ec: 5–10 MHz; bi-plane endocavitary probe for urology and OB/GYN.

4. Cardiac Sector Probes

• S4-2: 2–4 MHz; adult cardiac imaging.
• S5-2: 2–5 MHz; adult cardiac imaging with PureWave technology.
• S8-3: 3–8 MHz; pediatric cardiac imaging.
• S12-4: 4–12 MHz; neonatal cardiac imaging.
• S7-2t: 2–7 MHz; pediatric transesophageal echocardiography (TEE).

5. Pencil (CW Doppler) Probes

• D2cwc: 2 MHz; continuous wave Doppler for cardiac applications.
• D5cwc: 5 MHz; continuous wave Doppler for vascular applications.
• D2tcd: 2 MHz; transcranial Doppler for neurovascular assessments.

Applications

• General Imaging: Provides high-quality imaging for routine diagnostic procedures.
• Cardiology: Offers advanced cardiac imaging capabilities, including stress echo and tissue Doppler analysis.
• Obstetrics and Gynecology: Delivers clear fetal and pelvic imaging for comprehensive women's health assessments.
• Vascular Studies: Enables detailed evaluation of blood flow and vessel integrity.
• Musculoskeletal Imaging: Facilitates precise imaging of muscles, tendons, and joints for accurate diagnoses.

Frequently Asked Questions

What clinical applications does the Philips HD15 support?

The HD15 supports a variety of applications, including general imaging, cardiology, obstetrics, gynecology, vascular studies, and musculoskeletal imaging.

Does the HD15 utilize PureWave crystal technology?

The system incorporates PureWave crystal technology, enhancing image clarity and penetration, particularly in difficult-to-image patients.

Is the HD15 compatible with DICOM?

Yes, the HD15 is DICOM compatible, allowing for seamless integration with hospital information systems for efficient data management and sharing.

How many transducer ports are available on the HD15?

The system features four active transducer ports, accommodating a wide range of transducers for various clinical needs.

What is iSCAN Intelligent Optimization?

iSCAN is a one-button feature that automatically adjusts multiple imaging parameters to achieve optimal image quality in 2D, color, and Doppler modes.
